50L Jacketed Glass Reactor

Jacketed glass reactor is with double glass design, the reaction kettle placed with reaction menstruum can do the mixing reaction, and the interlayer can be added with different cold and heat sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction.
  • ModelLGR-50L
  • BrandLABOAO
  • StockIn Stock
  • CustomizedOEM/ODM
  • CertificationCE
  • Min. Order1 unit
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.


FEATURES

1. A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.

2. Wide range of temperature operations, from -60°C to 250°C.

3. Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

6. Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)

7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional.

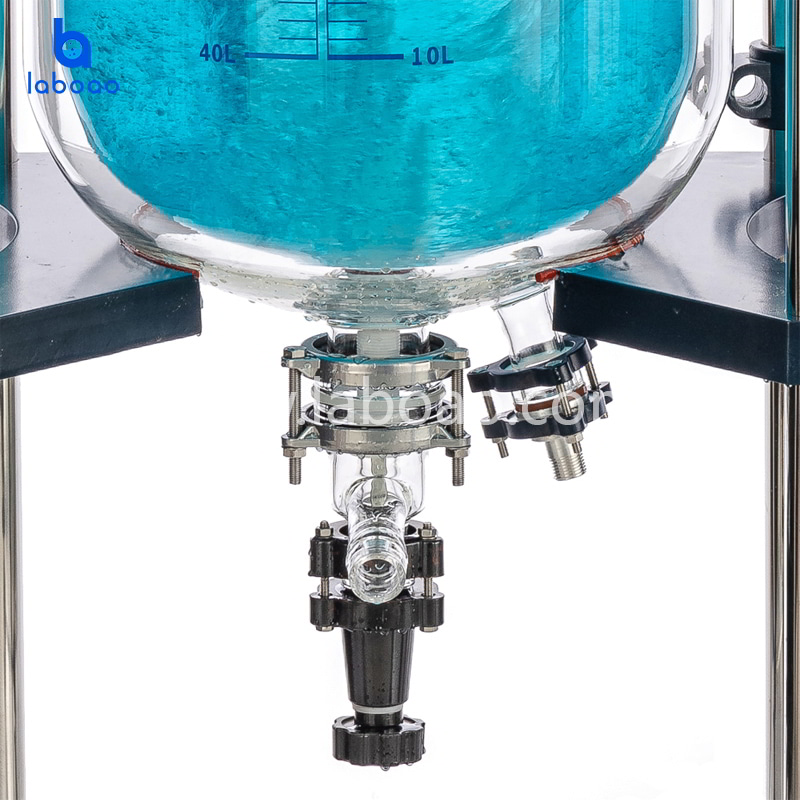

8. The bottom flange discharge port with a Teflon value, aluminum parts flange fixed.

SPECIFICATIONS

Model

LGR-50L

Kettle volume

50L inner   diameter 365mm, outer diameter 410mm, inner length 576mm

Jacketed volume

about 16L

Voltage/frequency

220V/50HZ

Stirring power

120W  1/3

Stirring speed

0-450r/min

Temperature   range vessel can bear

-80 to 250

Temperature accuracy

±1

Vacuum degree

0.098Mpa

Cover diameter

Φ265mm

6ports of cover

Stirring port

Φ50mm flange port

Condenser port

50# ball mill port

Constant   pressure funnel port

40# standard port

Relief port

34# standard port

Temperature   measure port

Φ45mm flange port

Solid feeding   port

Φ80mm flange portinner diameter Φ60mm matched with PTFE cover

Stirring  paddle

Φ17*1000H(mm), leafing 190mm

Condenser size

Φ100*700H(mm), down with Φ60mm flange port

Condensation   area

0.4

Reflux elbow

upper with Φ60mm flange portleft with 50# ball mill plug

Constant   pressure funnel

2L, upper with 29# standard port matched with glass plug,   down with 40# standard plug

Relief valve

34# standard plug valvevent nozzle (pagoda connector), outer diameter 12mm

In and out   circulation port of the sandwich

Φ45 flange port matched with ring flange, 4 points outside   the wire adapter

Baiting port

Φ75mm flanger portΦ33mm baiting portinclined discharging port, (pagoda connector)Φ34mmfrom floor 350mm

Vacuum suction   nozzle

padoga connector,outer diameter 12mm

In and out   circulation nozzle of condenser coil

padoga connector,outer diameter 15mm

Overall   dimension (W*L*H)

870*560*2270mm

Net weight

67kg

Packing   dimension

1690*615*880mm, 0.92m³

Packing weight

104kg


APPLICATION

  • Application of Jacketed Glass Reactor in Chemical Synthesis
    Chemical Synthesis
  • Application of Jacketed Glass Reactor in Pharmaceutical Production
    Pharmaceutical Production
  • Application of Jacketed Glass Reactor in Petrochemical Industry
    Petrochemical Industry
  • Application of Jacketed Glass Reactor in Material Science
    Material Science
  • Application of Jacketed Glass Reactor in Material Science
    Material Science
  • Application of Jacketed Glass Reactor in Food and Beverage Industry
    Food and Beverage Industry
  • Application of Jacketed Glass Reactor in Environmental Analysis
    Environmental Analysis
  • Application of Jacketed Glass Reactor in Academic Research
    Academic Research

WHY CHOOSE US

  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of jacketed glass reactor machine.
laboao certification

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

laboao customer cases

AFTER-SALE WARRANTY


Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
