10L TR Table Concentrator is mainly used for enrichment of large-volume sample or preparation (such as drug screening, hormone analysis, liquid phase, and mass spectrometry in the analysis of sample preparation). Working principle: the nitrogen into the heated surface of the sample and make the solvent t evaporate and separated rapidly, thereby reaching the sample enrichment purpose without oxygen
  • ModelLGR-10L
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

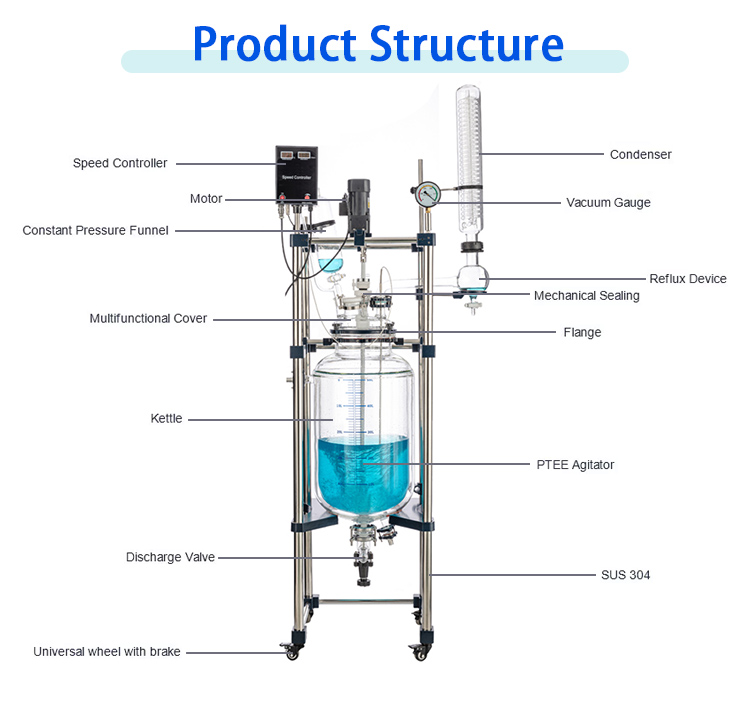

DESCRIPTION

Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.

FEATURES

1. A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.

2. Wide range of temperature operations, from -60°C to 250°C.

3. Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

6. Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)

7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional.

8. The bottom flange discharge port with a Teflon value, aluminum parts flange fixed.

SPECIFICATIONS

Model

LGR-10L

Kettle volume

10L inner diameter 230mm,outer diameter 290mm,inner length   354mm

Jacketed volume

about 8L

Voltage/frequency

220V/50HZ

Stirring power

90W  1/3

Stirring speed

0-450r/min

Temperature   range vessel can bear

-80 to 250

Temperature accuracy

±1

Vacuum degree

0.098Mpa

Cover diameter

Φ265mm

6ports of cover

Stirring port

Φ50mm flange   port

Condenser port

50# ball mill   port

Constant   pressure funnel port

40# standard   port

Relief port

34# standard   port

Temperature   measure port

Φ45mm flange   port

Solid feeding   port

Φ80mm flange   portinner diameter Φ60mm matched with PTFE   cover

Stirring  paddle

Φ17*700H(mm),  leafing 150mm

Condenser size

Φ100*600H(mm),   down with Φ60mm flange port

Condensation   area

0.4

Reflux elbow

upper with Φ60mm   flange portleft with 50# ball mill plug

Constant   pressure funnel

1L, upper with   29# standard port matched with glass plug, down with 40# standard plug

Relief valve

34# standard   plug valvevent nozzle (pagoda connector), outer   diameter 12mm

In and out   circulation port of the sandwich

Φ45 flange port   matched with ring flange, 4 points outside the wire adapter

Baiting port

Φ75mm flanger   portΦ33mm baiting portinclined discharging port, (pagoda connector)Φ34mmfrom floor 350mm

Vacuum suction   nozzle

padoga   connector,outer diameter 12mm

In and out   circulation nozzle of condenser coil

padoga   connector,outer diameter 15mm

Overall   dimension (W*L*H)

780*550*1870

Net weight

49kg

Packing   dimension

1390*530*810mm0.6m³

Packing weight

83kg
