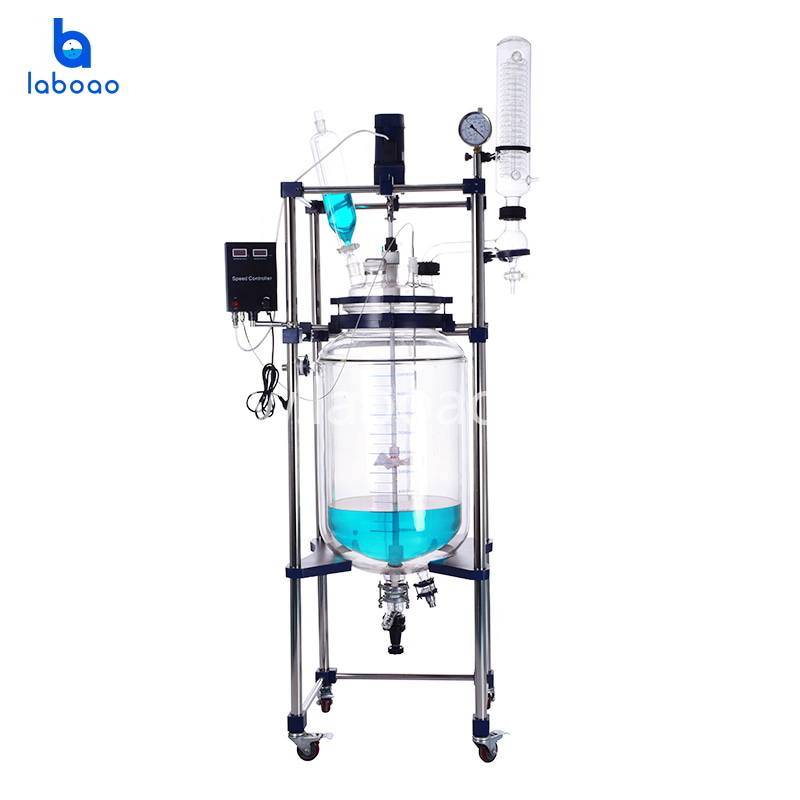

Jacketed glass reactor is with double glass design, the reaction kettle placed with reaction menstruum can do the mixing reaction, and the interlayer can be added with different cold and heat sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction.

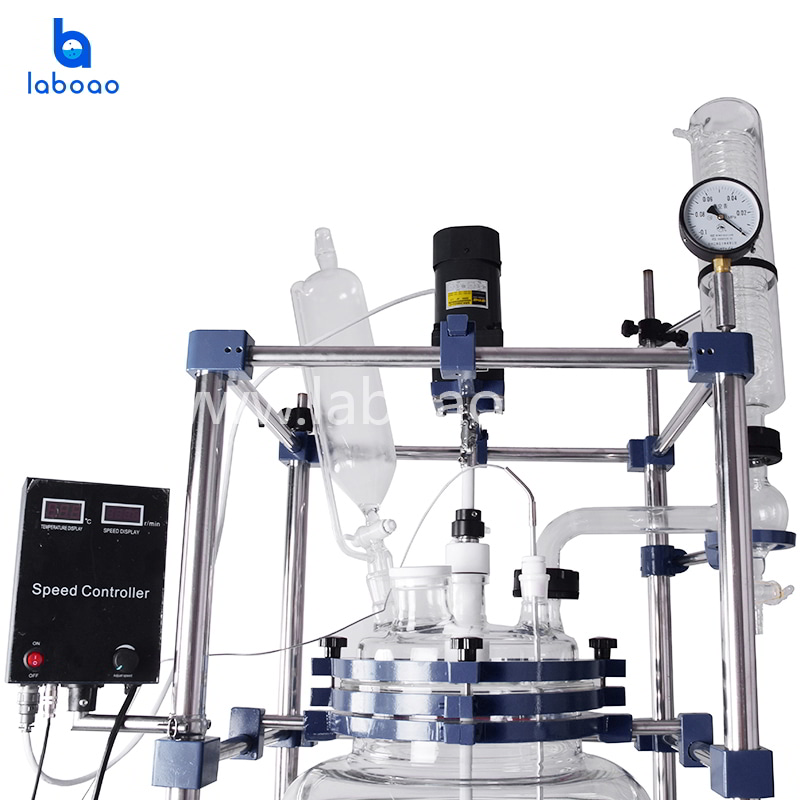

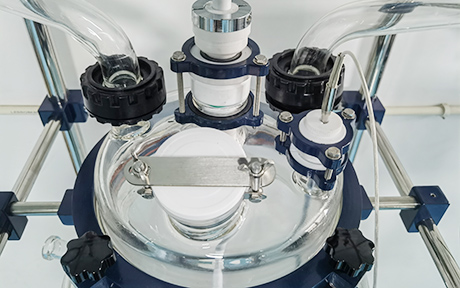

1. Total 6 ports on reaction cover, for motor, condenser, temeperature sensor, solid adding, air release, and funnel tank. PTFE sealing.

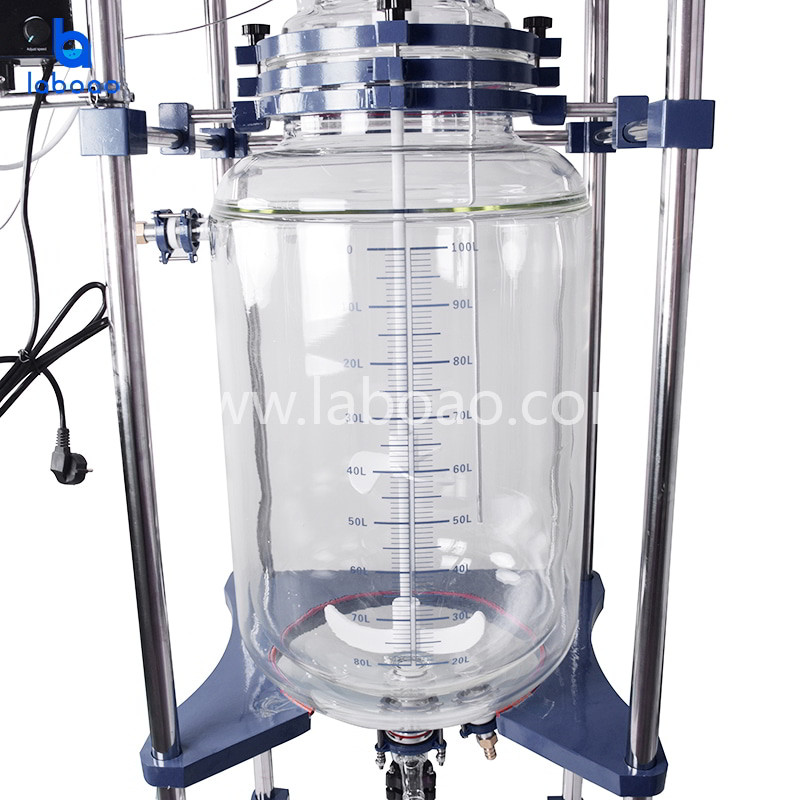

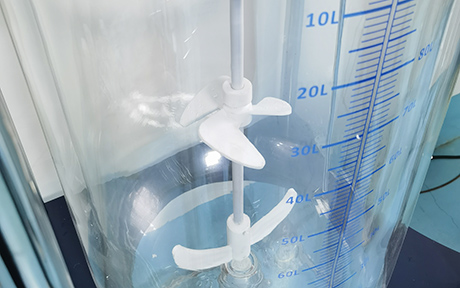

2. High borosilicate glass material, Double layer stirring anchor, PTFE material for anti-corrosion.

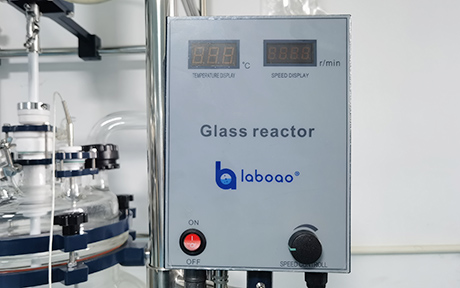

3. Speed controller, can adjust speed and display temperature.
4. Oil vacuum meter, anti-vibration during stirring; High efficient surface area condenser.

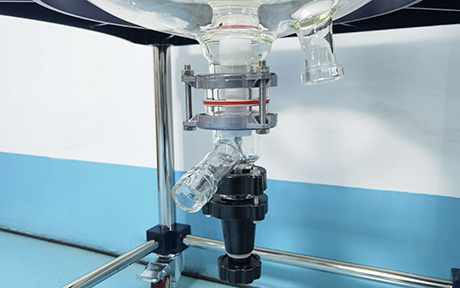

5. Discharge valve, easy to discharge materials. PTFE parts for anti-corrosion.

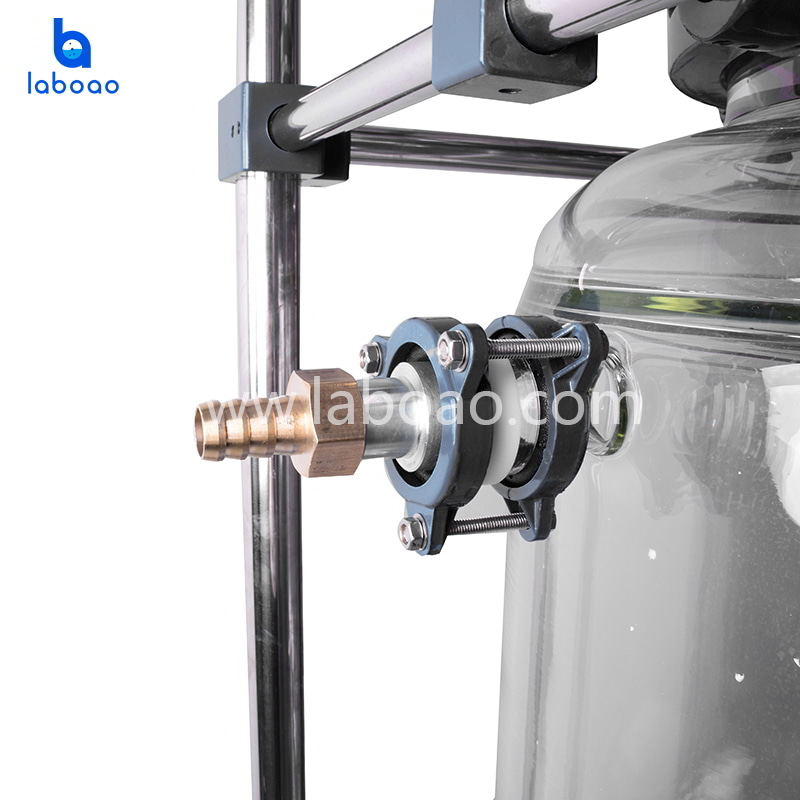

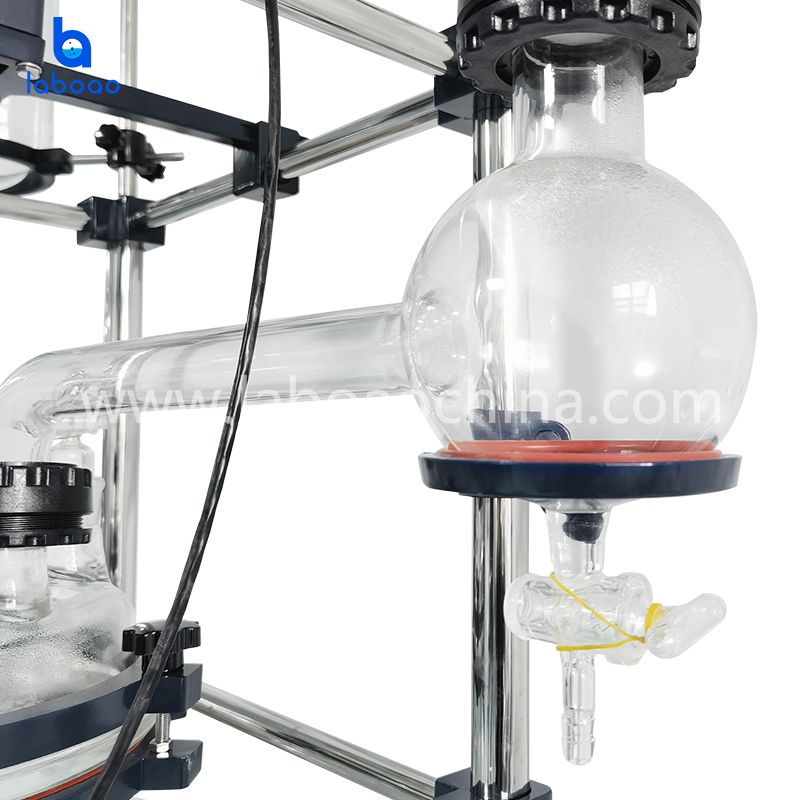

6. With two kinds quick flange clamp port, screw and inline port, can connect with different equipment.10L receiving flask, GG-17 high borosilicate glass.
Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.
1. A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.
2. Wide range of temperature operations, from -60°C to 250°C.
3. Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.
4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

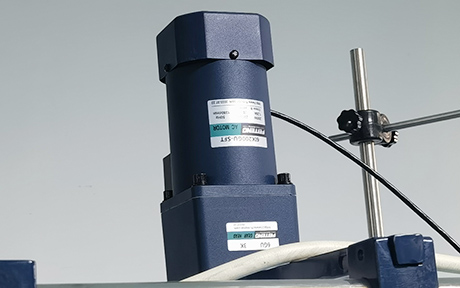

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6. Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional.
8. The bottom flange discharge port with a Teflon value, aluminum parts flange fixed.
15 years of experience in R&D and production of jacketed glass reactor machine.
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
