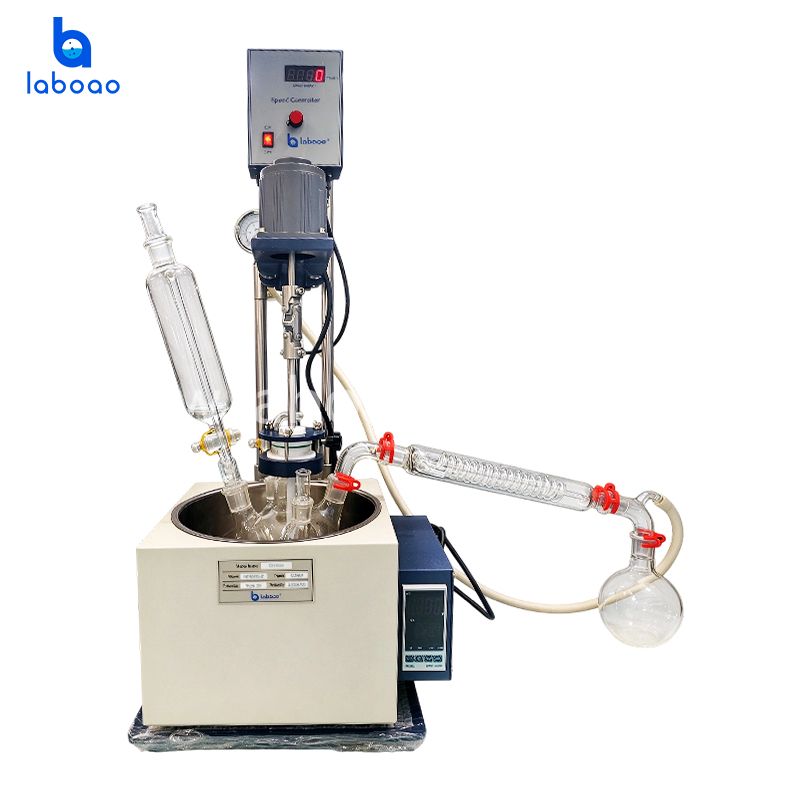

Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
  • BrandLABOAO
  • ModelLGR-2F
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

DESCRIPTION

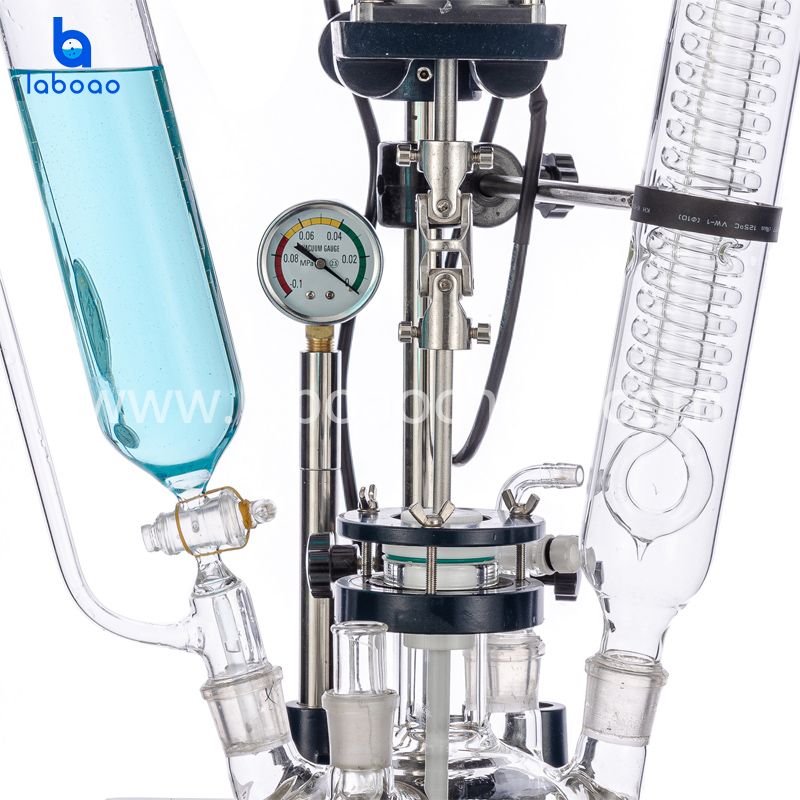

Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.

FEATURES

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;

2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;

3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;

4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;

5. Casters with brake fixed, it is convenient and reliable for mobile use;

6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;

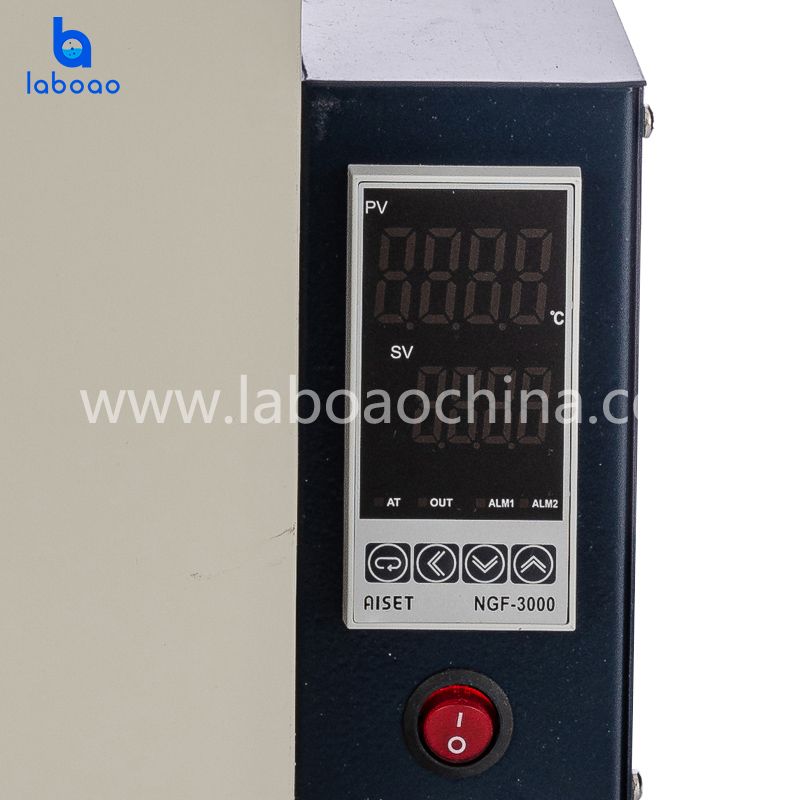

7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;

8. Integral structure is scientific design and beautiful appearance, convenient for operation;

9. Explosion-proof series available.

( We can add the cooling coil and an anti-explosion device according to user's needs).

SPECIFICATIONS

Basic specification

Name

Single layer glass reactor

Model

LGR-2F

Volume

2L

Glass material

GG-17

Frame material

Stainless steel

Port No. of reactor cover

                               4

Temperature range

-80 to 250 degree

Vacuum

0.098Mpa

Stirring speed

0-800pm

Stir rod diameter

8mm

Motor power

90W

Heating power

1.5KW

Voltage

220V/50Hz

Overall size (mm*mm*mm)

320*330*1000

Plate size (mm*mm*mm)

280*330

Inner size (mm*mm)

stainless steel    280*170mm

Package size (mm*mm*mm)

800*480*450

Gross weightKG

26

Configuration list

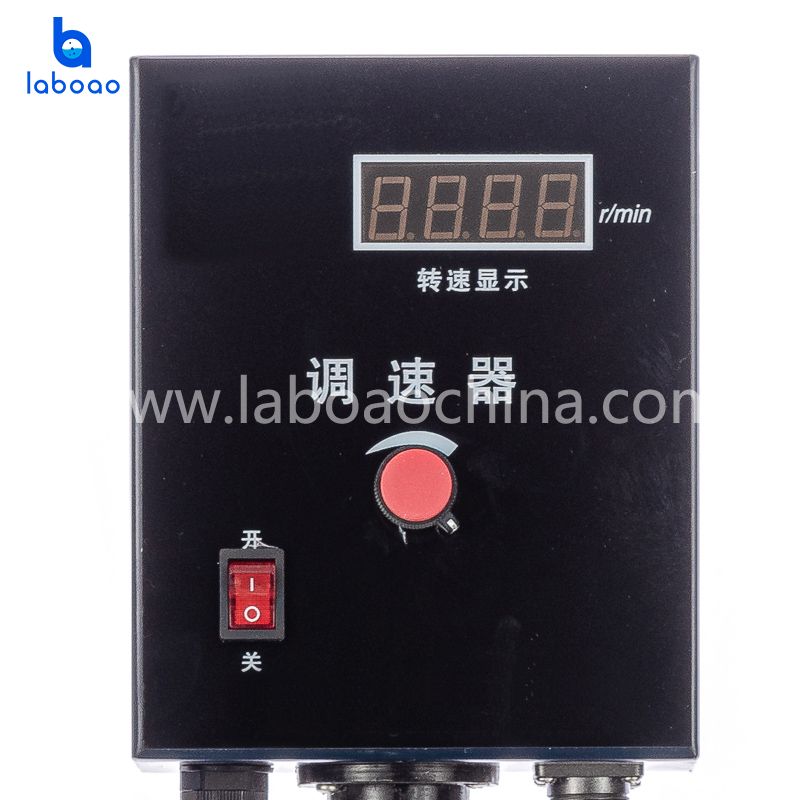

Speed control mode

Electronic stepless speed   regulation

Speed display mode

digital display

Pot temperature display mode

digital display

Seal mode

PTFE seal, 50 flange stir port

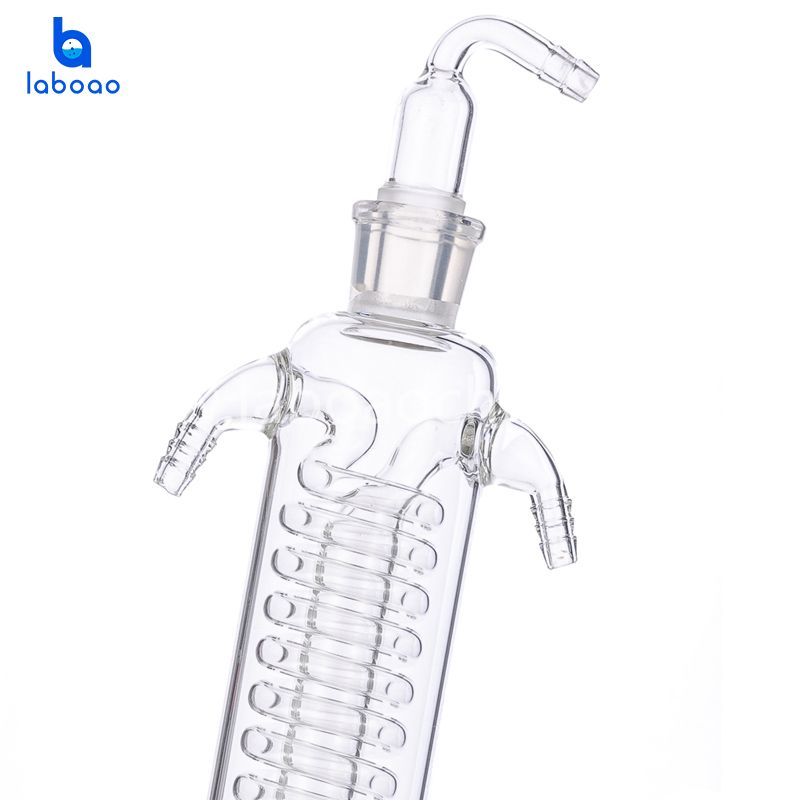

Condensor

Vertical 40*400mm standard 24#

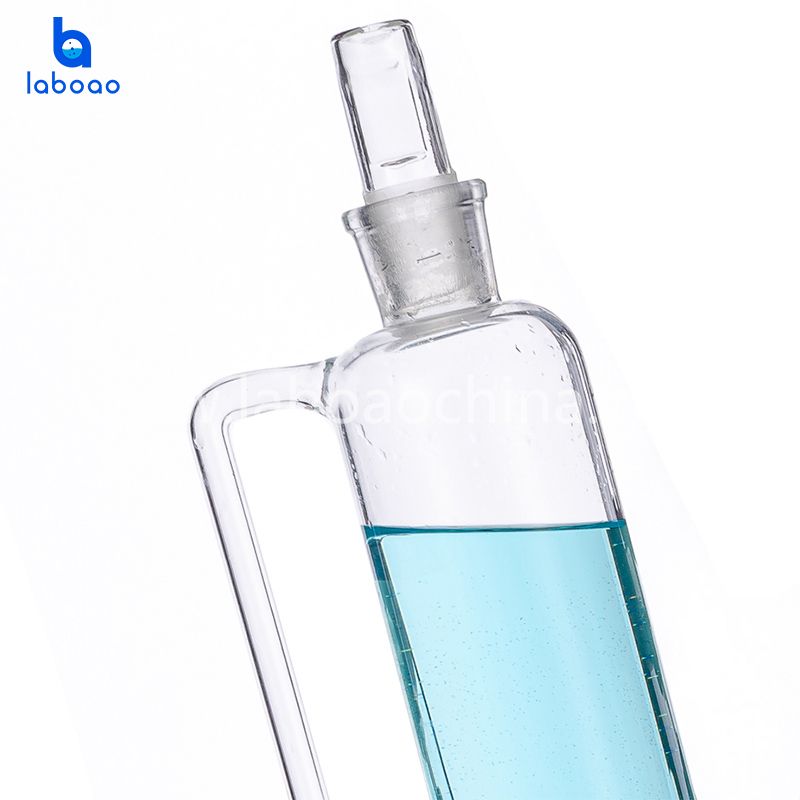

Droplet port

250mlconstant pressure funnel,   standard 24#

Temperature tube

standard 19#

Vacuum display mode

Vacuum gauge

Mixing connection

universal joint link

Stir rod

Anchor type, Stainless steel rod   with PTFE

Basic specification

Name

Single layer glass reactor
