Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.

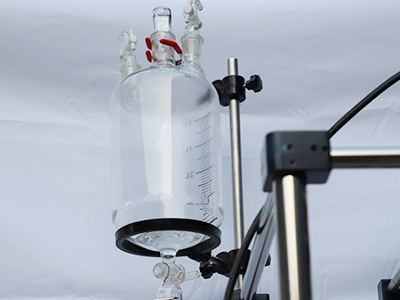

1. 5L volume feeding tank, with air release valve, can feed liquid continuously.

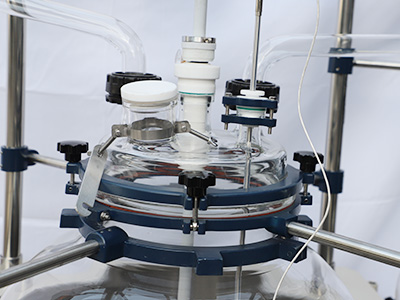

2. Total 6ports on reaction cap, stirring, temperature sensor, solid feeding, air release, liquid feeding, reflux.

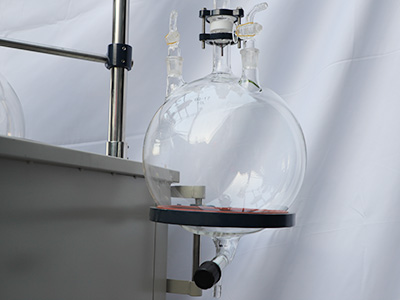

3. Receiving flask with 10L volume, with air release valve and discharge valve.
4. Max temperature can reach to 200°C of heating bath.

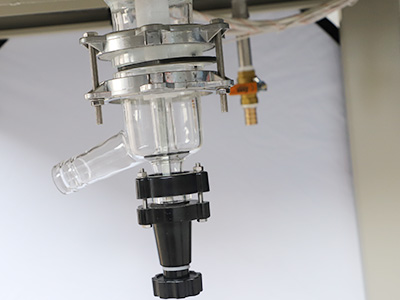

5. Discharge valve is glass material with PTFE sealing, which is anti-corrosion.

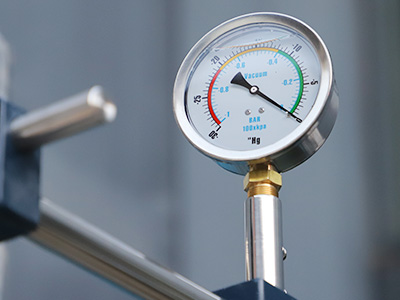

6. Oil vacuum meter, anti-vibration during stirring.
Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.
1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series available.
( We can add the cooling coil and an anti-explosion device according to user's needs)
Stirring 220V/50HZ, heating pot 380V/50HZ
Bath temperature range
room temperature to 180℃
6ports of the cover
Φ60mm flange port
Condenser reflux port
50# ball mill port
Constant pressure funnel port
50# ball mill port
34# standard port
Temperature measuring port
Φ45 flange port
Solid feeding port
Φ80mm flange port , inner diameter Φ60mm matched with PTFE cover
Φ20*1300H(mm), leafing 240mm
Φ160*600H(mm)，down with Φ60 flange port
upper with Φ60 flange port，left with 50# ball mill plug，right with 24# standard port , matched with functional valve
Adding dropwise bottle
5L tubular，upper with 29# standard port vent valve*2, 34# standard port matched with glass plug
10L，upper with 50# ball mill port，24# standard port vent valve*2, down matched with glass plug
34# standard plug valve，padoga connector,outer diameter 12mm
Φ80 flange port，Φ33mm baiting port，inclined discharged port (pagoda connector) Φ34mm, from floor 350mm
