30L Single Layer Glass Reactor

Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
  • ModelLGR-30F
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat



Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.



1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;

2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;

3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;

4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;

5. Casters with brake fixed, it is convenient and reliable for mobile use;

6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;

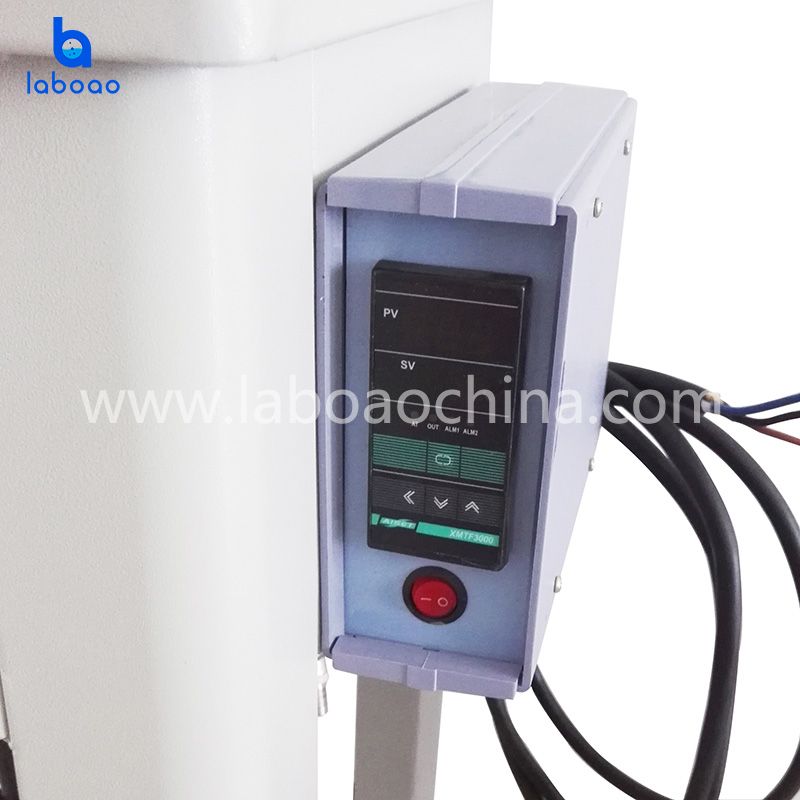

7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;

8. Integral structure is scientific design and beautiful appearance, convenient for operation;

9. Explosion-proof series available.

( We can add the cooling coil and an anti-explosion device according to user's needs)




Glass material


pot shell material

Spraying antiseptic shell   690*590*920mm

Inner port material

stainless steel     500*280mm

Moving mode

Brake type universal corner wheel


Ball type 30L

Port No. of reactor cover


Distance between discharge to floor


Temperature range

room temperature to 180℃



Stirring speed


Stir rod diameter


Stir power and voltage

120W1/3   220V/50Hz

Heating power and voltage

8KW      380V/50Hz

Overall size (mm*mm*mm)


Package size (mm*mm*mm)


Gross weightKG


Speed display mode

Electronic stepless speed   regulation


Low speed booster motor, speed   ratio 3: 1

Speed display mode

LCD digital display

Temperature display

digital display


PTFE seal, 70   flange stir port


Vertical high efficiency double   reflux condenser   120*640mm, standard 40#

Reflux (distillation) device

Return bend with feeding switch, 50# ball mill port

Drop adding device

2L Constant pressure funnel, 34standard

Pressure release device

standard 34# pressure release   valve

Temperature tube

standard 24#

Solid adding (cleaning) port

120   flange port with PTFE cover


glass discharge valve, 80   flange port

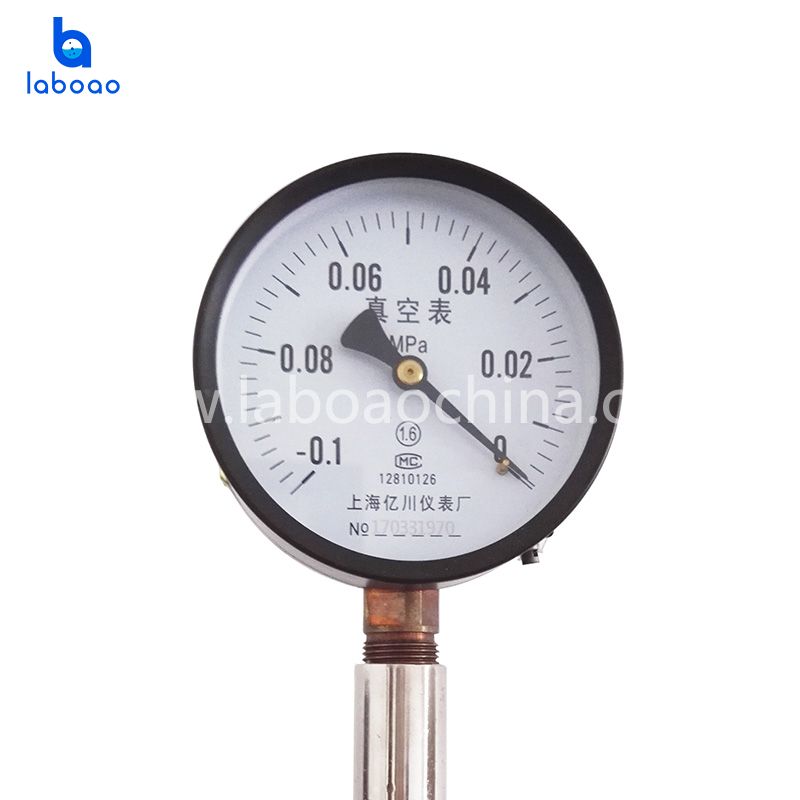

Vacuum display mode

Vacuum gauge

Mixing connection

universal joint link

Stir rod

Anchor type, Stainless steel rod   with PTFE
