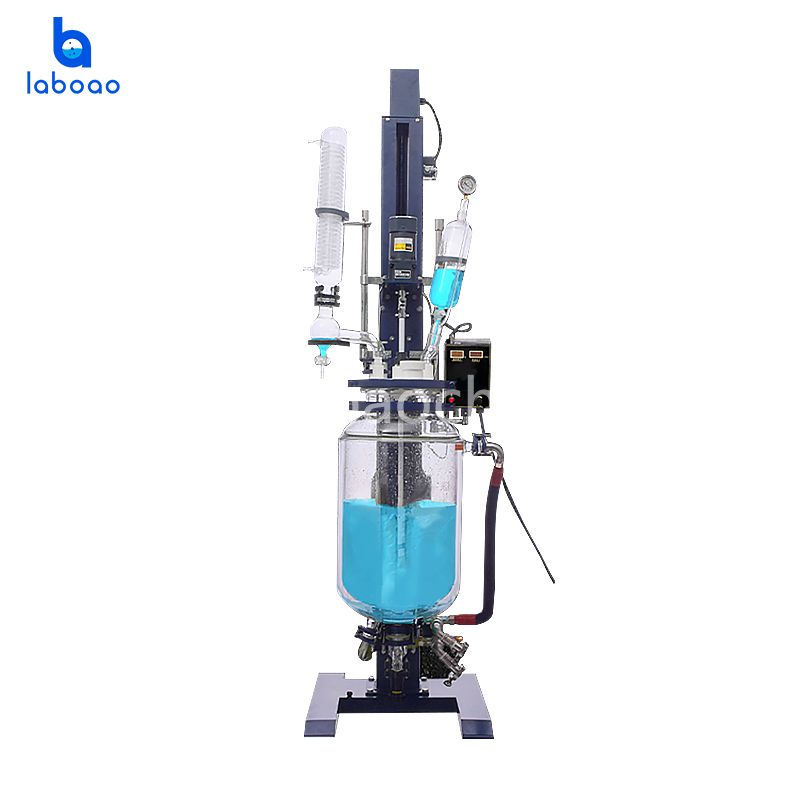

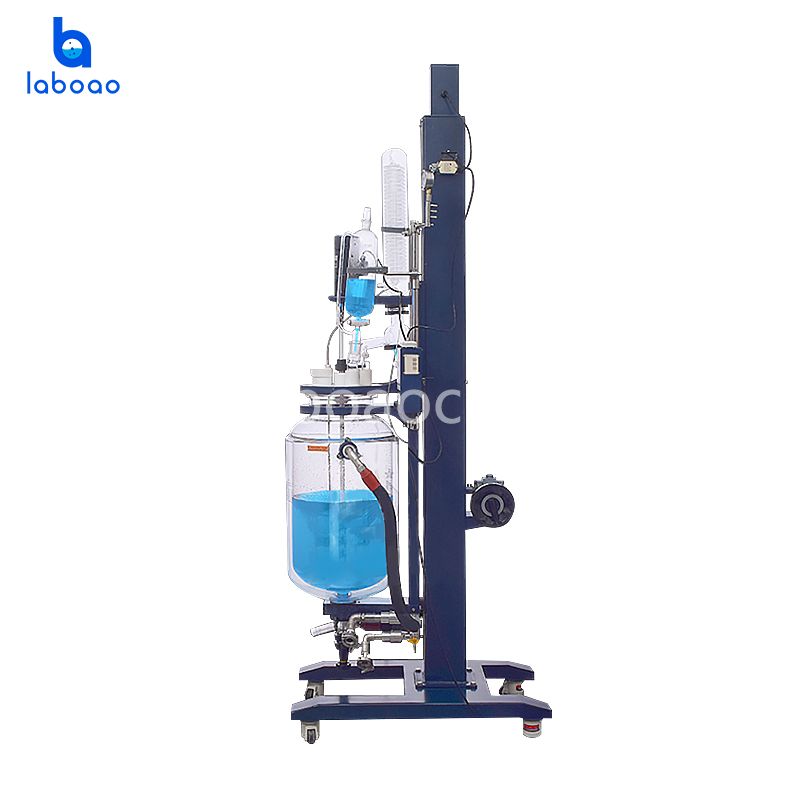

New Lifting And Rotating Double Layer Glass Reactor

Under the condition of vacuum and negative pressure, use the speed regulating knob to stir the stirring rod at a constant speed to make the materials react in the kettle body, and use the glass interlayer external heating or cooling device to indirectly heat or cool the materials in the kettle. The generated solvent vapor is rapidly cooled, distilled or refluxed after passing through the cooling coil of the glass condenser. After the reaction is completed, the material can be quickly discharged through the inclined discharge valve.
  • ModelLGR-10S/20S/30S/50S
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

VIDEO

DESCRIPTION

Glass reactor (device) series products are mainly used in the test and production of pharmaceutical, chemical, biological products and other industries. This product is under the condition of vacuum and negative pressure, using the principle of constant speed stirring to evenly stir the raw materials, so that the materials can react in the kettle body, the glass interlayer can be connected with high-temperature circulation equipment to heat, evaporate, separate, solvent recovery, etc. ;It can also be connected with external refrigeration cycle equipment for low-temperature reaction of the materials in the kettle; if there are two needs of heating and cooling during the material reaction process, an external high-low temperature cycle device can be connected. And all parts in contact with materials are made of high temperature and corrosion resistant borosilicate glass and polytetrafluoroethylene materials, which are especially suitable for the reaction of biological products that are easy to decompose and denature, and are not easy to produce chemical reactions with various materials.


FEATURES

1. The reactor body is made of borosilicate glass (GG-17), which has excellent physical and chemical properties, and the bottle is transparent and visible.

2. The main body is made of stainless steel frame + aluminum alloy, which is beautiful and strong and corrosion resistant.

3. Stainless steel stir bar is surrounded by PTFE, suitable for a variety of solvent agitation, pollution-free and corrosion-resistant.

4. The stirring motor and the lifting motor are all low-speed booster motors, which are stable in operation, large in torque, non-sparking and long in life.

5. PTFE components + mechanical seals, proprietary technology, good vacuum and long service life.

6. This product governor is the speed and temperature double digital display. The speed can be set by the speed control knob, which is intuitive and convenient. It is also equipped with a temperature probe (PT100) in the kettle (the temperature of the material in the kettle can be displayed).

7. The overall structure is compact and reasonable, with a brake universal wheel, which can be moved as a whole and is easy to operate.

8. There is no dead angle glass oblique discharge valve, which can effectively reduce the dead angle of mixing and convenient feeding.

9. This product is equipped with a vacuum display function, which can select the best working vacuum for high boiling point materials.

SPECIFICATIONS

Model

LGR-10S

LGR-20S

LGR-30S

LGR-50S

Kettle   capacity

10L inner diameter 230mm, outer   diameter 290mm, inner length 354mm

20L inner   diameter 290mm, outer diameter 330mm, inner length 386mm

30L inner   diameter 330mm, outer diameter 365mm, inner length 481mm

50L inner   diameter 365mm, outer diameter 410mm, inner length 576mm

Mezzanine   capacity

about 8L

about 7L

About 9L

About 16L

Voltage   frequency

220V/50Hz

Total power

130W

160W

160W

160W

Stirring   motor power

90W 1/3

120W 1/3

120W 1/3

120W 1/3

Lifting motor   power

40W 1/12.5

Stirring   speed

0-450rpm/min

Kettle body temperature range

-80+250

Temperature   measurement accuracy

±1

Vacuum

0.098Mpa

Kettle cover   Φ265mm; six ports (full PTFE cover)

Stirring   port

Φ50mm screw   port

Condensation   return port

50# ball   grinding port

Constant   pressure funnel mouth

40# standard   mouth

Pressure   relief port

34# standard   mouth

Temperature   measuring port

24# standard   mouth

Solid   feeding port

Φ80mm   threaded port, inner diameter 50#mm

Stirring   paddle

Φ17×700H(mm), leaf span 150mm

Φ17×750H(mm),   leaf span 190mm

Φ17×1000H(mm),   leaf span 190mm

Φ17×1000H(mm),   leaf span 190mm

Condenser

Φ100×600H(mm), lower Φ60 flange

Φ100×600H(mm),   lower Φ60 flange

Φ120×600H(mm),   lower Φ60 flange

Φ120×600H(mm),   lower Φ60 flange

Condensation   area

0.4

0.4

0.5

0.5

Return elbow

Upper Φ60 flange port, left 50# ball   mill plug

Constant   pressure funnel

1L, the upper 29# standard port is   equipped with a glass plug, the lower 40# standard plug; the lower part is   equipped with a 40# standard port × 40# standard plug S-shaped adapter and   the lid of the kettle

2L, the   upper 29# standard port is equipped with a glass plug, the lower 40# standard   plug; the lower part is equipped with a 40# standard port × 40# standard plug   S-type adapter and the lid of the kettle

Pressure   reducing valve

34# standard plug valve, air release   nozzle (pagoda joint), outer diameter 12mm

Mezzanine   entry and exit circulation port

Φ45mm flange port is equipped with 6-point buffer device, and the external interface is 4-point wire port

Discharge   port

Φ75mm flange, Φ33mm discharge hole,   oblique outlet (pagoda joint) Φ34mm, 300mm from the ground

Φ75mm   flange, Φ33mm discharge hole, oblique outlet (pagoda joint) Φ34mm, 300mm from   the ground

Φ75mm   flange, Φ33mm discharge hole, oblique outlet (pagoda joint) Φ34mm, 300mm from   the ground

Φ75mm   flange, Φ33mm discharge hole, oblique outlet (pagoda joint) Φ34mm, ground   clearance 290mm

Vacuum   nozzle

The outer diameter of the pagoda joint   is 12mm

Condensing   coil inlet and outlet circulation nozzle

The outer diameter of the pagoda joint   is 15mm

Host lifting   stroke

600mm (actually, the stirring rod is   50mm away from the upper opening of the kettle lid)

660mm   (actually, the stirring rod is 50mm away from the upper opening of the kettle   lid)

640mm   (actually, the stirring rod is 50mm away from the upper opening of the kettle   lid)

740mm (actually,   the stirring rod is 50mm away from the upper opening of the kettle lid)

Kettle   rotation

Rotate left 150°

The space   occupied by the whole machine (W×D×H)

700×850×(1820×2250 raised) mm

750×920×(1920×2400   raised) mm

750×950×(2150×2700   raised) mm

750×950×(2320×2950   raised) mm

Machine net   weight

120kg

130kg

142kg

148kg

Package Size

1870×600×1020mm, wooden box 1.15m³

/

2180×680×1080mm,   wooden box 1.6m³

2380×680×1080mm,   wooden box 1.75m³

Package   weight

170kg

185kg

205kg

225kg
