50L Jacketed Glass Reactor With Lifting And Rotation

Double-layer glass reactor is a commonly used biochemical instrument. It is widely used in modern fine chemical, bio-pharmaceutical, scientific research and other industries. It can be concentrated, distilled, refluxed, separated and purified under constant speed, constant force and constant temperature. The reaction is the ideal instrument for teaching, experiment, pilot test and production.
  • ModelLGR-50S
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat




The thermostated (high temperature or low temperature) hot solution or coolant is injected through a double-layer reactor sandwich, and the contents of the reactor are heated or cooled at a constant temperature, and uniform stirring can be provided. The material is reacted in the reaction kettle, and the evaporation and reflux reaction of the reaction solution can be controlled, and the kettle lid and the stirring system can be raised as a whole, and the kettle body is rotated by 150 degrees, and the relatively thick material can be directly poured out to facilitate the cleaning kettle. The liquid material can also be discharged from the discharge port of the bottom of the kettle, which is extremely convenient to operate. It is an ideal equipment for modern chemical samples, petrochemicals, sample experiments, biopharmaceuticals and new materials.



1. The reactor body is made of borosilicate glass (GG-17), which has excellent physical and chemical properties, and the bottle is transparent and visible.

2. The main body is made of stainless steel frame + aluminum alloy, which is beautiful and strong and corrosion resistant.

3. Stainless steel stir bar is surrounded by PTFE, suitable for a variety of solvent agitation, pollution-free and corrosion-resistant.

4. The stirring motor and the lifting motor are all low-speed booster motors, which are stable in operation, large in torque, non-sparking and long in life.

5. PTFE components + mechanical seals, proprietary technology, good vacuum and long service life.

6. This product governor is the speed and temperature double digital display. The speed can be set by the speed control knob, which is intuitive and convenient. It is also equipped with a temperature probe (PT100) in the kettle (the temperature of the material in the kettle can be displayed).

7. The overall structure is compact and reasonable, with a brake universal wheel, which can be moved as a whole and is easy to operate.

8. There is no dead angle glass oblique discharge valve, which can effectively reduce the dead angle of mixing and convenient feeding.

9. This product is equipped with a vacuum display function, which can select the best working vacuum for high boiling point materials.




Kettle volume

50L, inner   diameter 365mm, outer diameter 410mm, inner length 576mm

Sandwich volume

about 16L



Overall power


Stirring power

120W  1/3

Lifting power

40W  1/12.5

Stirring speed


Temperature   range vessel can bear

-80 to 250

Temperature   accuracy


Vacuum degree


Cover diameter


6port of cover

Stirring port

Φ50mm screw port

Condenser reflux   port

50# ball mill   port

Constant   pressure funnel port

40#standard port

Relief port

34#standard port

Temperature   measure port

Φ24mm flange   port

Solid feeding   port

Φ80mm screw portinner diameter Φ50mm

Stirring  paddle

Φ17*1000H(mm),   leafing 190mm

Condenser size

Φ120*600H(mm),   down with Φ60mm flange port

Condensation   area


Reflux elbow

upper with Φ60mm   flange portleft with 50# ball mill plug

Constant   pressure funnel

2L, upper with   29# standard port matched with glass plug, down with 40# standard plug, down   with 40#  standard port*40# standard   plug, S-shape adapter and connect with the cover

Relief valve

34# standard   plug valvevent nozzle (pagoda connector), outer   diameter 12mm

In and out   circulation port of the sandwich

Φ45 flange port   matched with 6 points buffer device, external for 4 points screw port

Baiting port

Φ75mm flange   portΦ33mm baiting portinclined discharging port(pagoda connector)Φ34mm from floor 290mm

Vacuum suction   nozzle

padoga   connector,outer diameter 12mm

In and out   circulation nozzle of condenser coil

padoga   connector,outer diameter 15mm

Lifting distance

740mm   (acturally, subject to the stirring rod is 50mm away from the top of cover )

Kettle rotation

Turn left 150°

Overall   dimension (W*L*H)

750*950*(2320-2950   after lifting)mm

Net weight


Packing   dimension


Packing weight



  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of lifting glass reactor machine.
laboao certification


We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory


Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping

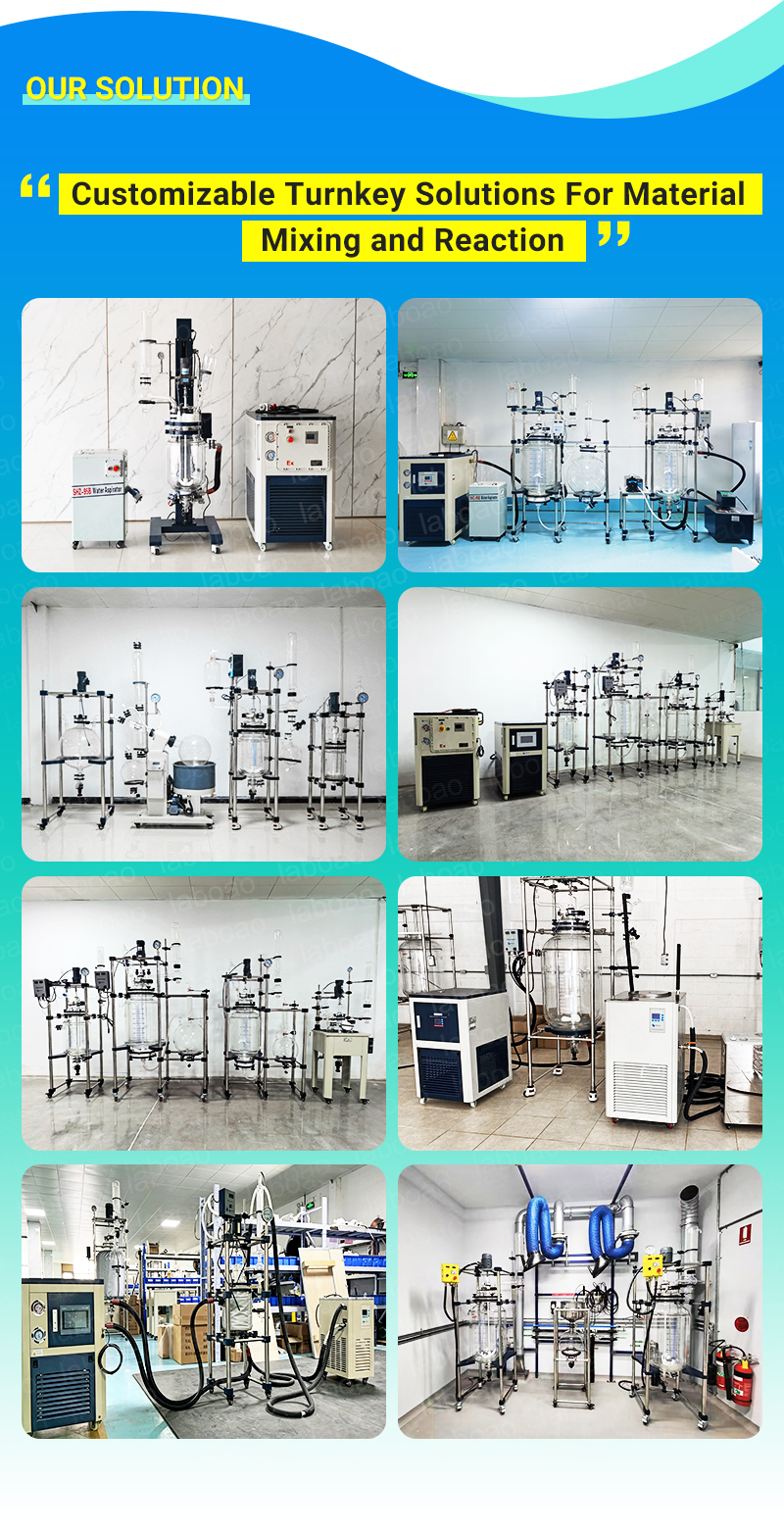

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
