Microcomputer Horizontal Steam Sterilizer Microcomputer Horizontal Steam Sterilizer Microcomputer Horizontal Steam Sterilizer Microcomputer Horizontal Steam Sterilizer
Microcomputer Horizontal Steam Sterilizer Microcomputer Horizontal Steam Sterilizer Microcomputer Horizontal Steam Sterilizer Microcomputer Horizontal Steam Sterilizer

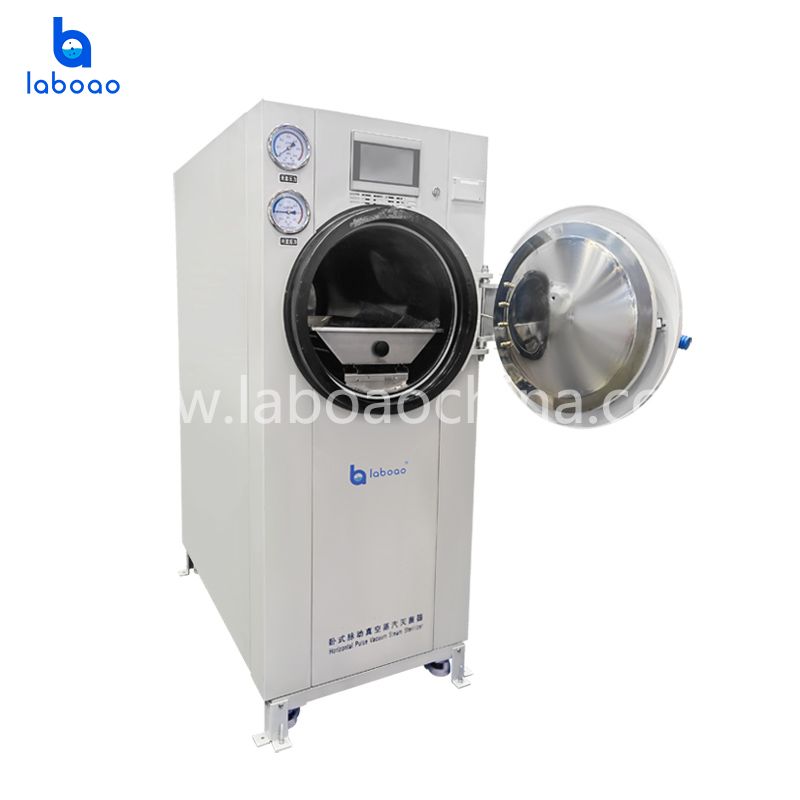

Microcomputer Horizontal Steam Sterilizer

High pressure steam sterilizer is mainly used to sterilize with the high pressure steam.
  • ModelL-150B/L-200B/L-280B
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

The horizontal pressure sterilizer adopts the gravity displacement method to exclude the cold air in the inner chamber, so that the inner chamber steam has less cold air content and the sterilization is more reliable. At the same time, during the sterilization process, the control system automatically adjusts the steam and steam according to the temperature of the inner chamber. It is mainly used in hospital supply rooms, operating rooms, pharmaceutical factories and research institute laboratories, etc., for the sterilization of medical and experimental cloth articles, surgical instruments and utensils.

FEATURES

1. The sterilization process is automatically controlled, without supervision and easy to use.

2. It has a drying function to achieve the drying effect of sterilized items.

3. With over-temperature and over-pressure automatic protection.

4. Safety interlocking device; steam cannot enter the inner body and overcurrent protection when the door is not closed; the power circuit breaker automatically cuts off the power when the current is overloaded.

5. The alarm indicates that when the pressure in the sterilization chamber is greater than 0.027 MPa, the door is interlocked and the door cannot be opened.

6. Overpressure protection, safety valve automatic pressure relief protection when the pressure exceeds the working pressure. Low water level protection device; water can not be activated when it reaches the high water level, and automatic power failure protection when the low water level is lacking.

7. Overcurrent protection; the power is automatically cut off when the current is overloaded.

8. With print function.

SPECIFICATIONS

Model

L-150B

L-200B

L-280B

Sterilizing chamber volume

150L

200L

280L

φ440×1000

φ515×1000

φ600×1000

Maximum working pressure

0.22Mpa

Maximum working temperature

134

Adjustment of temperature

40-134

Sterilizing time

0-99min

Drying time

0-99min

Heat average

≤±2

Power

9kw/380V 50Hz

9kw/380V 50Hz

12kw/380V 50Hz

Size(mm)

1400×650×1600

1400×750×1700

1520×910×1900

Packing sizemm

1560×820×1820

1560×910×1880

1680×1080×2100

Gross/ Net weight

430/340kg

436/350kg

570/462Kg

APPLICATION

  • Application of Horizontal Steam Sterilizer in Healthcare Facilities
    Healthcare Facilities
  • Application of Horizontal Steam Sterilizer in Pharmaceutical Biotechnology
    Pharmaceutical Biotechnology
  • Application of Horizontal Steam Sterilizer in Food Beverage Processing
    Food Beverage Processing
  • Application of Horizontal Steam Sterilizer in Scientific Research Institutions
    Scientific Research Institutions
