250℃ Explosion-proof Blast Drying Oven

2024 September Sale ends in

Explosion-proof blast drying oven can be used in petroleum, chemical, military, explosives, medical, pharmaceutical, scientific research, laboratories and other related fields. It can be used in dangerous places such as temperature group T2~T4, which is flammable and explosive.

ModelLEX-WG series
BrandLABOAO
PortAny port in China
PackagePlywood case package

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

DESCRIPTION

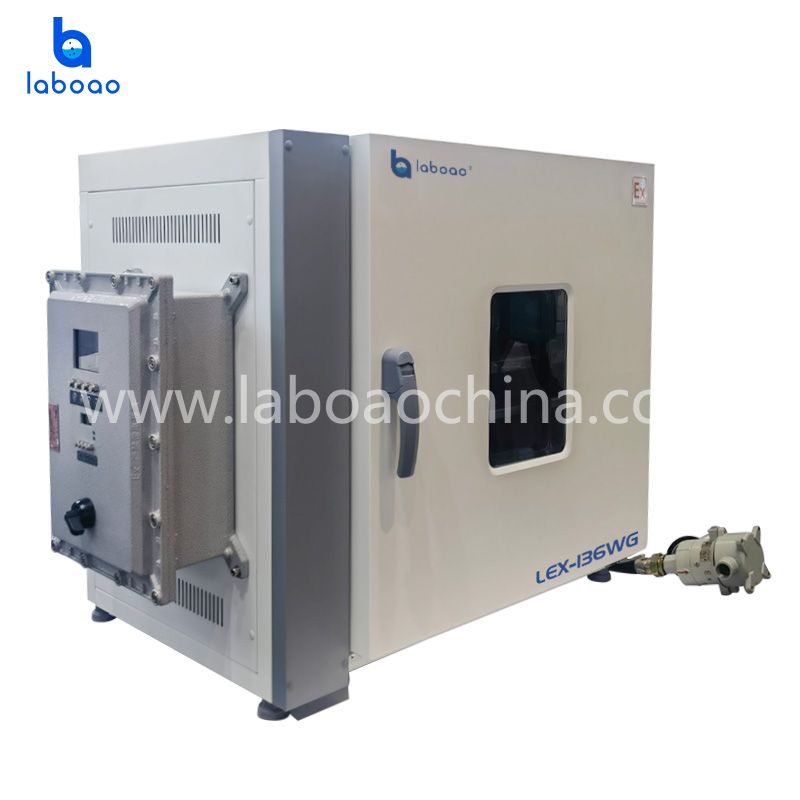

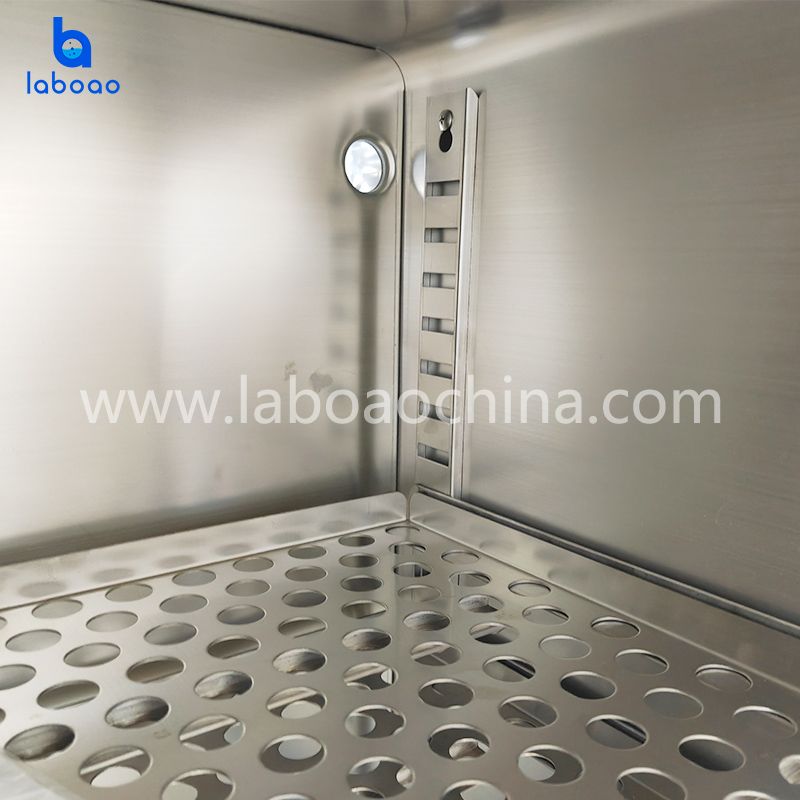

The shell of the explosion-proof blast drying oven is made of cold-rolled steel plate, the studio is made of mirror stainless steel plate, and silicon-aluminum fiber is used as insulation material. The interior of the working room is equipped with a grid-type stainless steel partition, on which the test product can be placed for testing. The vertical double-air duct air jacket, the turbine centrifugal forced air supply, the temperature is uniform, and the structure is reasonable, and the appearance is beautiful and generous.

FEATURES

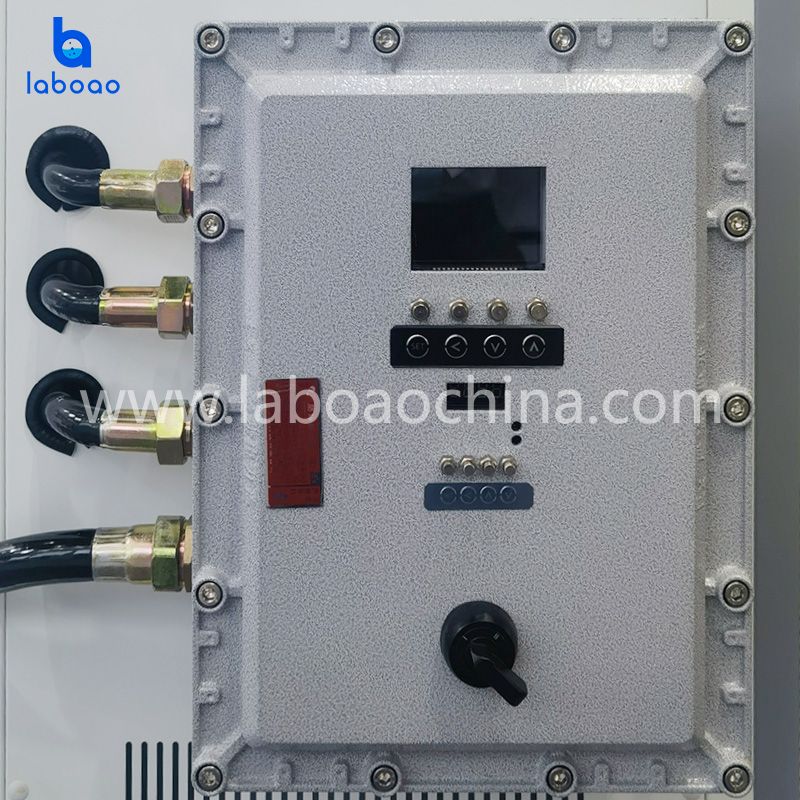

1. The cabinet adopts explosion-proof type, the equipment and electrical appliances adopt the overall explosion-proof technology, the explosion-proof control box, and centralized protection to prevent leakage of unsafe factors such as high temperature, static electricity, and sparks.

2. This equipment is mainly composed of drying box, explosion-proof heating system, explosion-proof electrical control and other parts

3. The inner tank of the box is made of mirror stainless steel, the outer shell is made of high-quality steel plate, which is beautiful and generous, and the inner tank is easy to clean

4. Side air channel air jacket, centrifugal forced air supply, uniform temperature.

5. Pull-out tray partition, convenient and quick sampling

6. LCD multi-data full-screen operation display, power failure memory, power failure compensation

7. Convenient operation, fixed value operation, timing operation, automatic stop, scheduled start

8. Use explosion-proof 304 stainless steel heating tube for heating.

9. The exposed connecting wires are all made of explosion-proof flexible connecting tube sets, which can isolate static sparks and temperature leakage and ensure safety

10. Explosion-proof grade: Ex d e mb IIB T4 Gb

SPECIFICATIONS

Model	LEX-43WG	LEX-71WG	LEX-136WG	LEX-225WG
Mode	Side air channel forced circulation.
Operating temp range	RT+10-250℃
Temp resolution	0.1°C
Temp fluctuation	±1℃
Temperature distribution accuracy	±2.5%
Interior	Stainless steel plate
Exterior	Cold-rolled steel plate with chemical-resistant coating on the surface
Insulation material	Aluminum silicate fiber
Heater	Stainless steel heating tube (explosion-proof qualification)
Power rating	1.2kw	1.6kw	2.0kw	4.0kw
Exhaust hole	Inner diameter 28mm*1, Top test hole.
Temp control method	LCD display dual column PID control
Tem setting method	Touch the explosion-proof four-button setting
Temp representation	Measured temperature display: LCD upper display; set temperature display; LCD lower display
Timer	0-9999 minutes (hours), timing function can be selected (no, constant temperature timing, running timing
Operation function	Fixed value operation, timing operation, automatic stop, scheduled start.
External connection line protection	Explosion-proof armored PT100 (explosion-proof qualification)
Sensor	Explosion-proof flexible connecting pipe set (explosion-proof qualification)
Additional features	Deviation correction, menu key lock, power failure memory, overheating preventer
Explosion-proof grade	Ex de mb IIB T4 Gb
Inner size(mm)	350350350	450350450	550450550	600500750
Outer dimensions(mm)	785530555	855530655	985625755	1015685995
Packing size(mm)	950642711	1040642811	1180745901	12208021156
Internal volume	43L	71L	136L	225L
Shelf load	15kg
Shelf number	9 floors	13 floors	17 floors	9 floors
Shelf space	25mm
Power supply (50/60Hz) rated current	AC220/5.5A	AC220/7.3A	AC220/9.1A	AC220/18.2A
Net weight/gross weight kg	34/53	46/70	66/92	81/110
Partition	2 pieces
Partition rack	4 pieces
Optional	Explosion-proof grille, explosion-proof hinge, explosion-proof pressure relief door, explosion-proof seven-inch touch screen instrument (with curve and program function), explosion-proof mouse

APPLICATION

Research and Development
Biotechnology Pharmaceutical
Food and Beverage Processing
Industrial Applications
Environmental Testing
Textile and Apparel Industry

WHY CHOOSE US

Factory direct sales with competitive price.
Premium quality with CE & ISO certification.
Strong product OEM & ODM customization capability.
Promise production & on-time delivery.
Perfect after-sales service, free product accessories.
15 years of experience in R&D and production of electric drying oven machine.

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
