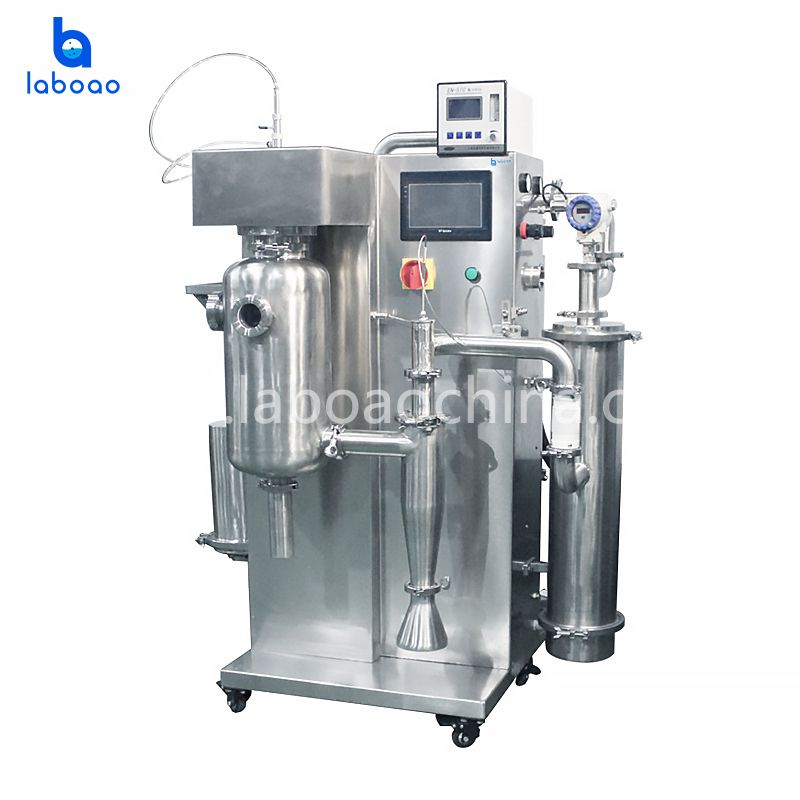

Pharmaceutical Explosion-proof Small Closed Spray Dryer

Pharmaceutical Explosion-proof Small Closed Spray Dryer

Small closed spray dryer, special for pharmaceuticals, explosion-proof grade, the device is especially for organic solvents, and the inert gas medium formed by circulating nitrogen is used to replace the usual air medium for spray drying. In addition to recovering products, organic solvents can also be recovered. This set of closed circulation spray system is specially designed for organic solvents with low flash point or slightly toxic characteristics, flammable and explosive characteristics.

ModelLBL-D1Z
BrandLABOAO
PortAny port in China
PackagePlywood case package

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

DESCRIPTION


FEATURES

1. Can prevent oxidation, avoid danger and improve quality;

2. It is composed of material design system, heating system, atomization system, spray drying system, inert gas circulation system, product recovery system and condensation system.

3. Using the innovative (ES-VER2018-1A) atomization system, this system adopts the hard contact of the mechanical structure, without any gasket, and without leakage. Different from ordinary electric centrifugal nozzles, the superheated corrosive steam contacts the wires of the electric nozzle for a long time under positive pressure, thereby corroding the wires, causing the plastic skin on the surface of the wires to corrode, soften and fall off, thus forming a short circuit.

4. It can achieve ultra-fine powder in the range of 1-8 microns, which is suitable for the preparation of battery materials.


SPECIFICATIONS

Model	LBL-D1Z
Ethanol evaporation	0.8Kg/h
Minimum feed amount	50ml
Atomization structure	Atomization system
Electronic control system	Special for closed loop atomization system
Inlet air temperature (Celsius)	140
Drying chamber diameter (mm)	￠300
Drying tower height (mm)	￠600
Explosion-proof disk diameter (mm)	65
heater capacity	2Kw
Induced fan [power (kw), air volume (m³/h)]	[1.5, 250]
Compressor [power (kw), air volume (L / min)]	[0.58, 108]
Chiller	50-60Hz (built-in cryogenic cooling circulation pump)
Electronic control main accessories standard (including PLC, analog module, touch screen) (optional)	Wecon control module (standard)
Selection criteria for electric control auxiliary accessories (including contactors, etc.) (optional)	Chint (Standard)
Parts in contact with the material (optional)	SUS304 (standard)
Exhaust gas reuse, saving energy by more than 30% (optional)	Not assembled (standard)
Atomizing nozzle (optional, diamond coating or not)	SUS304 (standard)
Equipment Warranty	1 year (standard, a certain maintenance fee will be charged for the above)
Electricity (installed capacity)	4Kw
Pulse bag filter	PTFE coating material,2pcs
Dimensions (mm) (L×W×H) Reference	1400×1000×1600
Installation weight (reference)	200Kg
Power supply	380V/-3￠ (Related voltages can be customized according to different national standards)
Notes	1: Ethanol evaporation is based on the inlet air temperature of 140°C; 2: If you need equipment with larger evaporation capacity, please inquire online or call our company
