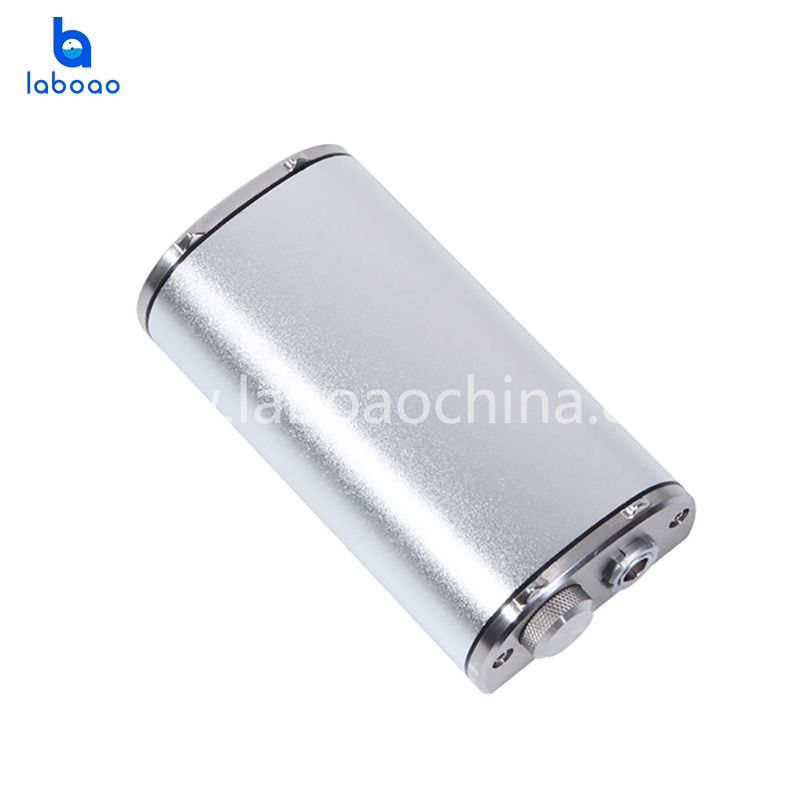

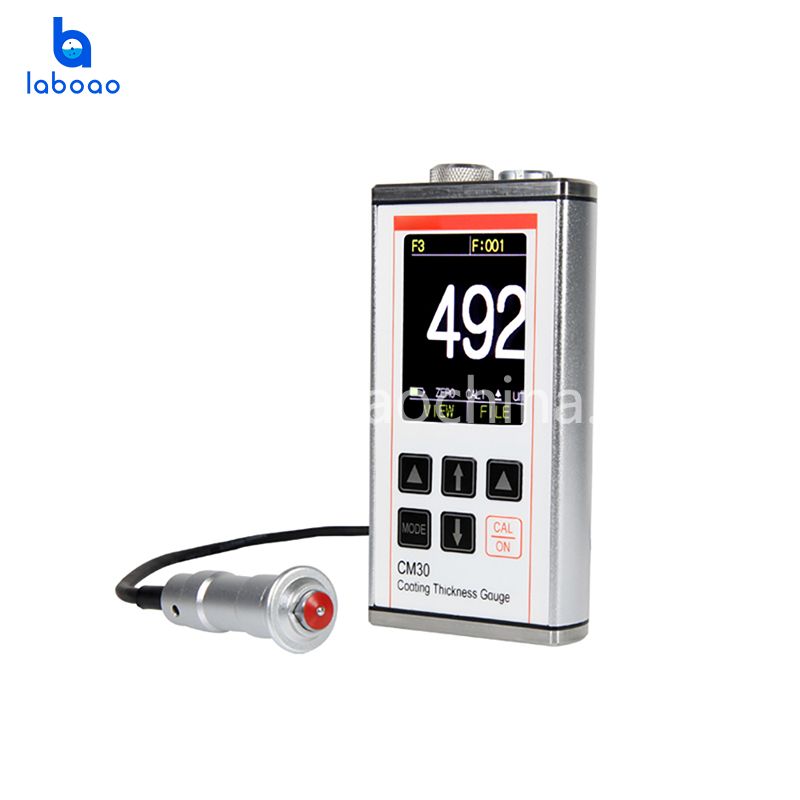

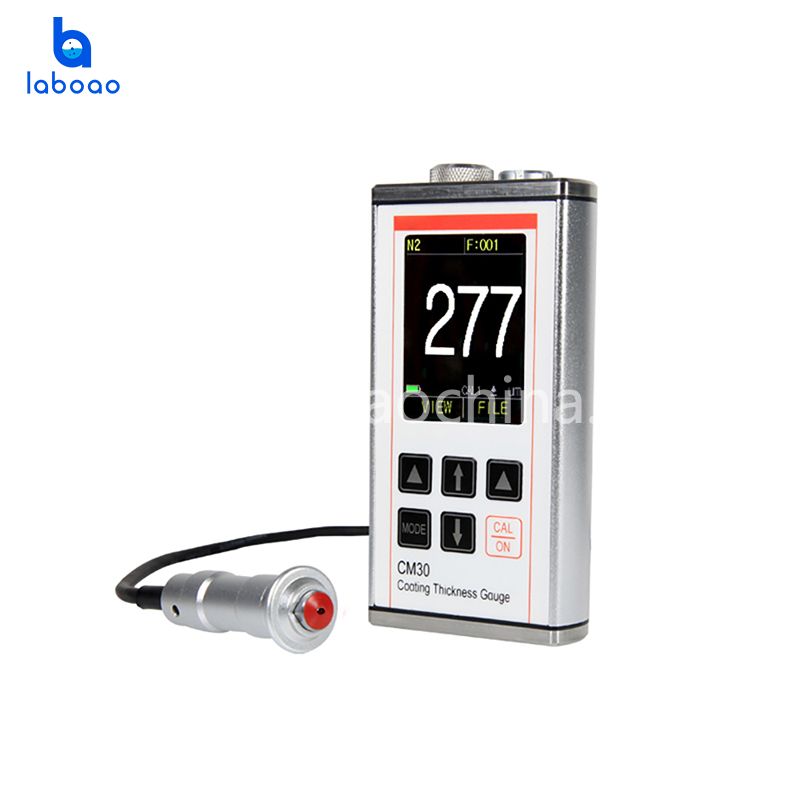

CM30 Series Coating Thickness Gauge

A coating thickness tester is a specialized instrument used for accurately measuring the thickness of surface coatings (such as paint, electroplating layers, etc.) on objects. It is primarily used in quality inspection and process control in fields such as automotive manufacturing, metal processing, aerospace, construction engineering, and industrial corrosion prevention.

ModelCM30 Serie
BrandLABOAO
PortAny port in China
PackagePlywood case package

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

DESCRIPTION

A coating thickness gauge is a specialized instrument used to accurately measure the thickness of surface coatings (such as paints, electroplating layers, and anti-corrosion layers) on materials. Using non-destructive testing techniques such as magnetic induction, eddy current, ultrasound, or optics, it quickly determines the thickness difference between the coating and the substrate, ensuring compliance with industrial standards and process requirements. This instrument is primarily used in fields such as automotive manufacturing, shipbuilding, aerospace, electronics, steel structure engineering, and industrial corrosion protection.

FEATURES

1. High Accuracy and High Resolution: Features micron-level or even higher measurement accuracy and resolution, ensuring accurate and reliable measurement results to meet the high standards of industrial quality control.

2. Multifunctional Measurement Capabilities: Can measure various coating types (such as paint, electroplating, galvanizing, anodizing, etc.) and supports multiple substrates (such as iron/steel and other magnetic metals, aluminum, copper, stainless steel, and other non-magnetic metals).

3. Intelligent Calibration and Automatic Recognition: Supports automatic zero-point calibration and multi-point calibration. Some high-end models can automatically identify the substrate and switch measurement modes, simplifying operation and reducing human error.

4. Data Storage and Statistical Functions: Built-in large-capacity memory can store thousands of sets of measurement data and perform basic statistical analysis (such as average value, maximum value, minimum value, standard deviation, etc.), facilitating quality traceability.

5. Portable Design and Durability: Typically features a compact, lightweight design, suitable for on-site use. The robust casing and wear-resistant probe ensure the instrument's durability in harsh industrial environments.

6. Diverse Display and Connectivity: Equipped with a backlit LCD screen for clear display of readings. Supports data export methods such as USB and Bluetooth, allowing connection to computers or printers for report generation and further analysis.

7. User-Friendly and Easy Operation: Intuitive menus and simple button or touchscreen design make it easy to use. The probe design is ergonomic, facilitating stable grip and measurement.

8. Dedicated Probes and Accessory Options: Offers a variety of probe options (such as integrated, separate, miniature probes, high-temperature probes, etc.) to adapt to different shapes (flat surfaces, curved surfaces, small pipes) and special environments (high-temperature workpieces).

Functions

Large Value Interface	Statistics Interface	Tendency Chart Interface

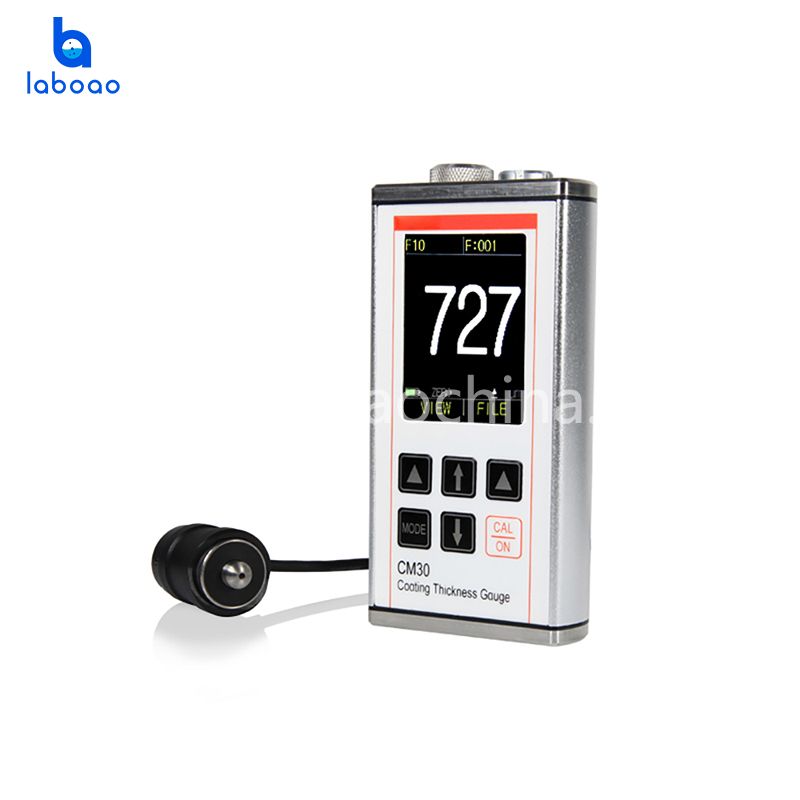

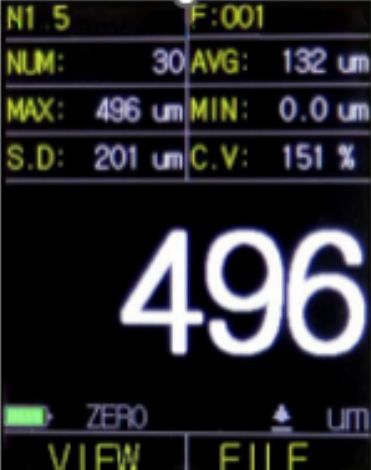

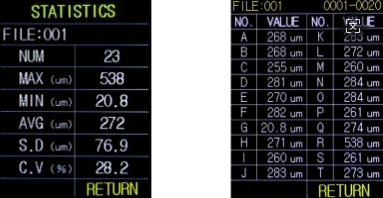

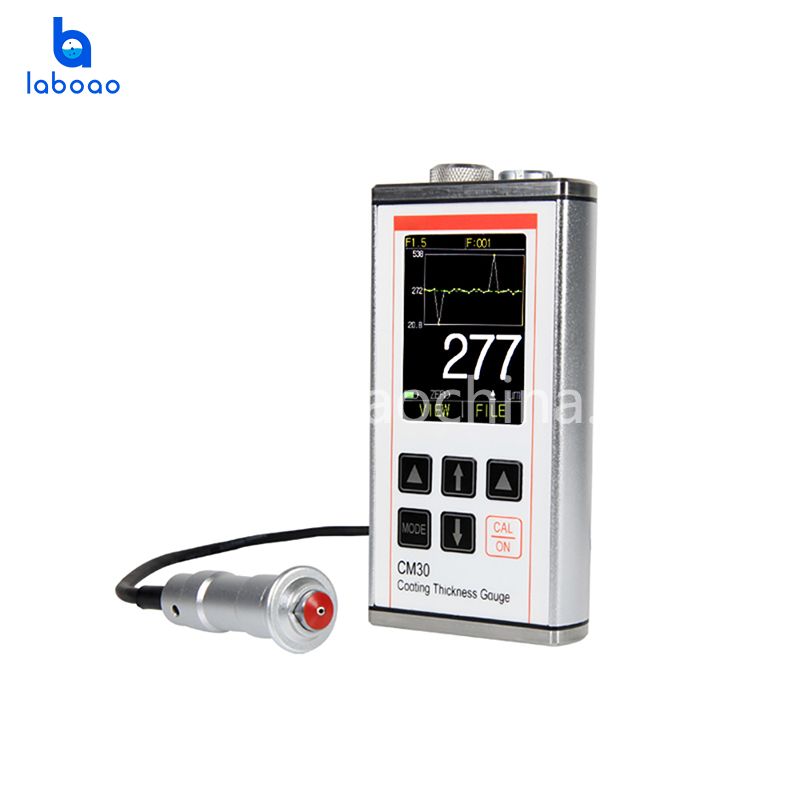

2.4 inch 320x240 dots ArrayColor IPS screen, clear andbright.Eye-catching large Value interface: Large font display,Simple interfacethe reading is intuitive.	The Statistics Interface consists ofMeasured Values and 6 StatisticalData (Number of testing, AverageValue, Max Value, Min Value,Standard deviation andVariable-coefficient). Convenient to observe the change of testing data at any time.	The trend chartdisplays the latest 20measurements, whichshows the testing valueand average value inreal time.

User debugging function	File Management
The user debugging function can calibrate the probe from several points to dozens of points according the requirement. Suitable for 4 kinds of probes with different testing principle. The measured value is accurate and stable.	It can store 200,000 testing values in 200 numbered files, in which can store 1000 values and the corresponding statistics per file. User can switch the file number as required. In Read Storage interface, the first page is statistic data, and other pages show 20 measurement values.

SPECIFICATIONS

Model			CM30F		CM30N		CM30FH		CM30FN
Probe Model			F3		N2		F10		FN1.5
Working Principle			Magnetic		Eddy Current		Magnetic		Magnetic/ Eddy Current
Measurement Range ( μm)			0～3000		0～2000		0～10000		0～1500
Resolution ( μm)			0.1		0.1		0.1		0.1
Indication Error ( μm)			±(2%H+2)		±(2%H+2)		±(2%H+10)		±(2%H+2)
Testing Conditions (mm)	Min. Radius of Curvature (Convex)		5		5		10		5
	Min. Area Diameter		Φ20		Φ20		Φ40		Φ20
	Base Material Critical Thickness		0.5		0.5		2		0.5
Technical Specifications
Display			2.4 ”（320 ×240）IPS Color LCD Screen
Working Principle			Magnetic/Eddy Current（Non-Magnetic）
Unit			Metric(Micrometer, Millimeter) / Imperial (Mils)
Resolution			High/Low (only in the Metric mode)
Language			Chinese / English
Storage Capacity			200 files, each file can store 1000 measurement values and 6 statistics
Power Off			Automatically shut down after 3 minutes without operation or shut down manually
Communication Interface			USB 2.0 Full Speed Interface
Power			Two 1.5V AA Batteries
Operation Time			20 Hours
Operating Environment			-10 to +50℃ Non-strong magnetic field environment
Dimension			121.5mm63.5mm31.5mm
Weight			317g（Exclude probe and batteries）
Standard Configuration

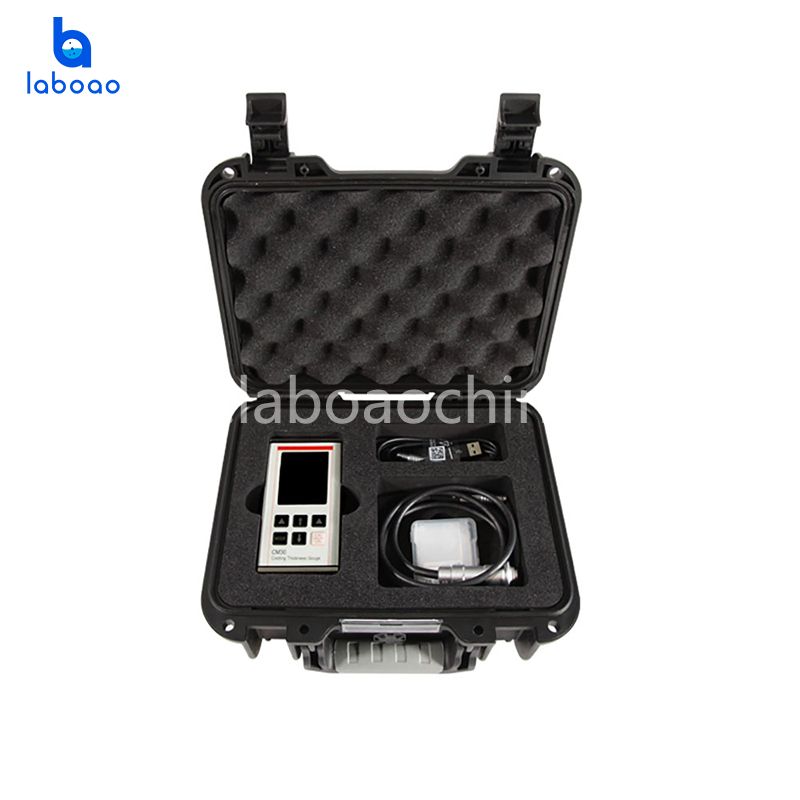

CM30 Gauge		1	AA Battery		2		Zero Plate		1(F,N,FH) 2 (FN)
USB Communi cation Cable		1	DataView Software (CD)		1		Probe		1
Operation Manual		1	Instrument Seal Box		1		Calibration Foil		5
Optional Configurations
Probe（Including Calibration Foils）		F3		N2		FN1.5		F10
Zero Plate		Fe Zero Plate,Al Zero Plate
Calibration Foil		Various thickness foils are available
