Ethanol Alcohol Extraction Centrifuge System
LCE-E series centrifuge is specially designed for plant extraction, and have the functions of airtight, explosion-proof, clean and mobile. LCE-E series centrifuge adopts flat-bottomed drum structure, which has larger volume, higher cleanliness, and non-polluting structure design. With simple operation, clean appearance, stable and excellent performance, it is liked by consumers.
- ModelLCE-E Series
- BrandLABOAO
- PortAny port in China
- PackagePlywood case package
6 Advantages Of LABOAO Centrifugal Extractor

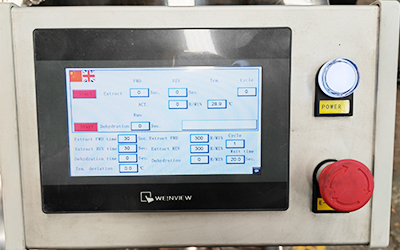

![Ethanol Alcohol Extraction Centrifuge System detail - Control touch screen with PLC program and temperature measuring device, the real-time temperature can be displayed on the display.]()
- 1. Control touch screen with PLC program and temperature measuring device, the real-time temperature can be displayed on the display.

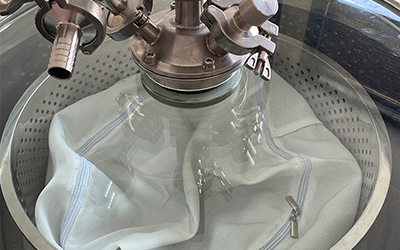

![Ethanol Alcohol Extraction Centrifuge System detail - Fully transparent explosion-proof sight glass, the material handling process can be clearly seen during the extraction process.]()
- 2. Fully transparent explosion-proof sight glass, the material handling process can be clearly seen during the extraction process.

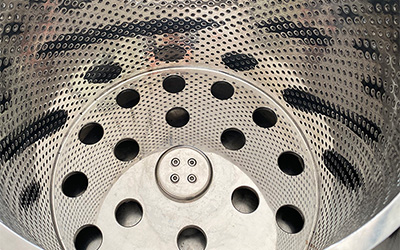

![Ethanol Alcohol Extraction Centrifuge System detail - S316 stainless steel centrifugal perforated drum, the overall appearance is beautiful, and the material is dried more evenly]()
- 3. S316 stainless steel centrifugal perforated drum, the overall appearance is beautiful, and the material is dried more evenly

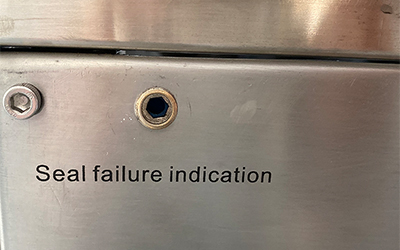

![Ethanol Alcohol Extraction Centrifuge System detail - 4 layer silicone seal with leak indication, new structure for easy replacement.]()
- 4. 4 layer silicone seal with leak indication, new structure for easy replacement.
![Ethanol Alcohol Extraction Centrifuge System detail - Alarm lamp device, higher safety. (fault warning, overload warning, etc.)]()
- 5. Alarm lamp device, higher safety. (fault warning, overload warning, etc.)

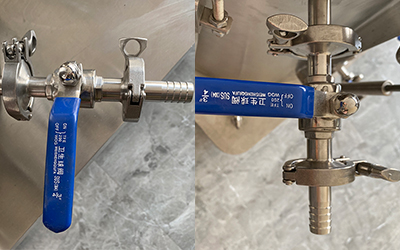

![Ethanol Alcohol Extraction Centrifuge System detail - The liquid inlet, liquid outlet, pressure relief valve, coolant inlet and outlet, pressure gauge, etc. can all be quickly installed and disassembled.]()
- 6. The liquid inlet, liquid outlet, pressure relief valve, coolant inlet and outlet, pressure gauge, etc. can all be quickly installed and disassembled.
DESCRIPTION
The LEC-E Series solvent extraction system possesses 97% alcohol removal from biomass and designed to maximize extraction yield. The Hamho LEC-E Series are made with food-grade stainless steel for smooth operation and maintaining exceptional performance. The uniquely designed flat-bottom drum to streamline production times and reduce your operation cost.
Compared with the traditional discharge centrifuge, The machine adopts a closed structure, and the seal is sealed with ptfe; the explosion-proof motor, frequency converter, PLC, touch screen and other devices can be used to achieve the sealed explosion-proof requirements.
FEATURES
1. Low temperature acceptable -50℃ to 50℃
2. Model 15,30 and 50 are all transparent explosion-proof glass clamshell structure, clearly check the equipment.
3. Automatic extraction process, the program can set the drum positive and negative rotation speed, time and cycle times, and can switch to manual control.
4. Dehydration speed and time can be set.
5. Temperature display.Vacuum pressure display.
6. The bottom is provided with leakage indication port, if any leakage can be found in time.
7. Zipper filter bag for quick loading and unloading.Designed for solo operation.
SPECIFICATIONS
Model | Capacity for dry material(lbs/batch*) | Speed(r/min) | Motor power(KW) | Packed size(mm) | Packed weight(KG) |
LEC-15E | 15 | 2000 | 1.5 | 1100*600*1300 | 330 |
LEC-30E | 30 | 1500 | 4 | 1600*800*1400 | 520 |
LEC-50E | 50 | 1250 | 5.5 | 1800*1060*1450 | 850 |
LEC-100E | 100 | 1100 | 7.5 | 1700*1400*1500 | 1350 |
LEC-150E | 150 | 1000 | 11 | 1900*1550*1700 | 2000 |
LEC-200E | 200 | 900 | 15 | 2300*1750*1950 | 2600 |
