EXPLORER 5000 hand-held X-ray fluorescence spectrometer is an important analytical testing tool, which can conduct precise chemical composition analysis on samples without being destroyed. Can accurately detect various precious metal alloys, high and low alloy steel, stainless steel, tool steel, chromium/molybdenum steel, nickel alloy, diamond alloy/heat-resistant alloy, titanium alloy/copper alloy, bronze, zinc alloy, etc., non-destructive testing, 1 second You can know the composition and alloy grade of the material. It can also quickly identify the grades of aluminum and magnesium light alloys.
  • ModelEXPLORER 5000
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

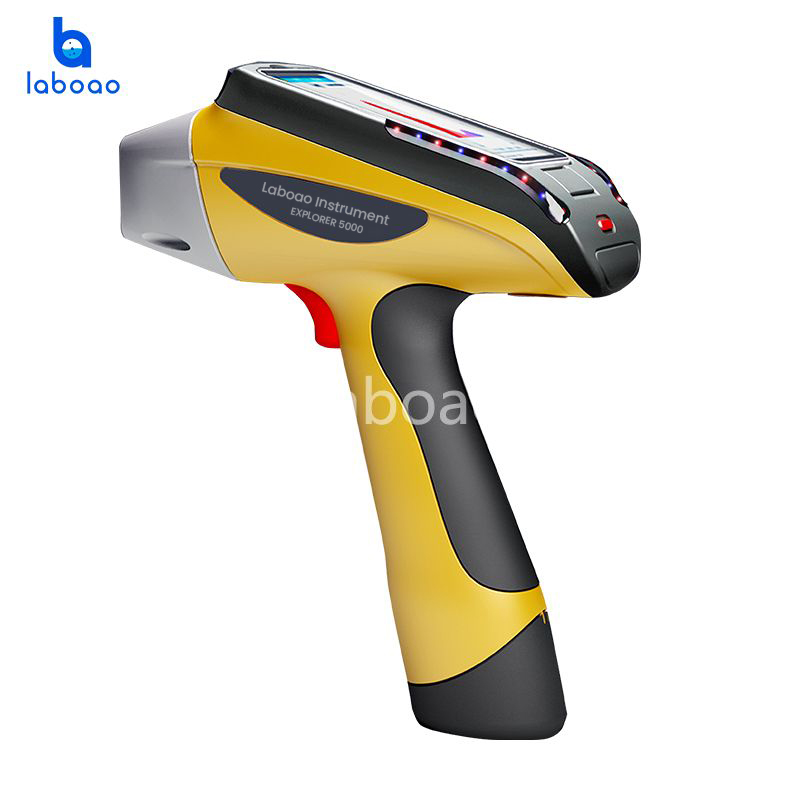

EXPLORER 5000 Rapid and accurate on-site analysis of alloy kinds and elements。Based on ten-year research and development experiences of portable instruments, EXPLORER handheld XRF adopt photoelectron, microelectronics, semiconductor, computer and many other technology and develop the new generation of handheld XRF with Independent Property Rights.

EXPLORER 5000 can make accurate and nondestructive detection on a variety of precious metal alloys, low alloy steel, stainless steel, tool steel, chrome / molybdenum steel, nickel alloys, cobalt alloys, nickel / cobalt-resistant alloys, titanium, copper alloy, bronze, zinc alloy, tungsten alloy, etc. Knowing the materials composition and alloy kind in one second. Rapid detection on aluminum and magnesium alloy grades is possible and it allows to make reliable identification and confirmation of the material (PMI) and precisely control the materials quality.

Application Field

  • Precious metal alloy

  • Iron and steel smelting

  • Waste metal recycling

  • Machinery manufacturing and processing

  • Boiler pressure vessel

  • Aerospace industry

  • Shipbuilding


1. Easier Operating

  • Light weight, small size, ergonomic handle design, equipped with a special instrument case, which is easier to grasp and more convenient to use in the field.

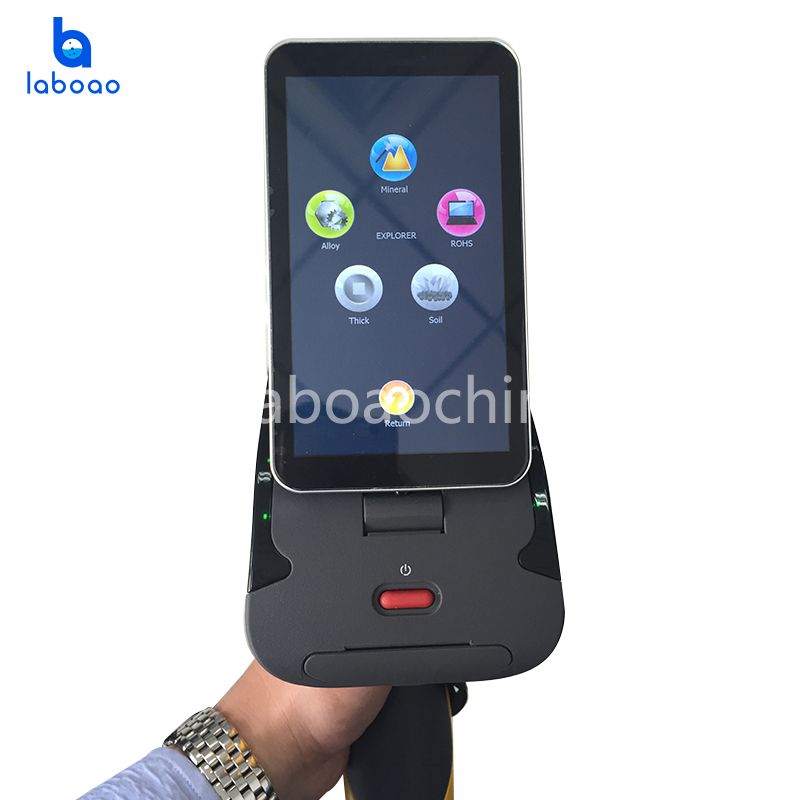

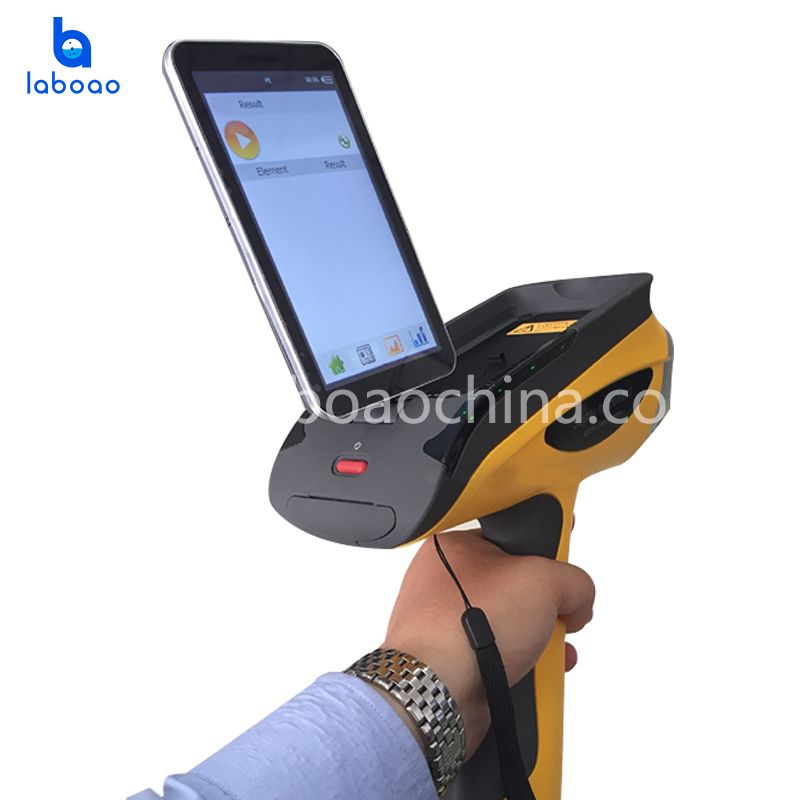

  • 5 inch high-definition screen with 360 degree rotation, multiple points operating, can display clearly at any lights.

  • Integrated design of Seal type, with waterproof and dustproof function, can be used continuously in harsh environments.

  • No need for sample preparation, can directly measure and analysis the surface of goods which need to tested. The instrument can do a quick measurement by its handheld benefit and accurately test the samples for a long time by its test block

2. Better Performance

  • Rapid nondestructive detection and quick measurement by aiming, report results within one second. The performance is comparable to the bench-top's performance and detection result is fast and accurate.

  • Simultaneous detection of Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, Ge, Zr, Nb, Mo, Ru, Rh, Pd, Ag, In, Sn, Sb, Hf, Ta, W, Re, Pt, Au, Pb, Bi, Mg, Al, Si, P, S, and it can add elements that customized for customer's needs.

  • Instrument can run without helium by the ultra near optical path design, and can detect the light elements from the beginning of Mg that fully meets the needs of specific users.

3. Stronger Battery

  • Large lithium battery at 27000mAh could be as a selected configuration; the battery duration working time is up to three days and it equipped with communicator and car charger to ensure power supply.

  • A Built-in memory battery can continue replace the battery power.

4. Higher Configuration

  • Four core parts which are Miniature X-ray tube, Fast-SDD detector (the world's best detector), digital signal processor and micro multichannel intelligent analysis module can achieve the accuracy as good as benchtop's.

  • Large data storage is by ultra-high frequency memory and mass storage space. Our new independent research and development Digital multichannel technology ensure effective mining spectral counts per second is up to 500K cps.

  • Collimation filter system, its combination can reach to the limit of 12 groups, to meet the testing requirements of different customers.

  • A built-in 500W pixels high definition camera, can observe sample's testing position at any time that makes the measurement more accurate.

5. Safer Protection

  • Intelligent- tricolor-early-warning-system: 360 degrees without dead angle display by LED three-color lamp led design. Instrument status tells by different colors, Green light means power on, red flushing means testing, and yellow flushing means fault of equipment.

  • Triple safety protection function:

  • a: Automatic induction, instrument does not work without sample, no leakage radiation.

  • b: Thicken-preventing-testing - wall can effectively prevent the scattering.

  • c: Safety -protection -cover can prevent the surrounding light matrix scattering.

  • Security- linkage- locking device protects your security, it can guard the final checkpoint if the software is unable to control the instrument turn off.

6. More Intelligent Software

  • EXPLORER 5000 alloy analyzer is equipped with professional application software, specifically for alloy industry; the feature is intelligent, high sensitivity, short testing time, and easy operation.

  • Brand new knowledge-ware is one key operation with dual mode design (user mode and expert mode). User mode uses for recognizing categories of sample by one key operation; Expert mode uses for increasing the elements and increasing the specific in-depth analysis of the operation curve.

  • Internal intensity correction method can correct deviation caused by uneven sample of different geometrics, densities and structures.





Analytical Method

Energy dispersive X ray fluorescence analytical Method

Elements   Measuring range

Atomic   number from 12 to 92 [elements from magnesium(Mg) to uranium (U)] can be   measured

Simultaneous   detector elements

Simultaneous   analysis 40 elements

Microcomputer   system

Customized   system; CPU: 1G ; system memory: 1G;extended stored maximum support 32G ;   standard 4G tor mass storage data

The   content range


The   detection time

1-60   seconds (a second report results)

A   built-in system

GPS,   WIFI, Bluetooth

Power   Supply

Rechargeable   lithium battery, standard is 9000mAh, sustainable work up to 12 hours;   optional is 27000mAh super battery with wide voltage 110V220V   universal adapter for recharging power supply

Detection   Objective

Solid,   liquid, powder


SDD   detector or Fast-SDD detector (optional)

Detector   resolution

Minimum   can reach 128ev

The   excitation source

50KV/200uA-   silver target end window integrated miniature X ray tube and high voltage   power supply

Collimator   and filter

Collimator   diameter are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching   functions

Video   system

500W   pixel high resolution camera

Display   screen

Brand   new 5 inch transflective LCD touch screen, the resolution is 1080x720

Detection   limit

The   minimum detection limits at 1-500ppm


Multiple   safety protection, no test, no radiation, radiation levels at work are far   below the international standards, and has no sample telemetry, automatic   shut X light tube function. Standard radiation shields, thickened wall alloy   test instrument


Ore   special edition analysis software, using intelligent one key test

Convenience   of application

Key   intelligent matching the best curve that no need to select curve

Data   transmission

Digital   multi-channel technology, SPI data transmission, quick analysis, the high   count rate; waterproof mini USB, and can be connected with a desktop computer

Operating   ambient humidity


Operating   environmental temperature


Instrument   dimension

244mm   (Length) x 90mm (Width) x 330m (Height)

Instrument   weight


Intelligent   warming signals lndicator system

Green   light means power on, red flushing means testing and yellow flushing means   the problems

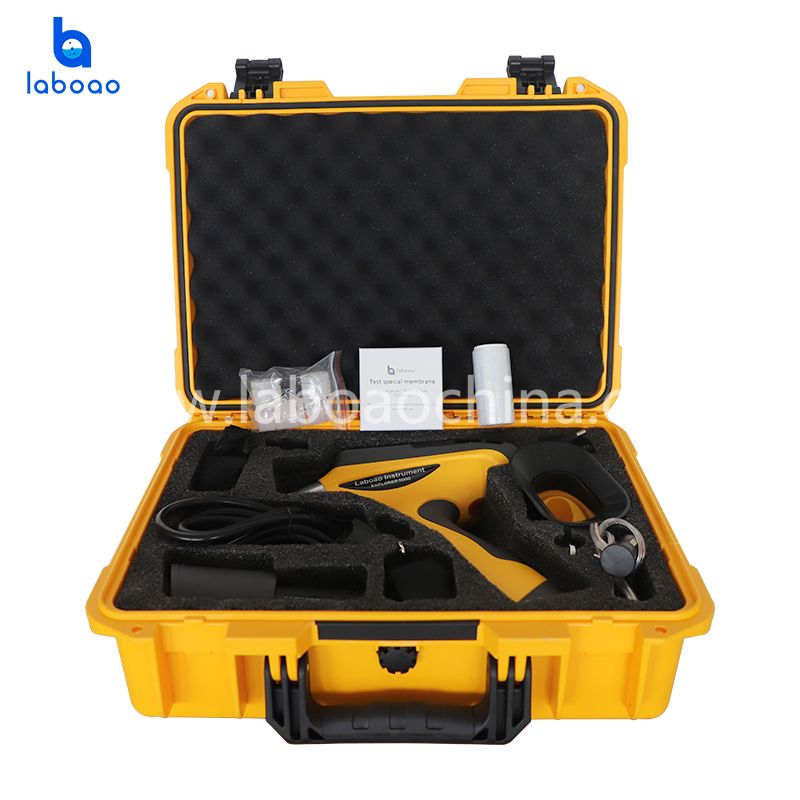

Three-military-protection-box   is compression, waterproof and shock absorption. Universal charger and car   charger, 4G SD memory card and card reader

Two   Lithium battery and charger, PDA accessories, radiation shield. Optional accessories:   the large battery, seat type test support, Bluetooth printer, mil, manual pressure   machine, and other options can to chosen…


  • A horseshoe shaped battery: battery capacity at 27000mAh prolonging test time 3 times, and use as the seat stent.

  • To achieve on-site printing data by portable Bluetooth printers.

  • Four into one car charger can extent charging times in the field.

  • Military grade high strength protective box, has good moisture-proof shockproof pressure three functions, an emergency situation can be used as a rescue tool.

  • Optional of portable and seat type can provide customers to have more choices.
