LDZ Series Vacuum Drying Oven Lcd Touch Screen

The vacuum drying oven is specially designed for drying heat-sensitive, easily decomposed and easily oxidized substances. It can maintain a certain degree of vacuum in the working chamber during work, and can fill the interior with inert gas, especially for some items with complex composition. Fast drying, using intelligent digital temperature regulator for temperature setting, display and control.
  • ModelLDZ Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

3 Advantages Of LABOAO Vacuum Drying Oven

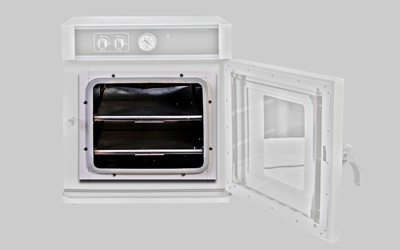

LDZ Series Vacuum Drying Oven Lcd Touch Screen detail - Plate heating type
1. Plate heating type

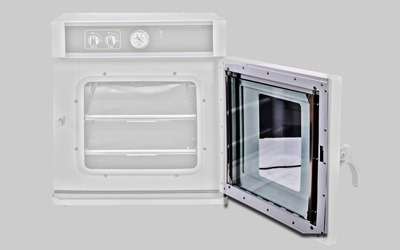

LDZ Series Vacuum Drying Oven Lcd Touch Screen detail - Bulletproof tempered glass window
2. Bulletproof tempered glass window

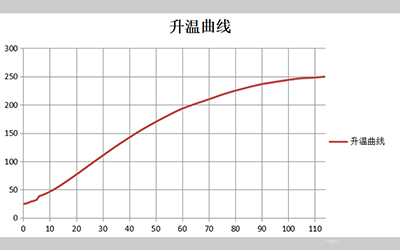

LDZ Series Vacuum Drying Oven Lcd Touch Screen detail - Heating curve
3. Heating curve


DESCRIPTION

Vacuum drying ovens are widely used in research applications such as biochemistry, chemical pharmacy, medical and health, agricultural research, environmental protection, etc., for powder drying, baking, and disinfection and sterilization of various glass containers. It is especially suitable for fast and efficient drying treatment of dry heat sensitive, easily decomposed, easily oxidized substances and complex composition items.

FEATURES

1. This vacuum drying oven adopts independent partition heating, multi-segment PID full temperature range on the touch screen, program temperature control, accurate and reliable temperature control, uniform and stable heating.

2. Bullet-proof tempered glass observation window, the objects inside are clear at a glance when working, and inert gas can be rushed into the inside.

3. The closing tightness of the box door can be adjusted, and the synthetic silicon door sealing ring is integrally shaped to ensure high vacuum in the box.

4. Storage, heating, testing, and drying can be carried out in an environment without oxygen or full of inert gas, and will not cause oxidation.

5. The heating method is flexible and changeable. Single-layer or double-layer heating mode can be selected.

6. The controller can choose two operating modes: fixed value or program

7. The heating rate can be set during constant value operation, and three modes of start timing, constant temperature timing and shutdown timing can be selected.

8. When the program is running, 30 sections of programs can be set, and each program corresponds to 40 steps. The corresponding numbered program can be called according to different test requirements.

9. In each program, the temperature, time and jump of each step can be flexibly set, and a certain section can be inserted or deleted at will, which is convenient for changing the program.

10. There are hold and skip buttons in the main interface of program operation, which can hold in a certain section or jump to the next section to run.

11. Real-time temperature curve recording, which is convenient for users to visually see the heating process

12. The instrument has a built-in intelligent temperature control algorithm, which can ensure accurate temperature control in any temperature section, ensure zero overshoot, and built-in multi-layer password protection to prevent users from changing internal parameters due to mis-operation

13. The screen can be always on, and the screen can be turned off manually or automatically. When the screen is off, the corresponding status indicator will automatically light up, which is convenient for understanding the operating status of the instrument.

SPECIFICATIONS

Model

LDZ24T

LDZ53T

LDZ91T

Method

independent temperature limiter, 2   partitions

Performance

Operating temperature range

RT+10-250

Ultimate vacuum

<133PA

Temperature resolution

0.1

Temperature fluctuation

±1

Heating time

from room temperature to the highest use   temperature ≤ 40 minutes

The uniformity of temperature control of   the partition

±0.5

Composition

Interior

stainless steel

Exterior

cold plate spraying

Thermal insulation material

aluminum silicate fiber

Heater

independent partition heating

Observation window

bulletproof tempered glass

Vacuum gauge

pointer type

Rated power

0.6 kw

1.0kw

1.4kw

Controller

Temperature control mode

5.0-inch LCD touch screen, multi-segment   PID full-temperature program temperature control

Temperature setting method

touch type

Temperature display method

liquid crystal display

Timer

fixed value running for 10000 hours; 99   hours per step when the program is running

Operation function

fixed value operation, timing operation,   automatic stop, program operation

Program mode

30 segments, 40 steps

Additional functions

deviation correction, power failure   compensation, real-time curve recording

Sensor

Pt100

Safety device

self-diagnostic circuit, abnormal   temperature sensor, independent temperature limiter

Specifications

Internal dimensions (W * D * H)(MM)

300*300*270

415*370*340

450*450*450

External dimensions (W * D * H)(MM)

517*495*660

632*566*736

667*646*841

Outer packaging size (W * D * H)(MM)

679*609*767

794*679*842

829*759*947

Inner volume

24 L

53L

91L

Shelf load-bearing capacity

15 kg

Number of clapboard layers

2 layers

Space between partitions

130 mm

135mm

175mm

Suction port

φ10 mm

Exhaust port

φ10 mm

Power supply (50/60Hz) rated current

220V 50Hz

Net weight/Gross weight

40/52kg

70/90kg

90/115kg

Configurations can be added

485 interface, printer, vacuum pump,   external communication, remote control, mobile phone control.
