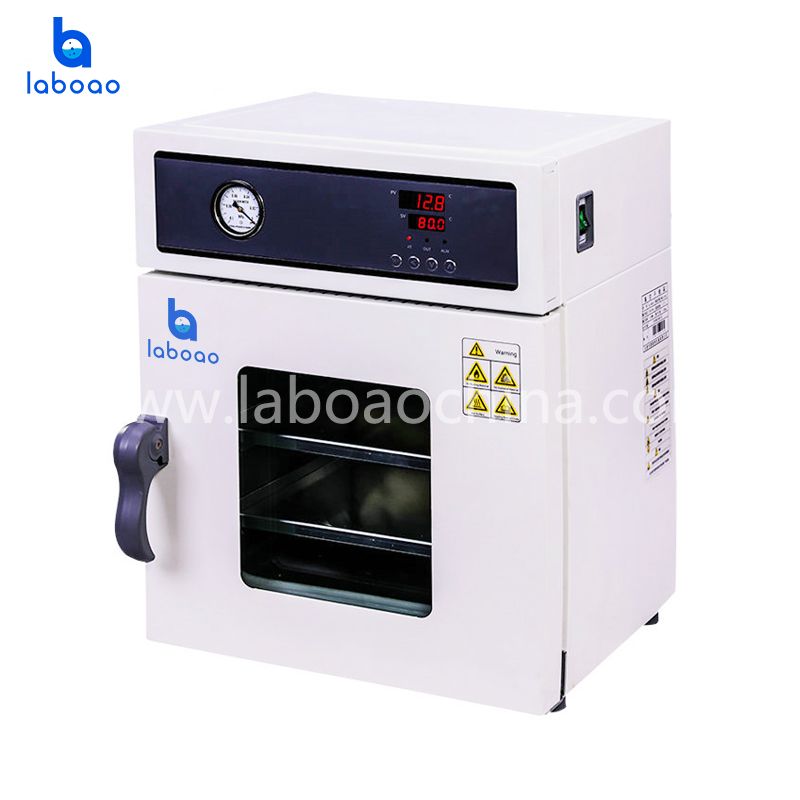

LDZ Series Precision Type Vacuum Drying Oven

The vacuum drying oven is specially designed for drying heat-sensitive, easily decomposed and easily oxidized substances. It can maintain a certain degree of vacuum in the working chamber during work, and can fill the interior with inert gas, especially for some items with complex composition. Fast drying, using intelligent digital temperature regulator for temperature setting, display and control.
  • ModelLDZ Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

3 Advantages Of LABOAO Vacuum Drying Oven

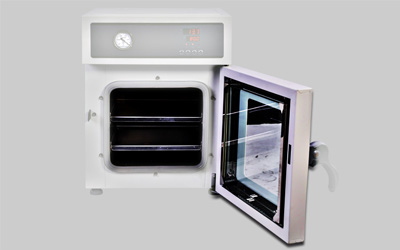

LDZ Series Precision Type Vacuum Drying Oven detail - Independent thickened and removable partitions, thickened insulating glass design
1. Independent thickened and removable partitions, thickened insulating glass design

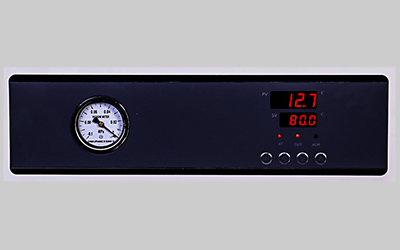

LDZ Series Precision Type Vacuum Drying Oven detail - Independent thickened partition
2. Independent thickened partition

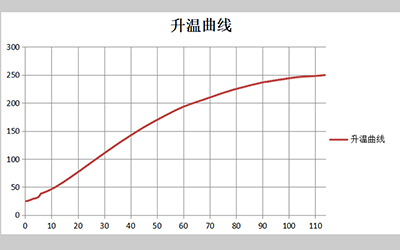

LDZ Series Precision Type Vacuum Drying Oven detail - Heating curve
3. Heating curve


DESCRIPTION

Vacuum drying ovens are widely used in research applications such as biochemistry, chemical pharmacy, medical and health, agricultural research, environmental protection, etc., for powder drying, baking, and disinfection and sterilization of various glass containers. It is especially suitable for fast and efficient drying treatment of dry heat sensitive, easily decomposed, easily oxidized substances and complex composition items.

FEATURES

1. Adjustable door lock, self-adaptable observation window frame, and one-time molding silicone sealing strip to ensure long-term stable sealing.

2. PID temperature controller, precise temperature control.

3. Dedicated function keys realize temperature setting.

4. Auxiliary menu, realize over-rise alarm, deviation correction, and menu lock.

5. Over-rise alarm, menu lock.

SPECIFICATIONS

Model

LDZ-1BCIV

LDZ-2BCIV

LDZ-3BCIV

Method

Decompression, heating on four walls

Performance

Operating temperature range

RT+10-250

Ultimate vacuum

<133PA

Temperature resolution

0.1

Temperature fluctuation

±1

Heating time

80 minutes

100 minutes

120 minutes

Constitute

Interior

stainless steel

stainless steel

stainless steel

Exterior

Cold rolled steel sheet, surface chemical   resistant coating

Thermal insulation material

aluminum silicate fiber

Heater

Stainless steel heating tube heating on all   sides

Observation window

bulletproof tempered glass


Vacuum gauge

pointer type

Rated power

0.8 kw

1.4kw

2.0kw

Controller

Temperature control mode

Digital tube dual-row PID

Temperature setting method

touch type

Temperature display method

Measurement temperature display: 4-digit   digital upper display; set temperature display: 3-4 digital lower display

Timer

0-9999 minutes (with timing waiting   function)

Operation function

fixed value operation, timing operation,   automatic stop, program operation

Program mode

Optional

Additional functions

Deviation correction, menu button lock,   power failure compensation, power failure memory

Sensor

Pt100

Safety device

Over-rise alarm

Specifications

Internal dimensions (W * D * H)

300*300*270mm

415*370*340mm

450*450*450mm

External dimensions (W * D * H)

459*492*608mm

574*562*683mm

609*642*788mm

Outer packaging size (W * D * H)

610*570*700mm

740*640*770mm

770*740*890mm

Inner volume

24L

52L

91L

Shelf load-bearing capacity

15 kg

Number of clapboard layers

2 layers

Space between partitions

100mm

140mm

185mm

Suction port

φ10 mm

Exhaust port

φ10 mm

Power supply (50/60Hz) rated current

AV220V/3.6A

AV220V/6.3

AV220V/9.1

Configurations can be added

Partition

2 pieces of all-aluminum partitions
