LPL Series Electrothermal Constant Temperature Incubator

Electrothermal constant temperature incubator is used for storage of bacteria, biological cultivation, necessary equipment for scientific research.
  • ModelLPL Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

3 Advantages Of LABOAO Thermostatic Incubator

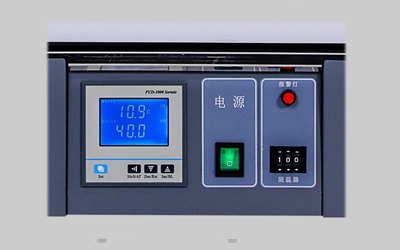

LPL Series Electrothermal Constant Temperature Incubator detail - Multi-function control panel
1. Multi-function control panel

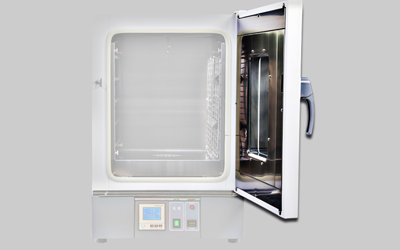

LPL Series Electrothermal Constant Temperature Incubator detail - Thickened safety door design
2. Thickened safety door design

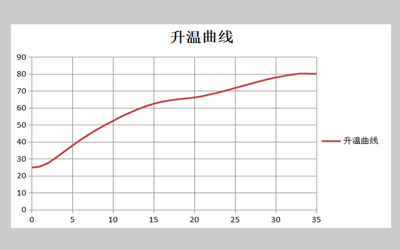

LPL Series Electrothermal Constant Temperature Incubator detail - Heating curve
3. Heating curve


DESCRIPTION

The electrothermal constant temperature incubator is a constant temperature incubator suitable for scientific research and industrial production departments such as medical and health, pharmaceutical industry, biochemistry and agricultural science for bacterial cultivation, fermentation and constant temperature testing.

FEATURES

1. High precision, high efficiency, safety, wide range

2. Vertical double duct air sleeve

3. Convenient operation, constant value operation, regular operation and automatic stop

4. Special function key to realize temperature setting

5. Auxiliary menu, realize over rising alarm, deviation correction and menu locking

6. Forced air supply by centrifugal turbine makes the temperature more uniform

7. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan <50 ℃, long-term and long-life operation

8. LCD multi-data full-screen operation display, power failure memory, power failure compensation

9. Over-rise alarm, menu lock, over-rise prevention

SPECIFICATIONS

Model

LPL-30BE

LPL-45BE

LPL-65BE

LPL-125BE

Mode

Double duct   forced convection

Performance

Temperature   control range

RT+5-80

Temperature   resolution

0.1

Constant   temperature fluctuation

±0.5

Temperature   uniformity

±1

Constitute

Interior   Material

stainless steel

Exterior   Material

Cold rolled   steel sheet, surface coating

Thermal   insulation material

Polyurethane

Heater

Stainless steel   heating pipe

Rated power

0.15kw

0.25kw

0.50kw

0.6kw

Exhaust vent

Inner diameter   28mm*1, located at the top

Controller

Temperature   control mode

Two-line LCD PID

Temperature   setting mode

Touch the button   to set

Temperature   representation

Measuring   temperature display: LCD upper position;


Setting   temperature display: LCD bottom position

Timer

0~9999min (with   timing waiting function)

Operation   function

fixed value   operation, timing operation, automatic stop

Program mode

Optional

Additional   functions

Deviation   correction, menu key locking, power failure compensation, power failure   memory

Sensor

Pt100

Safety device

Over rise alarm   and overload protection

Specifications

Internal   dimensions (mm)

310*310*310

350*350*350

400*360*450

500*450*550

External   Dimensions (mm)

445*487*671

485*527*722

534*538*822

634*628*922

Package size

560*560*830

600*600*857

670*620*960

760*700*1060

Internal volume

30L

45L

65L

125L

Diaphragm   bearing

15kg

Number of shelves

6

7

9

13

Shelf spacing

35mm

Rated current

AC220V/0.7A

AC220V/1.1A

AC220V/2.3A

AC220V/2.7A

Net / gross   weight

37/32

37/43

43/49

60/66

Accessories

Partition frame

4

Shelf

2

Configuration   can be increased

Shelf, RS485   interface, printer, recorder, external communication, remote control, Program   temperature controller, wireless SMS alarm, U disk data storage
