LPL-DLT Series Heating Incubator For Laboratory

The precision constant temperature incubator scientific research departments to store strains, biological culture, and conduct scientific research.
  • ModelLPL-DLT Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

3 Advantages Of LABOAO Thermostatic Incubator

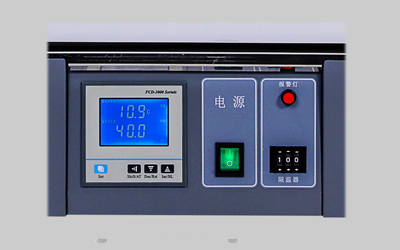

LPL-DLT Series Heating Incubator For Laboratory detail - Multi-function control panel
1. Multi-function control panel
LPL-DLT Series Heating Incubator For Laboratory detail - Thickened safety door design
2. Thickened safety door design

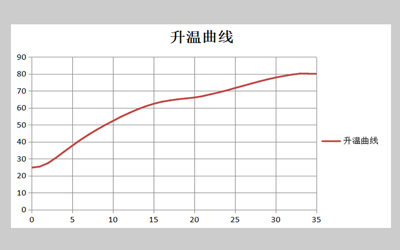

LPL-DLT Series Heating Incubator For Laboratory detail - Heating curve
3. Heating curve


DESCRIPTION

It is a necessary equipment for colleges, biology, agriculture, and scientific research departments to store strains, biological culture, and conduct scientific research.

FEATURES

1.    High precision, high efficiency, safety, wide range

2.    Vertical double duct air sleeve

3.    Convenient operation, constant value operation, regular operation and automatic stop

4.    Special function key to realize temperature setting

5.    Auxiliary menu, realize over rising alarm, deviation correction and menu locking

6.    Forced air supply by centrifugal turbine makes the temperature more uniform

7.    Forced fan cooling air intake structure, so that the maximum operating temperature of the fan <50 ℃, long-term and long-life operation

8.    Speed-regulating fan enables light, small and powdery samples to be used

9.    Insulated door technology, the outer door has low temperature and does not deform when used under high temperature conditions

10.  Pull-out tray partition design scheme, convenient and quick to take samples

SPECIFICATIONS

Model

Digital Liquid

LPL-30D

LPL-45D

LPL-65D

LPL-85D

LPL-125D

LPL-230D

Standard type

LPL-30L

LPL-45L

LPL-65L

LPL-85L

LPL-125L

LPL-230L

High matching

LPL-30T

LPL-45T

LPL-65T

LPL-85T

LPL-125T

LPL-230T

Internal   circulation method

Double duct   forced convection

Performance

Temperature   control range

RT+10-80

Temperature   resolution

0.1

Constant   temperature fluctuation

±1

Temperature   uniformity

±1%

Constitute

Interior   Material

stainless steel

Exterior   Material

Cold rolled   steel sheet, surface coating

Thermal   insulation material

Aluminum   silicate fiber

Heater

Stainless steel   heating pipe

Nickel-chromium   alloy heating wire

Rated power

0.15kw

0.25kw

0.50kw

0.55kw

0.6kw

0.7kw

Exhaust vent

Inner diameter   28mm*1, located at the top

Controller

Temperature   control mode

D: Digital tube   dual-row PID; L: LCD dual-row PID; T: 5-inch color touch screen fuzzy PID

Temperature   setting mode

D/L: Touch   four-button setting and touch screen input setting; T: touch screen setting

Temperature   representation

T:Measurement   temperature display:Upper display on touch screen, set temperature   display:lower display on touch screen

D: Measurement   temperature display: 4-digit upper display; set temperature display: 4-digit   lower display

L: Measurement   temperature display: LCD upper display; set temperature display: LCD lower   display

Timer

0~9999min (with   timing waiting function)

Operation   function

fixed value operation,   timing operation, automatic stop

Program mode

D/L is optional,   T single-stage temperature control and program temperature control can be   interchanged, 50 experimental programs can be stored, each program can be set   with 50 steps, and each step can be set for 0-6000 minutes, adjustable

Additional   functions

Deviation   correction, menu key locking, power failure compensation, power failure   memory

Sensor

PT100

Safety device

Over rise alarm   ,type D optional,LT standard

Specifications

Internal   dimensions (mm)

310*310*310

350*350*350

400*360*450

450*450*450

500*450*550

600*500*750

External   Dimensions (mm)

428*505*710

468*538*753

518*550*860

567*640*853

617*639*953

735*625*1220

Package size

552*578*840

592*618*880

642*628*980

692*718*980

742*718*1080

898*814*1347

Internal volume

30L

45L

65L

85L

125L

230L

Diaphragm   bearing

15kg

Number of   shelves

5

6

8

8

11

17

Shelf spacing

40mm

Rated current

AC220V/3.6A

AC220V/5.5A

AC220V/7.2A

AC220V/8.2A

AC220V/10.5A

AC220V/13.6A

Configuration   can be increased

Shelf, RS485   interface, printer, recorder, external communication, remote control, Program   temperature controller, wireless SMS alarm, U disk data storage
