LDH Series Precision Constant Temperature Incubator With LCD Touch Screen

The precision constant temperature incubator scientific research departments to store strains, biological culture, and conduct scientific research.
  • ModelLDH Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

3 Advantages Of LABOAO Thermostatic Incubator

LDH Series Precision Constant Temperature Incubator With LCD Touch Screen detail - Multi-function control panel

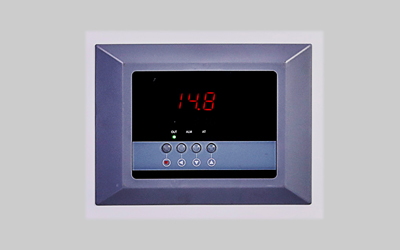

1. Multi-function control panel
LDH Series Precision Constant Temperature Incubator With LCD Touch Screen detail - Safety glass observation window

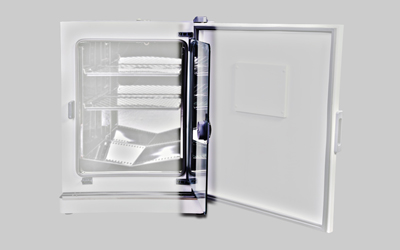

2. Safety glass observation window
LDH Series Precision Constant Temperature Incubator With LCD Touch Screen detail - Heating curve

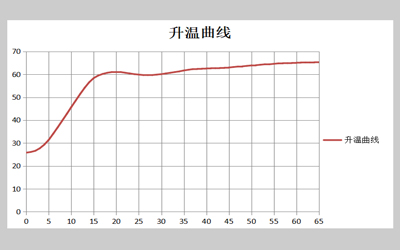

3. Heating curve


DESCRIPTION

It is a necessary equipment for colleges, biology, agriculture, and scientific research departments to store strains, biological culture, and conduct scientific research.

FEATURES

1. Using heating plate heating method, the temperature distribution is more uniform

2. Mirror stainless steel liner, convenient for cleaning and maintenance

3. High configuration with lighting, UV sterilization, over lift protection, inflation port and other equipment to meet the different needs of customers

4. The outer door is sprayed with carbon steel plate, and the inner door is strengthened with glass, so as to check the experimental status at any time

5. Convenient operation, constant value operation, regular operation and automatic stop

6. Special function key to realize temperature setting

7. Auxiliary menu, realize over rising alarm, deviation correction and menu locking

SPECIFICATIONS

Model

Standard type

LDH43D

LDH63D

LDH124D

LDH290D

High matching

LDH43L

LDH63L

LDH124L

LDH290L

Internal   circulation method

natural   convection

Performance

Temperature   control range

RT+5-65

Temperature   resolution

0.1

Constant   temperature fluctuation

High temperature ±0.5

Temperature   uniformity

±1

Constitute

Interior   Material

stainless steel

Exterior   Material

Cold rolled   steel sheet, surface coating

Thermal   insulation material

Aluminum   silicate fiber

Heater

Heating pipe

Rated power

0.25kw

0.25kw

0.50kw

0.6kw

Exhaust vent

Inner diameter   28mm*1, located at the top

Controller

Temperature   control mode

PID

Temperature   setting mode

Touch the button   to set

Temperature   representation

D: Measurement   temperature display: 4-digit upper display; set temperature display: 4-digit lower   display

L: Measurement   temperature display: LCD upper display; set temperature display: LCD lower   display

Timer

0~9999min (OR   hour)

Operation   function

fixed value   operation, timing operation, automatic stop

Program mode

D: NO     L:Optional

Additional   functions

Deviation   correction, menu key locking, power failure memory

Sensor

Pt100

Safety device

Over rise alarm   and overload protection

Specifications

Internal   dimensions (mm)

350*350*350

400*350*450

500*450*550

600*580*600

External   Dimensions (mm)

500*480*742

600*480*842

699*582*942

799*711*992

Package size

670*600*880

710*600*970

810*700*1070

940*860*1190

Internal volume

43L

49L

124L

209L

Diaphragm   bearing

15kg

Number of   shelves

7

10

13

15

Shelf spacing

35mm

Rated current

AC220V/1.1A

AC220V/1.1A

AC220V/2.3A

AC220V/2.7A

Net / gross   weight

29/32

33/38

49/53

62/67

Accessories

Partition frame

4

Shelf

2

Standard   equipment

l:   Sterilization, lighting, over-rise prevention, 485 interface, inflation   interface

Configuration   can be increased

L: Partition,   USB interface, printer, recorder, external communication, remote control,   program temperature controller, wireless SMS alarm
