Electric Heating Double Layer Stainless Steel Reactor

The overall structure of LABOAO electric heating chemical stainless steel double layer reactor is made of stainless steel S304 or S316L, the electric heating jacketed stainless steel reactor has the characteristics of fast heating, high temperature resistance, corrosion resistance, no environmental pollution, and easy use. which is highly resistant to corrosion, high temperature, and high pressure, has higher tolerance, has a stronger surface, is not easily damaged, and is easy to clean and maintain. Mainly used in industrial-scale chemical production, pharmaceuticals, food processing, petrochemicals and high-temperature and high-pressure reactions.

ModelLESR Series
BrandLABOAO
StockIn Stock
CustomizedOEM/ODM
CertificationCE
Min. Order1 unit
PortAny port in China
PackagePlywood case package

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

5 Advantages Of LABOAO Stainless Steel Reactor

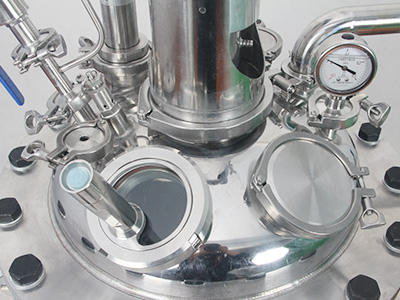

: 1. Multi-mouth reaction kettle cover, the number of kettle mouth can be customized, and the large -mouth design is easy to clean.

: 2. Stainless steel graphite combination mechanical seal, has wear resistance, high temperature resistance, better sealing.

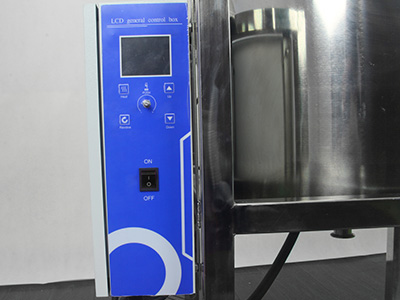

: 3. LCD display controller, one touch heating and cooling, faster heating.

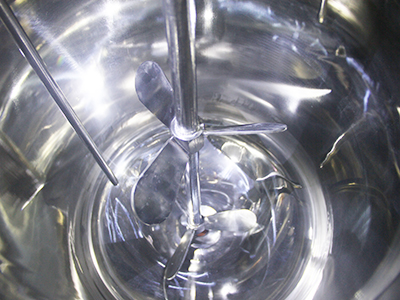

: 4. Sanitary level S316L stainless steel stirring slurry, corrosion resistance, wear resistance.

: 5. Ultrasonic vibrators can be customized to increase the reaction speed of liquids.

DESCRIPTION

The electric heating double layer stainless steel reactor has the characteristics of fast heating, high temperature resistance, corrosion resistance, no environmental pollution, and easy use. It can quickly raise and lower the temperature with one click through the digital display controller without circulating heat transfer oil. The reaction solvent is placed in the inner layer for stirring reaction, and the interlayer can be connected to different cold and heat sources (refrigeration liquid, hot water or hot oil) for cyclic heating or cooling reaction. Under set constant temperature conditions, in a closed stainless steel reactor, the stirring reaction can be carried out under normal pressure or negative pressure according to the use requirements, and the reaction solution can be refluxed and distilled. It is an ideal choice for modern fine chemical plants, biopharmaceuticals and Ideal pilot and production equipment for the synthesis of new materials.

Electric Heating Double Layer Stainless Steel Reactor Structure.jpg

FEATURES

1. Frequency conversion speed regulation, AC induction motor. The speed is constant, no brushes, no sparks, safe and stable, and can work continuously.

2. The entire set of instruments is made of SUS316L/SUS304 stainless steel, which has good chemical and physical properties.

3. The mezzanine interface is connected with hot oil for circulation and heating reaction can be carried out, and the refrigerant liquid is connected with it for low-temperature reaction.

4. It can react at room temperature, and the reaction heat can be quickly taken away by running tap water on it.

5. The lower discharge port uses a stainless steel ball valve. There is no dead space in the container and it is removable to facilitate the discharge of solid materials.

6. Eight-port reactor cover, extra-large port design for easy cleaning, standard port socket for optional assembly of reflux and distillation synthesis devices.

SPECIFICATIONS

Model	LESR Series
Kettle volume	2L/5L/10L/20L/50L/100L/200L(customzied)
Voltage/frequency	220V/50 Hz
Reaction temperature	-120~260℃
Pressure	-0.1~0.3Mpa
Stirring speed	0-460rpm
Power	200W
Sealed form	Stainless steel graphite combination mechanical seal
Number of cauldron lid openings	Eight ports (optional)
Material	SUS316L/SUS304
Sight glass	Φ89
Feeding port	Φ89
Temperature measuring hole	50.5 chuck/Φ12 temperature measuring tube
Return hole	50.5 chuck/2000ml funnel
Drop hole	50.5 chuck/Φ38 return port
Pressure gauge	50.5 chuck/± integrated pressure gauge
Impeller	SUS316L propeller mixing paddle
Condenser	Φ108/length 600mm
Exhaust	2-point exhaust valve
Bottom valve	Φ35/50.5 chuck
Optional(Additional fee)	Explosion-proof whole machine/ electric heating/Total 316L/collection tank/ mobile frame /spraying PTFE

APPLICATION

Chemical Synthesis
Pharmaceutical Production
Petrochemical Industry
Material Science
Material Science
Food and Beverage Industry
Environmental Analysis
Academic Research
