30L Double Layer Stainless Steel Reactor For Distillation

30L Double Layer Stainless Steel Reactor For Distillation

The overall structure of LABOAO 30L chemical stainless steel double layer reactor is made of stainless steel S304 or S316L, which is highly resistant to corrosion, high temperature, and high pressure, has higher tolerance, has a stronger surface, is not easily damaged, and is easy to clean and maintain. Mainly used in industrial-scale chemical production, pharmaceuticals, food processing, petrochemicals and high-temperature and high-pressure reactions.

ModelLSR-30L
BrandLABOAO
StockIn Stock
CustomizedOEM/ODM
CertificationCE
Min. Order1 unit
PortAny port in China
PackagePlywood case package

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

5 Advantages Of LABOAO Stainless Steel Reactor

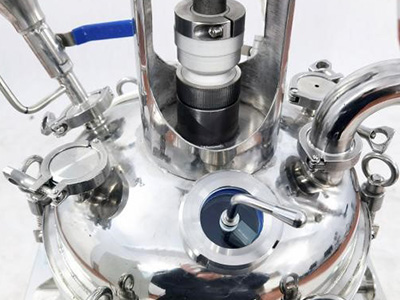

: 1. Multi -mouth reaction kettle cover, the number of kettle mouth can be customized, and the large -mouth design is easy to clean.

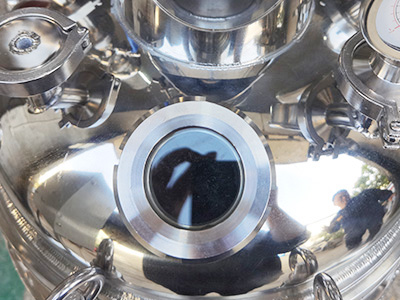

: 2. Visualized glass window, you can see the reaction in the kettle body.

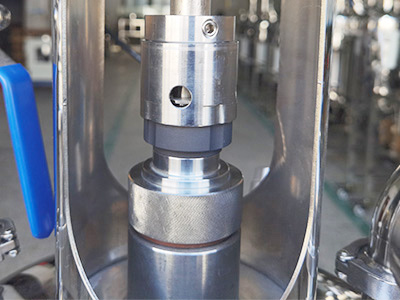

: 3. Stainless steel graphite combination mechanical sealing has wear resistance, high temperature resistance, and better sealing.

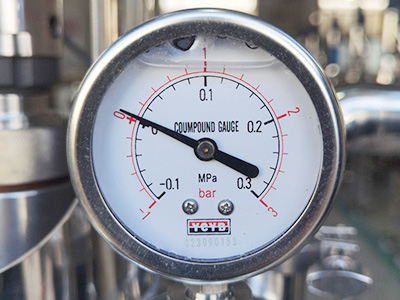

: 4. Vacuum pressure gauge real-time pointer display real vacuum.

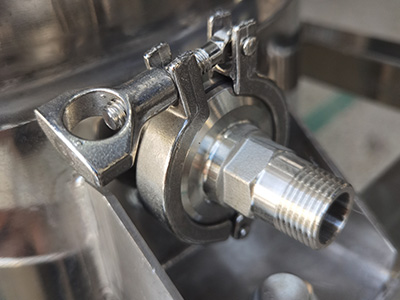

: 5. Standard stainless steel miles, stable connection, strong sealing.

DESCRIPTION

The Double layer stainless steel reactor is designed with double-layer stainless steel. The reaction solvent is placed in the inner layer for stirring reaction, and the interlayer can be connected to different cold and heat sources (refrigeration liquid, hot water or hot oil) for cyclic heating or cooling reaction. Under set constant temperature conditions, in a closed stainless steel reactor, the stirring reaction can be carried out under normal pressure or negative pressure according to the use requirements, and the reaction solution can be refluxed and distilled. It is an ideal choice for modern fine chemical plants, biopharmaceuticals and Ideal pilot and production equipment for the synthesis of new materials.

30L Double Layer Stainless Steel Reactor For Distillation Structure.jpg

FEATURES

1. Frequency conversion speed regulation, AC induction motor. The speed is constant, no brushes, no sparks, safe and stable, and can work continuously.

2. The entire set of instruments is made of SUS316L/SUS304 stainless steel, which has good chemical and physical properties.

3. The mezzanine interface is connected with hot oil for circulation and heating reaction can be carried out, and the refrigerant liquid is connected with it for low-temperature reaction.

4. It can react at room temperature, and the reaction heat can be quickly taken away by running tap water on it.

5. The lower discharge port uses a stainless steel ball valve. There is no dead space in the container and it is removable to facilitate the discharge of solid materials.

6. Eight-port reactor cover, extra-large port design for easy cleaning, standard port socket for optional assembly of reflux and distillation synthesis devices.

SPECIFICATIONS

Model	LSR-30L
Kettle volume	30L
Mezzanine volume	8L
Voltage/frequency	220V/50 Hz
Reaction temperature	-120~260℃
Pressure	-0.1~0.3Mpa
Stirring speed	0-460rpm
Power	200W
Sealed form	Stainless steel graphite combination mechanical seal
Number of cauldron lid openings	Eight ports (optional)
Material	SUS316L/SUS304
Sight glass	Φ32
Scraper sight glass	Φ51
Temperature measuring hole	50.5 chuck/Φ12 temperature measuring tube
Return hole	50.5 chuck/1000ml funnel
Drop hole	50.5 chuck/Φ38 return port
Pressure gauge	50.5 chuck/± integrated pressure gauge
Impeller	SUS316L propeller mixing paddle
Condenser	50.5 chuck/φ89 column cooling
Exhaust	2-point exhaust valve
Bottom valve	50.5 chuck/Φ89 column cooling
Overall dimensions	5305301900mm
Optional(Additional fee)	Explosion-proof whole machine/ electric heating/Total 316L/collection tank/ mobile frame /spraying PTFE
