2L Small Jacketed Stainless Steel Reactor

The overall structure of LABOAO 2L stainless steel double layer reactor is made of stainless steel S304 or S316L, which is highly resistant to corrosion, high temperature, and high pressure, has higher tolerance, has a stronger surface, is not easily damaged, and is easy to clean and maintain. Mainly used in industrial-scale chemical production, pharmaceuticals, food processing, petrochemicals and high-temperature and high-pressure reactions.
  • ModelLSR-2L
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

6 Advantages Of LABOAO Stainless Steel Reactor

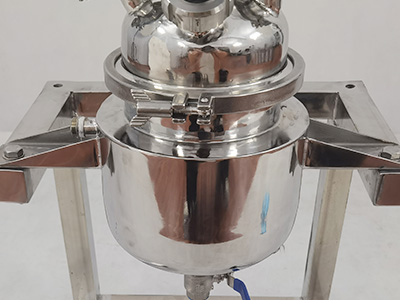

2L Small Jacketed Stainless Steel Reactor detail - Stainless steel kettle body, anti -corrosion, high temperature resistance, high pressure resistance.
1. Stainless steel kettle body, anti -corrosion, high temperature resistance, high pressure resistance.

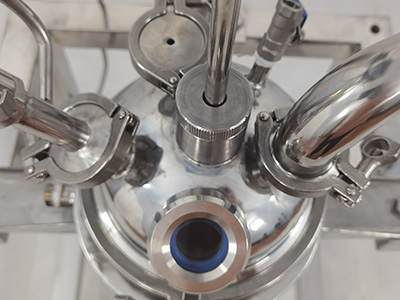

2L Small Jacketed Stainless Steel Reactor detail - Multi -mouth reaction kettle cover, the number of kettle mouth can be customized, and the large -mouth design is easy to clean.
2. Multi -mouth reaction kettle cover, the number of kettle mouth can be customized, and the large -mouth design is easy to clean.

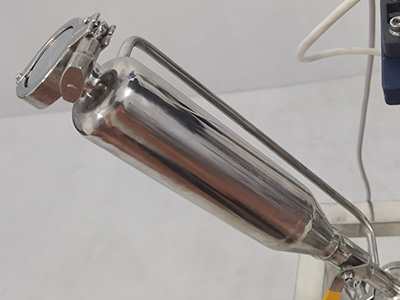

2L Small Jacketed Stainless Steel Reactor detail - Stainless steel drops plus funnel, have better gas tightness, and ensure that continuous liquid adding liquid is not affected.
3. Stainless steel drops plus funnel, have better gas tightness, and ensure that continuous liquid adding liquid is not affected.

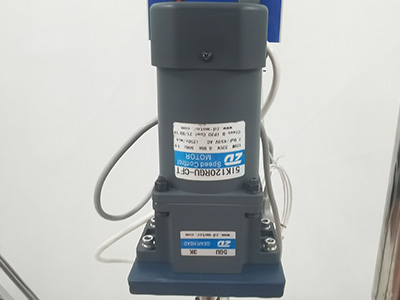

2L Small Jacketed Stainless Steel Reactor detail - Inverter speed regulating motor, constant speed, no brush, sparkless, safe and stable, can work continuously.
4. Inverter speed regulating motor, constant speed, no brush, sparkless, safe and stable, can work continuously.

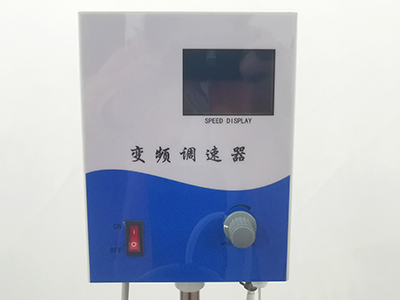

2L Small Jacketed Stainless Steel Reactor detail - Inverter frequency adjustment, electronic nolarm speed adjustment, digital display speed.
5. Inverter frequency adjustment, electronic nolarm speed adjustment, digital display speed.

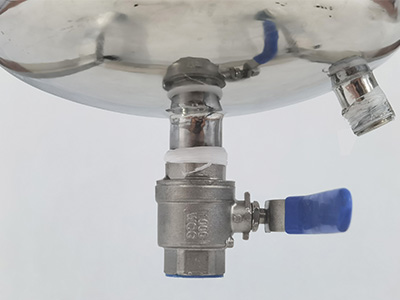

2L Small Jacketed Stainless Steel Reactor detail - Precision material valve, no effusion, no leakage, fast recycling solution.
6. Precision material valve, no effusion, no leakage, fast recycling solution.

DESCRIPTION

The Double layer stainless steel reactor is designed with double-layer stainless steel. The reaction solvent is placed in the inner layer for stirring reaction, and the interlayer can be connected to different cold and heat sources (refrigeration liquid, hot water or hot oil) for cyclic heating or cooling reaction. Under set constant temperature conditions, in a closed stainless steel reactor, the stirring reaction can be carried out under normal pressure or negative pressure according to the use requirements, and the reaction solution can be refluxed and distilled. It is an ideal choice for modern fine chemical plants, biopharmaceuticals and Ideal pilot and production equipment for the synthesis of new materials.

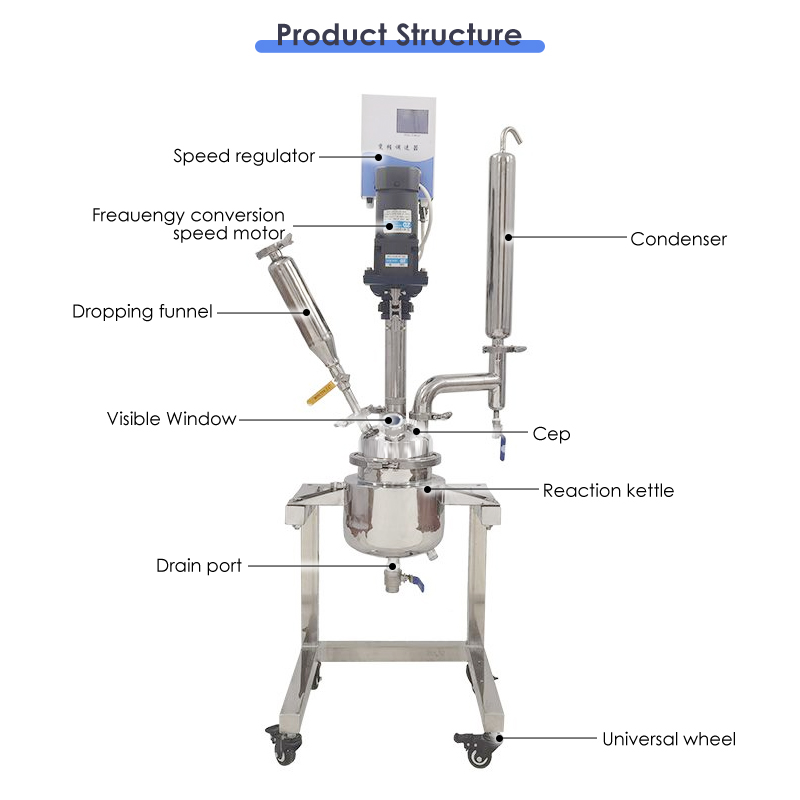

2L Small Jacketed Stainless Steel Reactor Structure.jpg

FEATURES

1. Frequency conversion speed regulation, AC induction motor. The speed is constant, no brushes, no sparks, safe and stable, and can work continuously.

2. The entire set of instruments is made of SUS316L/SUS304 stainless steel, which has good chemical and physical properties.

3. The mezzanine interface is connected with hot oil for circulation and heating reaction can be carried out, and the refrigerant liquid is connected with it for low-temperature reaction.

4. It can react at room temperature, and the reaction heat can be quickly taken away by running tap water on it.

5. The lower discharge port uses a stainless steel ball valve. There is no dead space in the container and it is removable to facilitate the discharge of solid materials.

6. Six-port reactor cover, extra-large port design for easy cleaning, standard port sockets for optional assembly of reflux and distillation synthesis devices.

SPECIFICATIONS

Model

LSR-2L

Kettle   volume

2L

Mezzanine   volume

0.6L

Voltage/frequency

220V/50   Hz

Reaction   temperature

-120~260

Pressure

-0.1~0.3Mpa

Stirring   speed

0-460rpm

Power

120W

Sealed   form

skeleton   seal

Number   of cauldron lid openings

Seven   ports (optional)

Material

SUS316L/SUS304

Sight   glass

Φ32*2

Temperature   measuring hole

50.5   chuck

Return   hole

50.5   chuck/Φ38 return port

Drop   hole

50.5   chuck/constant pressure funnel 500ml

Impeller

SUS316L   propeller mixing paddle

Exhaust

2-point   exhaust valve

Bottom   valve

4   point ball valve

Overall   dimensions

450*450*1410mm

Optional(Additional   fee)

Explosion-proof   whole machine/

electric   heating/Total 316L/collection tank/

mobile   frame /spraying PTFE
