Tertiary Stainless Steel Fermentation System

Tertiary Stainless Steel Fermentation System

Tertiary stainless steel fermenter is suitable for process development and small-scale production,each tank volume can be customized as request, volume is optional 5L,10L, 30L,50L,100L,200L,300L,500L,1000L.

ModelLBR-X-XSJ-XSJ Series
BrandLABOAO
CustomizedOEM/ODM
CertificationCE/PED
Min. Order1 unit
PortAny port in China
PackagePlywood case package

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

DESCRIPTION

Secondary stainless steel fermenter is two fermentation tanks (the same volume or different volumes are acceptable) form a set of conjoined system, which is suitable for parallel orthogonal experiment, provides the most optimized way for process research, and shortens the precious time of research.

Single tank can be used independently, reliable transfer pipeline, can be sterilized separately, floor-mounted integral frame, separate control cabinet can be centralized control, can be combined with various fermentation tanks according to needs, suitable for zooming from laboratory shake flasks It can also be used in small-scale production for the transitional fermentation test research.

FEATURES

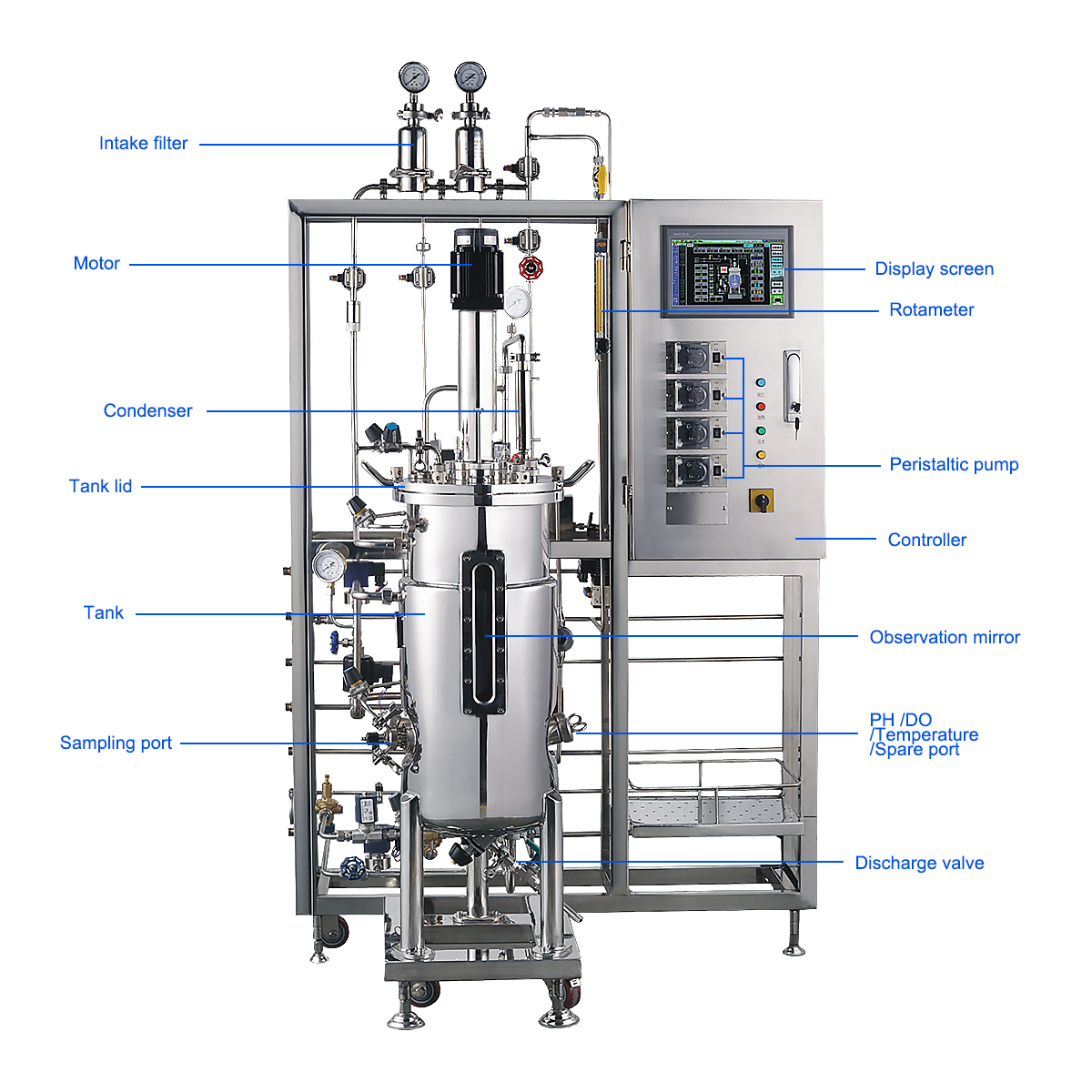

1. The main body is made of all-stainless steel 316L tank, with no dead corners in the tank; with special sampling and discharge valves for fermentation tanks, and transplanting pipes.

2. Adopt a wide viewing angle observation mirror for the liquid level in the tank, 12V safety light, with temperature, PH, DO, defoaming, liquid level interface, inoculation port, replenishing port, and multiple spare ports, all welds are firm Neat and beautiful.

3. The optimized diversion design improves the exchange efficiency and the uniformity of the temperature in the tank.

4. Special AC motors for fermentation tanks ensure that the motors can run in harsh environments.

5. German Siemens S7-200 series PLC control system + 10" LCD touch screen display operation, the system has real-time display, data recording and data analysis of the running process;

6. Temperature, speed, Ph value, DO value, upper and lower limits can be set, and it has over-limit alarm function.

7. It has the functions of over-liquid level alarm and automatic refilling, as well as over-foam level alarm and automatic addition of defoamer.

8. The historical data and curves of various parameters can be stored for many years, and the real-time curve can be restored as it is when the power is turned on again.

9. It has the function of replenishment measurement; regular and quantitative replenishment

10. The reactor software system has adaptive and self-diagnostic capabilities

SPECIFICATIONS

Item name	5L-50L-500L Tertiary Fermenter	10L-50L-100L Tertiary Fermenter	10L-100L-1000L Tertiary Fermenter
Model	LBR-5L-50SJ-500SJ	LBR-10L-50SJ-100SJ	LBR-10L-100SJ-1000SJ
Volume	5L,50L, 500L	10L, 50L, 100L	10L, 100L,100L
Power	380V 15KW	380V 18KW	380V 20KW
Weight	300kg	450kg	550kg
Required steam capacity and power when sterilizing	380V 45KW	380V 72KW	380V 100KW
Option	Any tank volume is optional as request

APPLICATION

Microbial Fermentation
Biopharmaceuticals
Tissue Engineering
Algal Biotechnology
Environmental Applications
Agricultural Biotechnology
Biofuels and Renewable Energy
Food and Beverage Industry

WHY CHOOSE US

Factory direct sales with competitive price.
Premium quality with CE & ISO certification.
Strong product OEM & ODM customization capability.
Promise production & on-time delivery.
Perfect after-sales service, free product accessories.
15 years of experience in R&D and production of stainless steel fermenter bioreactor machine.

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
