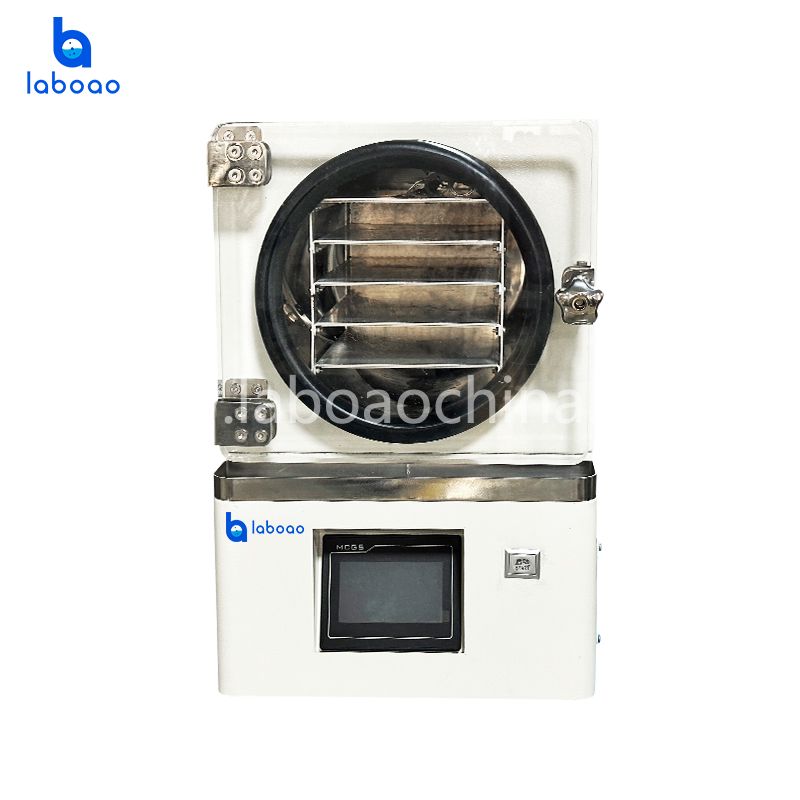

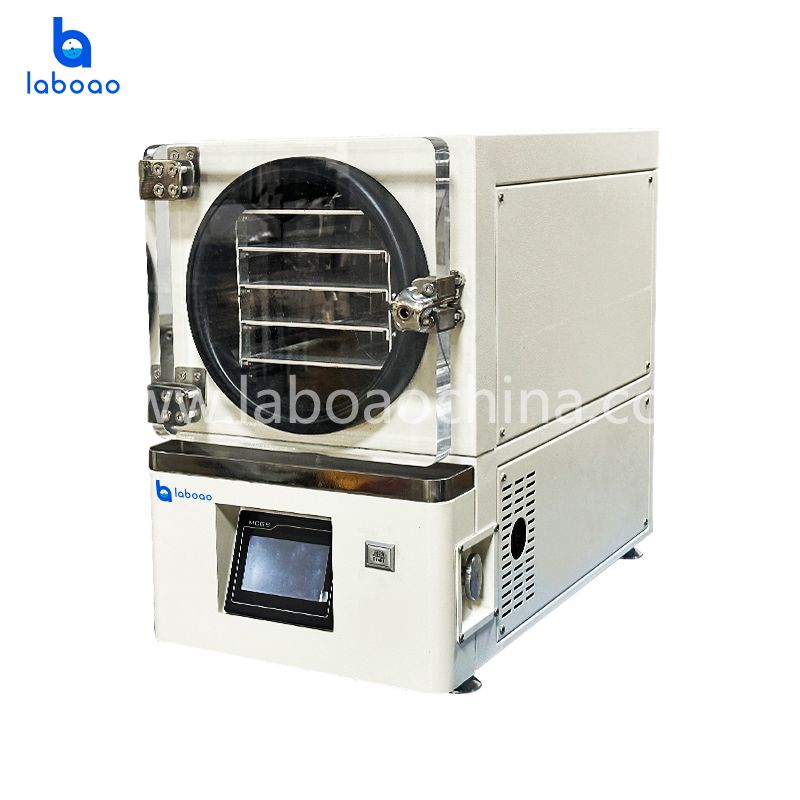

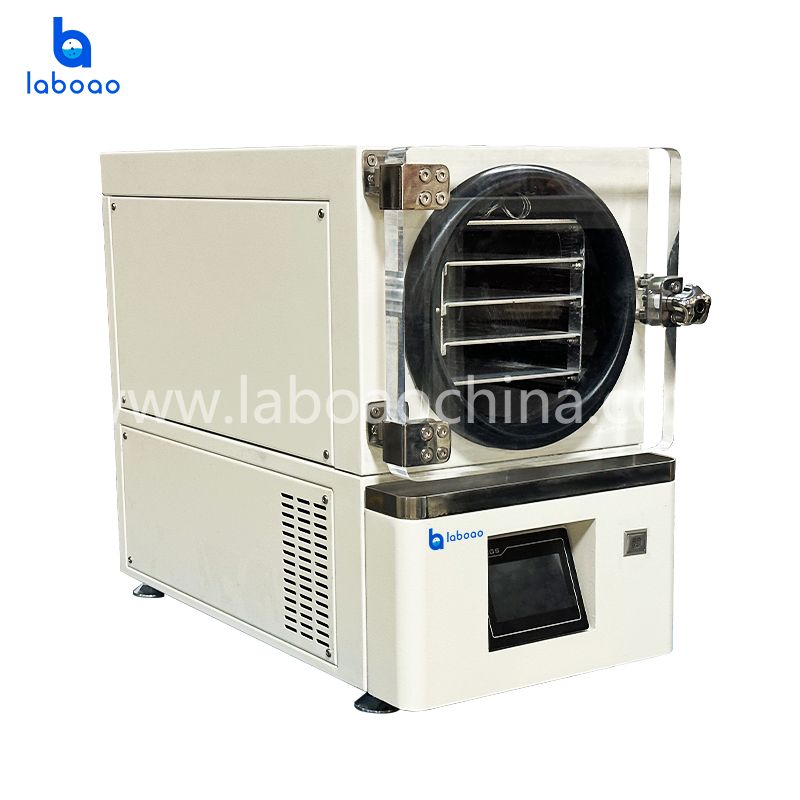

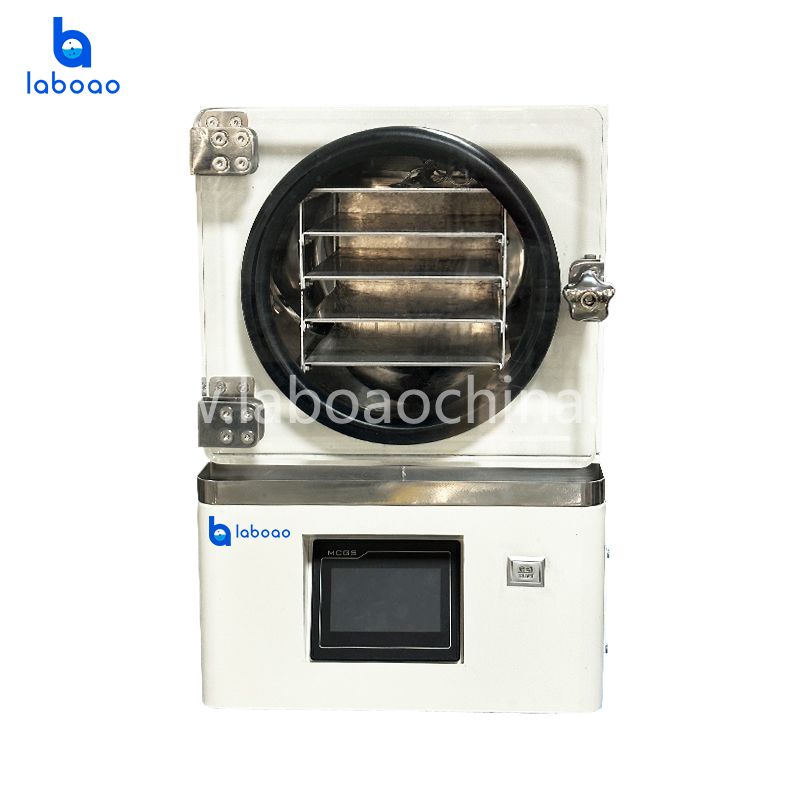

Benchtop Mini Vacuum Freeze Dryer With Built-in Vacuum Pump

Benchtop Mini Vacuum Freeze Dryer With Built-in Vacuum Pump

Freeze dryers utilize the principle of sublimation to produce dried products; moisture-containing materials are frozen at low temperatures, and ice crystals are then sublimated directly into water vapor under a vacuum. Widely used in sectors such as food processing and pharmaceuticals, this technology effectively preserves the material's original shape, color, and nutritional content.

ModelLFD-Mini
BrandLABOAO
StockIn Stock
CustomizedOEM/ODM
CertificationCE
Min. Order1 unit
PortAny port in China
PackagePlywood case package

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

DESCRIPTION

Freeze dryers (lyophilizers) operate on the principle of "ice crystal sublimation," integrating three key stages: pre-freezing, vacuuming, and temperature-controlled sublimation. The equipment typically consists of a drying chamber, a cold trap, a heating system, and a vacuum pump. By gently removing moisture in a low-temperature, low-pressure environment without compromising the material's structural integrity, these machines perfectly preserve the sample's physical structure, biological activity, and chemical properties, making them essential equipment in the field of high-end drying technology. It is for a small-capacity freeze-dryer intended for household use, it is enough to handle various materials, such as fruits, meat, vegetables, herbal medicines, and nutritional supplements etc.

FEATURES

1.Preservation of activity and properties: Drying at low temperatures prevents the inactivation of heat-sensitive substances and maintains the material's original volume and structure.

2.Protection of oxidation-prone components: The vacuum environment minimizes oxygen exposure, effectively protecting substances susceptible to oxidation.

3.Retention of volatile components: Low-temperature processing results in minimal loss of volatile constituents.

4.Inhibition of microorganisms and enzymes: Low temperatures suppress microbial growth and enzymatic activity, better preserving the material's original characteristics.

5.Porous structure and rapid rehydration: The dried product features a sponge-like, porous structure, allowing it to quickly and almost completely return to its original state upon adding water.

6.Prevention of surface hardening: Uniform ice crystal distribution prevents surface hardening caused by the precipitation of inorganic salts.

7.Thorough dehydration for long-term storage: Removes moisture, enabling long-term storage without product deterioration.

8.Low heat source requirements and cost-efficiency: Since the material remains in a frozen state, high-temperature heat sources are unnecessary, making thermal energy utilization more economical.

9. Benchtop mini freeze dryer with dimension 375x700x600mm , including built-in vacuum pump, which occupies less space, it is an ideal choice for home freeze drying machine.

SPECIFICATIONS

Model	LFD-Mini
Effective freeze drying area	0.2m²
Processing ability	2kg/batch
Liquid product capacity	≈ 2L (thickness 10mm)
Liquid product volume	1L/S
Water collection capacity	2kg
Number of shelves	4+1 (radiation layer)
Shelf size	175 mm×310 mm
Shelf distance	35 mm
Number of trays	4
Tray size	170 mm × 305 mm×20mm
Material of tray	304 stainless steel
Minimum temperature of shelf	≤ -30℃ (no-load)
Cold trap temperature	≤ -35℃ (no-load)
Shelf temperature range	-30℃ ～ +60℃
Maximum vacuum degree	≤2Pa
Defrosting method	Electric heating defrosting
Compressor	Imported fully enclosed piston compressor (SECOP)
Refrigerant	R404a
Power supply	Single phase 220V 50HZ
Installed power	1KW
Noise	≤ 62dB
External dimensions (mm)	375 width x 700 depth x 600 height
Total weight (Kg)	70kg
Package size (mm)	475 width x 860 depth x 854 height
Package Weight (kg)	90 kg
Vacuum Pump	Including Built-in vacuum pump
Optional configuration	★ Cold trap temperature ≤ -80℃

APPLICATION

Food Industry
Pharmaceutical Industry
Biotechnology and Research
Floral and Herbal Industry

WHY CHOOSE US

Factory direct sales with competitive price.
Premium quality with CE & ISO certification.
Strong product OEM & ODM customization capability.
Promise production & on-time delivery.
Perfect after-sales service, free product accessories.
15 years of experience in R&D and production of small food freeze dryer machine.

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
