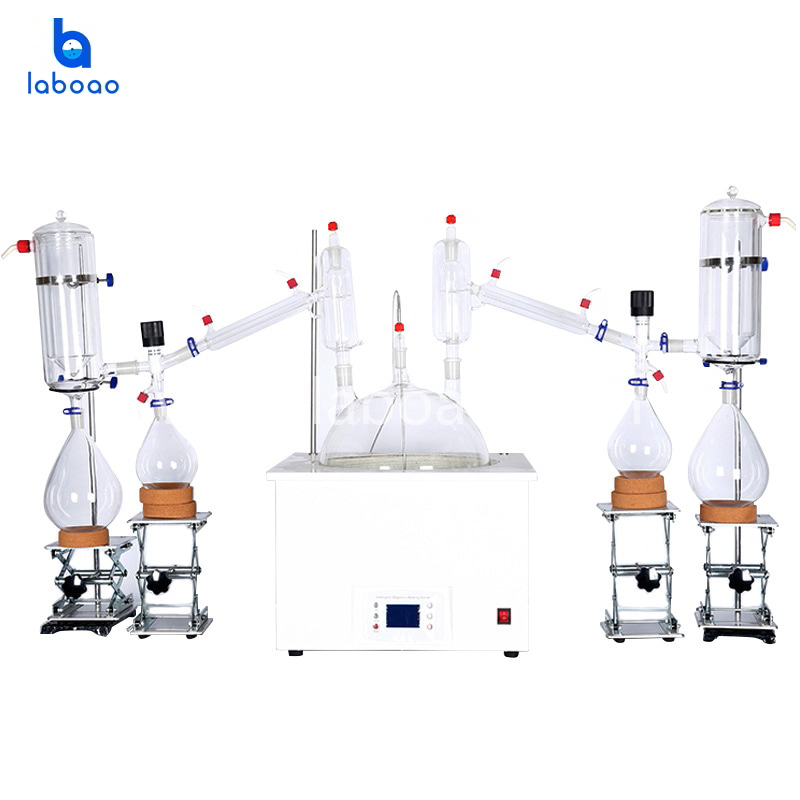

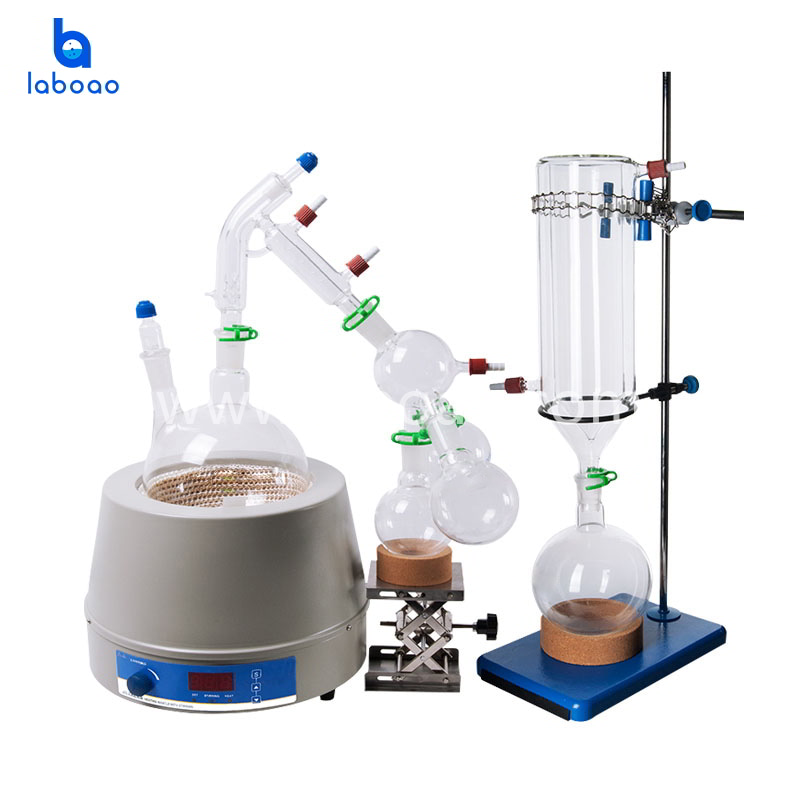

5L Short Path Distillation Kit System

Short path distillation is a simple technique that involves the distillate traveling a short distance. This technique is used in many types of distillation and has been around for many years in several fields. This distillation is completed under pressure which decreases the boiling point of the liquid.
  • ModelLSD-5
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat



Laboratory short path distillation is a thermal separation process of heat-sensitive products under vacuum conditions. By increasing the vacuum to eliminate the atmospheric pressure in the system, when the pressure drops, the boiling point of the contained compounds will drop. This process makes the extraction of heavier molecules faster and more efficient. The short residence time and low evaporation temperature will cause minimal thermal stress on the distillation product. It is designed based on the principle of molecular distillation. Typical applications are polymer organic compounds, especially from the chemical pharmacy and food industries. Distillation is one of the most important thermal separation methods.


(1) The operating temperature is low, which can greatly save energy consumption.

(2) Distillation pressure is low, requiring operation under high vacuum.

(3) The heating time is short, which reduces the thermal damage of heat-sensitive substances.

(4) High degree of separation and high product yield, especially suitable for specific distillation.







Borosilicate   Glass 3.3

Process   principle

Vacuum   distillation


Glass   kit, cold trap kit, electric heating mantle

Interface   Specification

24/40,   29/42



Main   Purpose

Laboratory   reaction/distillation


110V/220V,   50/60Hz



Packing   size





10L,   20L


1. Heating mantle *1

9. Receiving flask *1

2. Double neck round bottom   flask *1

10. #24 Plastic clips *6

3. Distillation elbow with   vacuum exhaust port *1

11. Spray paint hoop *1

4. Thermometer casing *2

12. Cross clip *1

5. Wooden support *4

13. GL-14 Connertors *5

6. Three-claw distillation   receiver *1

14. Iron chain 40~145mm *1

7. Round bottom flask *3

15. Iron stand 250*160mm *1

8. Cold trap *1

16. Lifting support 100mm *1


  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of short path distillation machine.
laboao certification


We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory


Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping


Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

laboao customer cases


Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
