LPCR-G Mini Gradient Thermal Cycler With Automatic Power Off Protection LPCR-G Mini Gradient Thermal Cycler With Automatic Power Off Protection LPCR-G Mini Gradient Thermal Cycler With Automatic Power Off Protection
LPCR-G Mini Gradient Thermal Cycler With Automatic Power Off Protection LPCR-G Mini Gradient Thermal Cycler With Automatic Power Off Protection LPCR-G Mini Gradient Thermal Cycler With Automatic Power Off Protection

LPCR-G Mini Gradient Thermal Cycler With Automatic Power Off Protection

Using American Marlow semiconductor refrigeration sheet, the maximum temperature change rate is more than 5 degrees per second, and the number of cycles is more than 200,000 times.
  • ModelLPCR-16G/LPCR-32G
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

DESCRIPTION

Using American Marlow semiconductor refrigeration sheet, the maximum temperature change rate is more than 5 degrees per second, and the number of cycles is more than 1,000,000 times. The product integrates various advanced technologies. Android operating system, color full-touch screen, gradient experiment, built-in WIFI module, mobile phone APP control, email reminder function, big data storage and expansion function, etc.

FEATURES

1. Adopt the special long-life Peltier module for the temperature circulator;

2. The engineering reinforced aluminum module treated by anodic oxidation technology not only retains the rapid thermal conductivity, but also has enough corrosion resistance;

3. Rapid rise and cooling rate, the fastest rise and cooling rate of 5 ℃ / s, save precious time experiment;

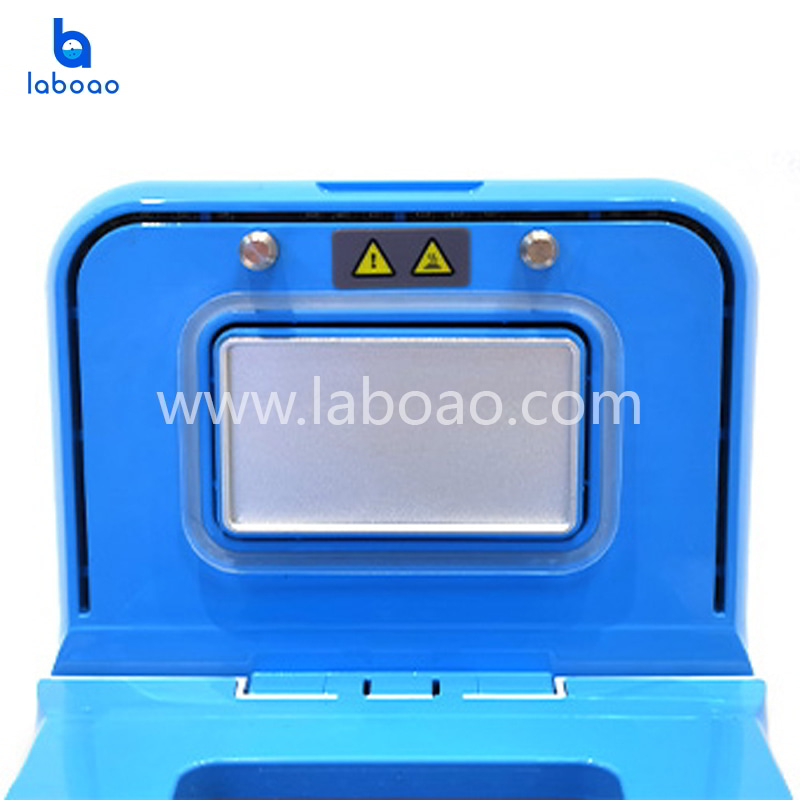

4. Retractable hot cover, suitable for test tubes of different heights;

5. Color capacitive touch screen control, high definition TFT display (5 inches, 800 480 pixels), graphical menu navigation interface, extremely simple operation;

6. Built-in 11 standard program file templates, can quickly edit required files;

7. The program USES folder management, can be built directory;

8.Real-time display of program progress and remaining time, support intermediate programming of PCR instrument;

9. One-button rapid incubation function, to meet the needs of denaturation, enzyme digestion/enzyme ligation, ELISA and other experiments;

10. The hot cover temperature and working mode can be set to meet different experimental requirements;

11. Automatic power off protection. After the power is restored, the unfinished cycle will be executed automatically to ensure the safe operation of the whole process of amplification;

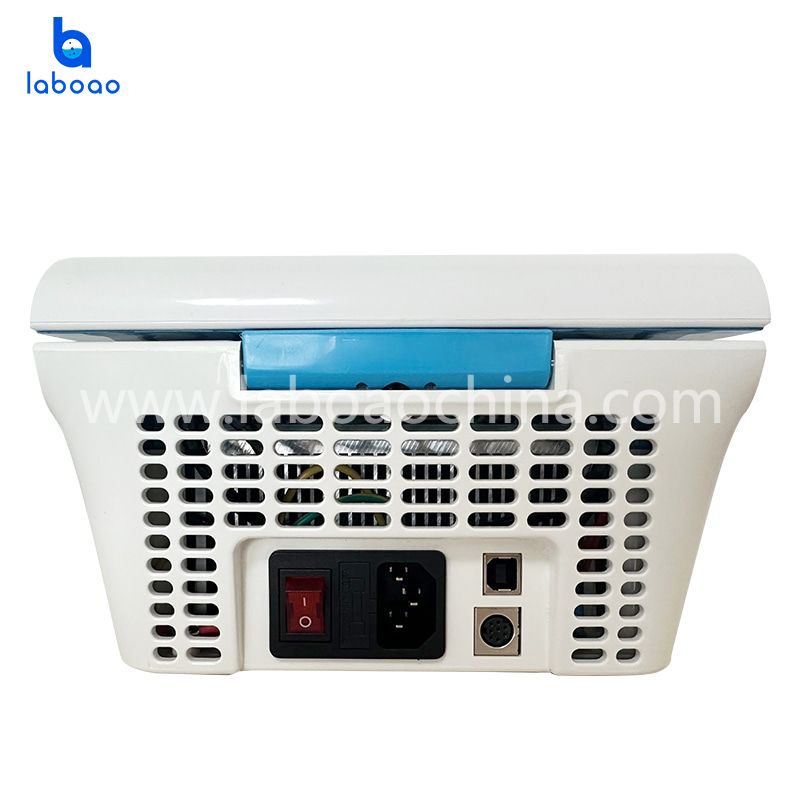

12. USB interface, support U inventory/PCR data, or use USB mouse to control PCR instrument;

13. Support U disk and LAN update software;

14. Built-in WIFI module enables one computer or mobile phone to control multiple PCR devices at the same time through network connection;

15. Support the function of sending email reminders after the end of the experimental program.

SPECIFICATIONS

Model

LPCR-16G

LPCR-32G

Capacity

16×0.2ml(4×4arrangement)

32×0.2ml(4×8arrangement)

Tube

0.2 ml single pipe

0.2ml single tube, 8 tubes

Temperature Range

4~100

MAX. Heating Rate

5/s

MAX. Cooling Rate

4/s

Uniformity

≤±0.2

Accuracy

≤±0.2

Display Resolution

0.1

Temperature Control

Block\Tube

Ramping Rate Adjustable

0.1~5

Gradient Temp. Range

30~100

Gradient Spread

1~30

Hot Lid Temperature

30~110

Number of Programs

10000 +(USB FLASH)

Max. No. of Step

30

Max. No. of Cycle

100

Time Increment/Decrement

1 Sec ~ 600 Sec

Temp. Increment/Decrement

0.1~10.0

Pause Function

Yes

Auto Data Protection

Yes

Hold at 4

Forever

Language

Chinese/English

Computer Software

Yes

Mobile APP

Yes

LCD

5 inch,800×480 pels, 65K colors

Communication

USB2.0 , WIFI

Dimensions

267mm×190mm×115mm (L×W×H)

Weight

3kg

3.2kg

Power Supply

85~264VAC ,  47~63Hz , 120 W

85~264VAC , 47~63Hz , 200 W
