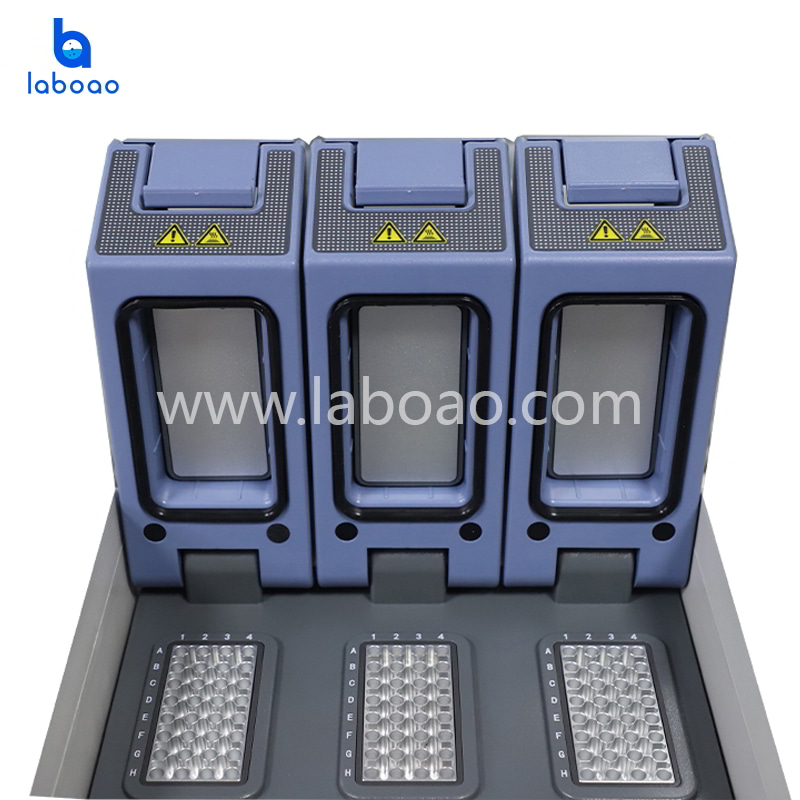

LPCR-3X Intelligent Three Slot Thermal Cycler With Independent Modules
- PortAny port in China
- PackagePlywood case package
Using American Marlow semiconductor refrigeration sheet, the maximum temperature change rate is more than 5 degrees per second, and the number of cycles is more than 200,000 times. This product integrates various advanced technologies into one, WIMDOW operating system, full-color touch screen, and can independently run three modules, including computer online function, printing function, big data storage and expansion function. Both will improve the functions of qualitative PCR products to the extreme, and the powerful functions will meet the needs of higher requirements for experiments.
1. Six dedicated long-life Peltier modules for temperature circulators, forming three groups of loops to independently control three temperature zones;
2. The engineering reinforced aluminum module treated by anodic oxidation technology not only retains the rapid thermal conductivity, but also has enough corrosion resistance;
3. Rapid rise and cooling rate, the fastest rise cooling rate 4.5 ℃ / s, save precious time experiment;
4. Independent control of the three-slot module, which can run three different PCR programs at the same time;
5. stepless adjustable hot cover with pressure protection, suitable for test tubes of different heights, avoiding thawing and evaporation;
6. friendly Windows interface, color touch screen control, high definition TFT display (8 inches, 800 x 600 pixels, 16 true colors), graphical menu navigation interface, extremely simple operation;
7. Built-in 11 standard program file templates, can quickly edit required files;
8. The program USES folder management, can be built directory;
9. Real-time display of program progress and remaining time, support intermediate programming of PCR instrument;
10. One-button rapid incubation to meet the needs of denaturation, enzyme digestion/enzyme ligation, ELISA and other experiments;
11. Large data storage capacity, which can store up to 10,000 files;
12. The hot cover temperature and working mode can be set to meet different experimental requirements;
13. Automatic power off protection. After the power is restored, the unfinished cycle will be executed automatically to ensure the safe operation of the whole process of amplification;
14. GLP experiment report, recording the operation information of each step of the program, and providing accurate data support for the analysis of experimental results;
15. User login management, three-level authority, password protection function to ensure data security;
16. USB interface, support U inventory/PCR data, or use USB mouse to control PCR instrument;
17. Support U disk and LAN update software;
18. One machine can control multiple PCR meters at the same time through network connection;
19. Optional miniature wireless bluetooth printer can record experimental program information easily and accurately;
20. Support the function of sending email reminders after the end of the experimental program.
Ramping Rate Adjustable
Three slot can be set independently
Hot Lid Temperature
Hot Lid Height Adjustable
Number of Programs
10000 +(USB FLASH)
Max. No. of Step
Max. No. of Cycle
1 Sec ~ 600 Sec(support long PCR test)
0.1~10.0℃(support Touchdown test)
Auto Data Protection
Hold at 4℃
LAN to computer
8 inch,800×600 pels, TFT
USB2.0 , LAN
85~264VAC , 47~63Hz , 600 W
