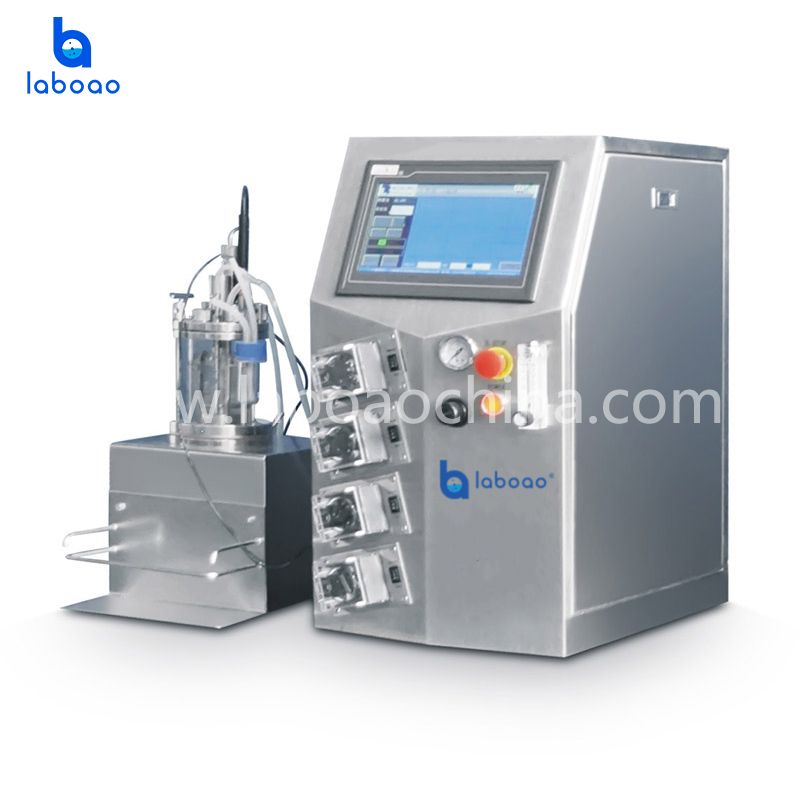

Desktop Two Conjoined Sterilization Glass Bioreactor Fermenter

The desktop dual off-site sterilization bioreactor is a classic product in parallel comparison bioreactors, and is the first choice for strain screening and process research and development. It is cost-effective, small in space, easy to use, and ready to use.
  • ModelLBR-XGC/LBR-XGJ/LBR-XGJG/LBR-XGJGG Series
  • BrandLABOAO
  • CustomizedOEM/ODM
  • CertificationCE/PED
  • Min. Order1 unit
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

VIDEO

DESCRIPTION

The two conjoined sterilization glass bioreactor uses a color touch screen to display all measured values and control parameters, which greatly facilitates the user's operation. Eight peristaltic pumps are installed on the front of the control box to add acid, alkali, defoamer and culture medium to the fermenter. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer. The structure is compact, and various components can be integrated into the fermentation system. It adopts the direct coupling mechanical stirring method driven by the upper part or the magnetic indirect coupling mechanical stirring method driven by the lower part. The structure is simple and the operation is stable.


Application areas:

• Discover secondary metabolites or new enzyme activities in heterogeneous mixed culture products;

• High-throughput screening research, mutant strain distribution research and construction of E. coli library or yeast library;

• Metabolic flux research and high-throughput screening of highly active mutant strains;

• Comparative studies, such as: isolation and screening of clinical strains;

• Optimization of growth medium for cell lines or high-yield strains;


FEATURES

1. German Siemens PLC control system +10" touch screen display and operation, full Chinese menu and interface

2. Data analysis, saving, curve display can be carried out, data can be saved for many years, data can be exported with USB flash drive, tank data can be sampled and displayed, system data can be browsed and analyzed, and settings can be read.

3. It can control the stirring speed, the temperature of the medium in the tank, the Ph value, and the DO value;

4. The inner parts of the tank are all installed on the tank lid, which is very convenient for maintenance and cleaning; the stepless speed regulation range with automatic setting control is 50-1200rpm±5rpm

5. Rotameter display, adjust gas flow according to process requirements

SPECIFICATIONS

Model

LBR-XGC-2-A

LBR-XGJ-2-A

LBR-XGJG-2-A

LBR-XGJGG-2-A

Capacity

0.5L/0.6L/0.7L/0.8L/1L/2L/3L/5L/7L/10L/15L

Material

316L   stainless steel + borosilicate glass

Mixing   method

magnetic   stirring

mechanical   stirring

Sterilization   method

off-site   sterilization autoclavable

Basic   Configuration

Temperature,   Speed, PH, DO, Defoaming, Ventilation, Pressure

Extensible   configuration (optional)

Exhaust   O2, CO2 detection, Online detection of methanol and ethanol content, Refill   weighing system etc.

Power

220V   5KW

Dimension(L*W*H)

800*600*650mm

Net   weight

80kg

OPTIONAL

1. Weighing with replenishing balance

2. Tank weighing

3. Air flow automatic control

4. Tank pressure detection

5. Bypass pure oxygen

6. Redox potential online detection

7. Methyl (ethyl) alcohol content online detection and control

8. Tail gas O2, CO2 content online detection
