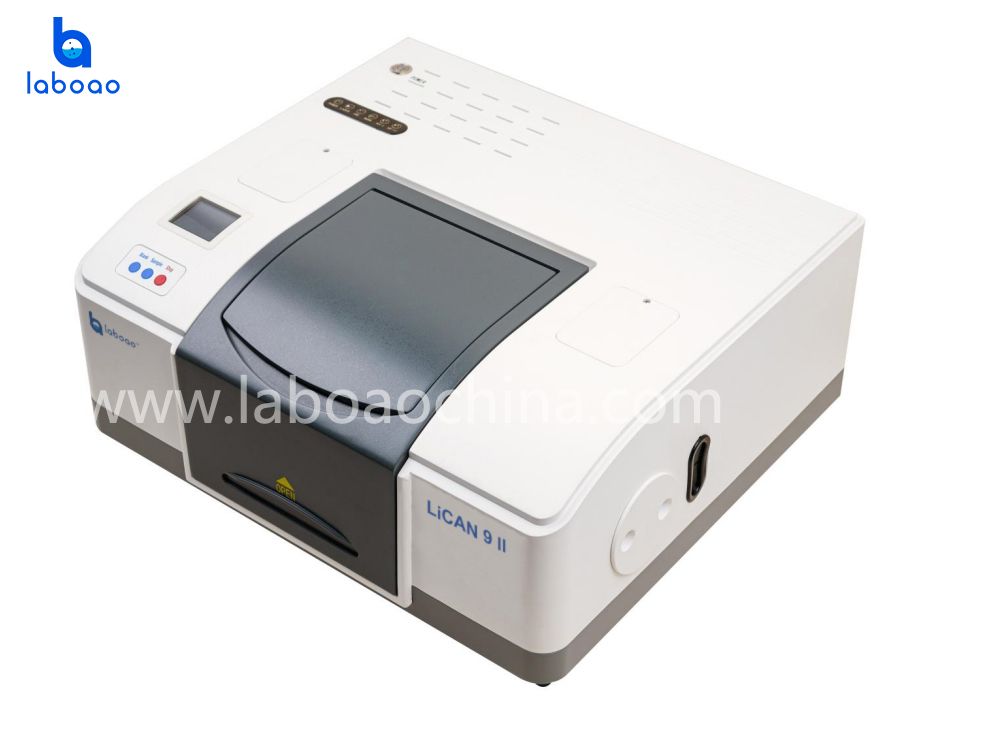

LiCAN 9 II fourier transform infrared spectrometer has real-time on-line monitoring and an optional moisture-proof ZnSe beam splitter. It is widely used in organic compounds, inorganic compounds, and polymerization. Qualitative and quantitative analysis of objects, etc., with strong expansion functions, can be connected to diffuse reflection, ATR attenuated total reflection, non-contact external reflection, etc., with excellent performance.
1.Intelligent human-computer interaction design, whether you have been in contact with Fourier infrared software or not, you can quickly and skillfully operate it;
2.Unique data collection preview full monitoring mode, the collection process can be seen at a glance;
3.The whole machine is integrated with mold forming, and the main parts are positioned against the needle without adjustment. Users can replace the light source, detector, beam splitter, etc. by themselves, which is convenient and flexible. It completely solves the problem that the traditional optical structure is not easy to maintain, and the user can install and easily replace the optical components by themselves;
4.Equipped with an intelligent humidity automatic reminder device, which reduces the workload of operators on instrument maintenance, and the electronic humidity digital visual display function will automatically remind users to replace the desiccant, solving the biggest hidden danger in the process of infrared use;
5.The self-inspection program of the instrument can self-inspect the various indicators of the instrument at any time, and has real-time online diagnosis of hardware;
6.The software is more powerful: it has self-diagnosis function to ensure that the instrument status and test parameters are correct; powerful data processing and analysis software can easily handle operations such as peak marking, peak area integration, and baseline calibration; infrared software: Chinese version 32-bit processing software . Including: infrared control, spectrum processing, data conversion, multi-component quantitative and other operating software; H2O/CO2 automatic compensation software, self-test software; macro program software;
7.Hardware real-time online diagnosis: continuous online monitoring of all optical components (laser, light source, detector, beam splitter); ensure that the instrument is always in the best working condition, and the measurement spectrum is accurate and reliable. Hardware real-time online diagnosis: continuous online monitoring of all optical components (laser, light source, detector, beam splitter); to ensure that the instrument is always in the best working condition, software H2O/CO2 automatic compensation software, automatically remove water and carbon dioxide in the air;
8.The overall sealed and dry design of the optical table improves the light transmission efficiency and has an excellent moisture-proof effect. It can adapt to various operating environments and reduce the impact of air absorption;
9.The instrument is equipped with analysis software and can be equipped with standard transmission accessories, such as liquid pool or KBr tablet sample preparation accessories. The sample compartment can be easily installed with ATR sample preparation accessories, which can speed up sample preparation time, shorten cleaning time, and expand instrument functions;
10.Optional universal ATR accessories are used for single reflection and pressurized ATR accessories of the sample chamber, including purge joints, ZnSe crystals and rotary presses. It can test liquids, semi-liquids, solids, small particles, single fibers or harder materials (such as polymers, rubber, coatings, fibers, etc.). Economical and practical, with a wide range of samples and no need for sample preparation;
11.Super-large sample chamber design, convenient to expand various infrared accessories;
12.Equipped with professional spectrogram automatic comparison and analysis software, it can realize the comparison between one spectrogram and multiple spectrograms, or compare multiple spectrograms with each other, and automatically issue an experimental test report.
13.The optional cloud platform can realize real-time query of data, remote warning, remote alarm of humidity, remote monitoring of voltage and current, etc.
14.It also integrates automatic acquisition function and online real-time reaction monitoring software, which is suitable for the dynamic mechanism research of intermediate reaction processes such as chemical and pharmaceutical synthesis reactions, catalytic reactions, and electrochemical reactions.
15.Integrated panel scanning control and standardized operation process SOP creation buttons, simplify the user operation interface, standardize and optimize operations, and effectively improve work efficiency.
Model | LiCAN9 II |
Spectral range | 7800~350cm-1 |
Resolution | Better than 1.0 cm-1, continuously adjustable. |
100%τ line inclination range | better than 0.5τ% (2200~1900cm-1) |
Signal-to-noise ratio | 45000:1 (P-P value, 4cm-1, one minute scan) |
Beam splitter | Germanium-plated imported KBr substrate |
Light source | Imported high-energy, high-efficiency, long-life light source with automatic sleep function to improve the life of the light source. |
Interferometer | 30 degree incident angle Michelson interferometer |
Receiver | Imported high-sensitivity DLATGS receiver with moisture-proof film |
Data transmission interface | network cable interface, can also be transferred to USB2.0 |
Support system | Windows 7, Windows 8, Windows 10, Windows 11 |
