Fourier Transform Infrared FTIR Spectrometer

Fourier Transform Infrared Spectrometer (abbreviated as FTIR Spectrometer), abbreviated as Fourier Infrared Spectrometer, can be used for qualitative and quantitative analysis of samples. It is widely used in medicine and chemical industry, geology, petroleum, coal, environmental protection, Customs, gem identification, criminal investigation identification and other fields.
  • ModelLiCAN 9
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

6 Advantages Of LABOAO FTIR Spectrometer

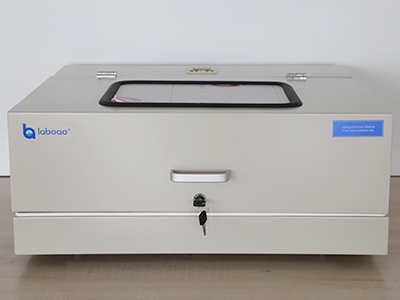

Fourier Transform Infrared FTIR Spectrometer detail - The design of the all-aluminum body is stronger, and the sub-chamber design ensures that the chambers do not affect each other, ensures that the chamber is sealed and dry, and can effectively resist external solvents and water vapor.
1. The design of the all-aluminum body is stronger, and the sub-chamber design ensures that the chambers do not affect each other, ensures that the chamber is sealed and dry, and can effectively resist external solvents and water vapor.

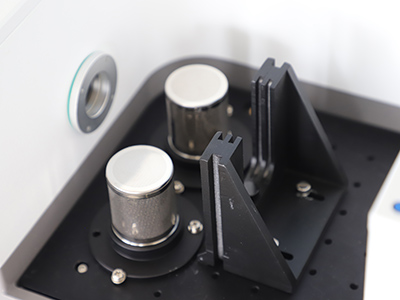

Fourier Transform Infrared FTIR Spectrometer detail - It has the functions of three-dimensional laser control automatic adjustment and high-speed scanning dynamic adjustment to ensure the stability and accuracy of long-term testing.
2. It has the functions of three-dimensional laser control automatic adjustment and high-speed scanning dynamic adjustment to ensure the stability and accuracy of long-term testing.

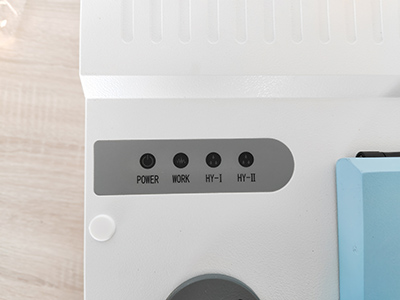

Fourier Transform Infrared FTIR Spectrometer detail - The status of the instrument is monitored throughout the process, and the humidity is directly displayed. It will automatically remind the user to replace the desiccant, which solves the biggest hidden danger in the use of infrared.
3. The status of the instrument is monitored throughout the process, and the humidity is directly displayed. It will automatically remind the user to replace the desiccant, which solves the biggest hidden danger in the use of infrared.

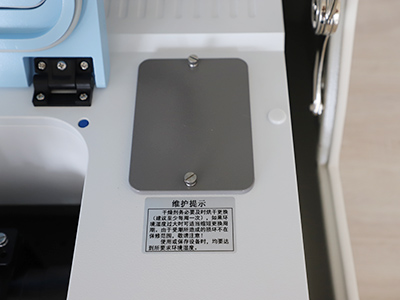

Fourier Transform Infrared FTIR Spectrometer detail - The specially treated moisture-proof window design of the sealed and dry optical chamber allows direct observation without opening the cover, and uses imported high-energy, high-efficiency and long-life light sources.
4. The specially treated moisture-proof window design of the sealed and dry optical chamber allows direct observation without opening the cover, and uses imported high-energy, high-efficiency and long-life light sources.

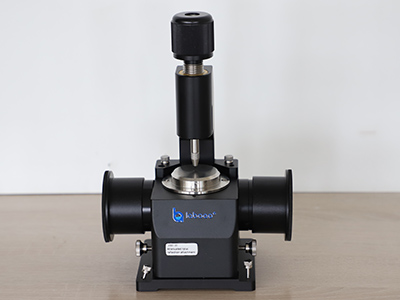

Fourier Transform Infrared FTIR Spectrometer detail - Universal Reflector ATR Accessories, optional crystals such as diamond, germanium, ZnSe, etc.
5. Universal Reflector ATR Accessories, optional crystals such as diamond, germanium, ZnSe, etc.

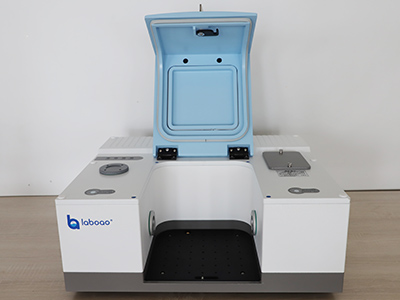

Fourier Transform Infrared FTIR Spectrometer detail - Removable sample compartment cover, large sample compartment design, easy to expand various infrared accessories.
6. Removable sample compartment cover, large sample compartment design, easy to expand various infrared accessories.

DESCRIPTION

LiCAN 9 Fourier infrared spectrometer, introduce  foreign advanced technology ,and independent research and development of a cost-effective meticulously Fourier transform infrared spectrometer, which can be widely used in pharmaceutical, chemical, food, petrochemical, jewelry, polymers, semiconductors, and materials science, and other industries, expand function is strong, can connect all kinds of conventional transmission, diffuse, ATR attenuated total reflection, non-contact accessories such as external reflection, both used in colleges and universities, research institutions, and is used in the industrial applications of QA/QC analysis, LiCAN 9 will be your perfect choice.

FEATURES

1. Intelligent human-computer interaction design, whether you have been used about Fourier infrared software or not, can be quickly and skillfully operated;

2. Equipped with intelligent humidity automatic remind device, reduce the workload of operators of equipment maintenance, electronic humidity digital visual display function, automatically remind user to replace desiccant, solve in the course of using the infrared biggest hidden danger;

3. Interferometer: the latest maglev plane mirror electromagnetic driver, with 3d laser control, continuous automatic adjustment and DSP digital control, automatic optimization system energy, without manual adjustment.

4. Beam splitter: imported KBr substrate plating germanium.

5. Receiver: imported high performance DLATGS detector with moisture-proof film, which can be automatically identified by the instrument, is superior to the 24-bit high precision A/D converter of 500KHz to ensure fast and accurate collection of spectral data.

6. Data transmission interface: standard USB2.0 high-speed two-way communication

7. Support system: Windows XP, Windows Vista, Windows 7, Windows 8

8. Stronger software function: with self-diagnosis function, the instrument state and test parameters are ensured to be correct; Strong data processing and analysis software, easy to handle peak marking, peak area integration, baseline calibration and other operations; Infrared software: Chinese language 32 bit processing software. Including: infrared control, spectral processing, data conversion, multicomponent quantitative and other operating software; H2O/CO2 automatic compensation software, self-inspection software; Macro software;

9. Hardware real-time online diagnosis: hardware real-time online diagnosis: continuously and online monitoring of all optical components (laser, light source, detector, beam splitter); Ensure the instrument is always in the best working condition. The software H2O/CO2 automatic compensation software will automatically remove water and carbon dioxide from the air.

10. The whole sealing and drying design of the optical platform improves the transmission efficiency of light, and has excellent moisture-proof effect. It can adapt to various operating environments and reduce the influence of air absorption.

11. LiCAN 9 Fourier infrared spectrometer with analysis software and can assemble standard transmission accessories, such as sample preparation accessories for liquid pools or KBr pressure plates. The sample warehouse can facilitate the installation of ATR  accessories, accelerate sample preparation time, shorten cleaning time, and expand the function of the instrument.

12. It is equipped with a professional data analysis system of infrared spectrogram, automatic spectrogram retrieval and analysis of unknown samples, and can establish its own spectrogram database.

13. Light source: long-life, high-energy air-cooled medium infrared light source, pre-alignment, accurate positioning, external wireless access to the light source without opening the optical cover. No tool adjustment, 3 seconds to achieve stability. Exclusive with automatic sleep function, improve the life of light source.

14. Permanent collimation path: the optical platform adopts the design of permanent collimation path. All components adopt pin positioning mode, namely plug and play, which allows users to install and easily replace optical components. The optical mirror uses the whole cutting diamond.


Five significant advantages:

1. The all-aluminum body design is more sturdy, and the split-cavity design ensures that the cavities do not affect each other, and the cavity is sealed and dry, which can effectively resist external solvents and water vapor.

2. With three-dimensional laser control automatic adjustment and high-speed scanning dynamic adjustment functions to ensure the stability and accuracy of long-term testing. The design of super large sample compartment makes it convenient to expand various infrared accessories.

3. The state of the instrument is monitored throughout the entire process, and the humidity is digitally displayed. It will automatically remind the user to replace the desiccant to solve the biggest hidden danger during the use of infrared.

4. The sealed and dry optical warehouse has a specially treated moisture-proof window design, no need to open the lid for direct observation, imported high-energy, high-efficiency and long-life light source, the light source has a unique automatic sleep technology, thereby increasing the life of the machine and the light source.

5. The interferometer and receiver are equipped with dual drying units, intelligent dual humidity automatic reminder, the drying unit is simple and convenient to replace the desiccant without being poured out and can be dried directly and can be used again, reducing the workload of the experimenter on the maintenance of the instrument.

SPECIFICATIONS

Model

LiCAN 9

Spectral range

7800 350 cm-1

Resolution

better than 1.0 cm-1, continuously   adjustable.

100% τ line tilt range

better than 0.5τ% (2200 ~ 1900cm-1)

Signal to noise ratio

30000: 1 (P-P value, 4cm-1, one minute   scan)

Beam splitter

imported KBr substrate with germanium   plating

Light source

Imported high-energy, high-efficiency,   long-life light source with automatic sleep function to increase the life of   the light source.

Interferometer

Michelson interferometer with 30   degree incident angle

Receiver

Imported high-sensitivity DLATGS   receiver with moisture-proof membrane

Data transmission interface

USB2.0

Supported systems

Windows XP, Windows Vista, Windows 7,   Windows 8
