LCD Cleveland Petroleum Open-Cup Flash Point Tester LCD Cleveland Petroleum Open-Cup Flash Point Tester LCD Cleveland Petroleum Open-Cup Flash Point Tester LCD Cleveland Petroleum Open-Cup Flash Point Tester
LCD Cleveland Petroleum Open-Cup Flash Point Tester LCD Cleveland Petroleum Open-Cup Flash Point Tester LCD Cleveland Petroleum Open-Cup Flash Point Tester LCD Cleveland Petroleum Open-Cup Flash Point Tester

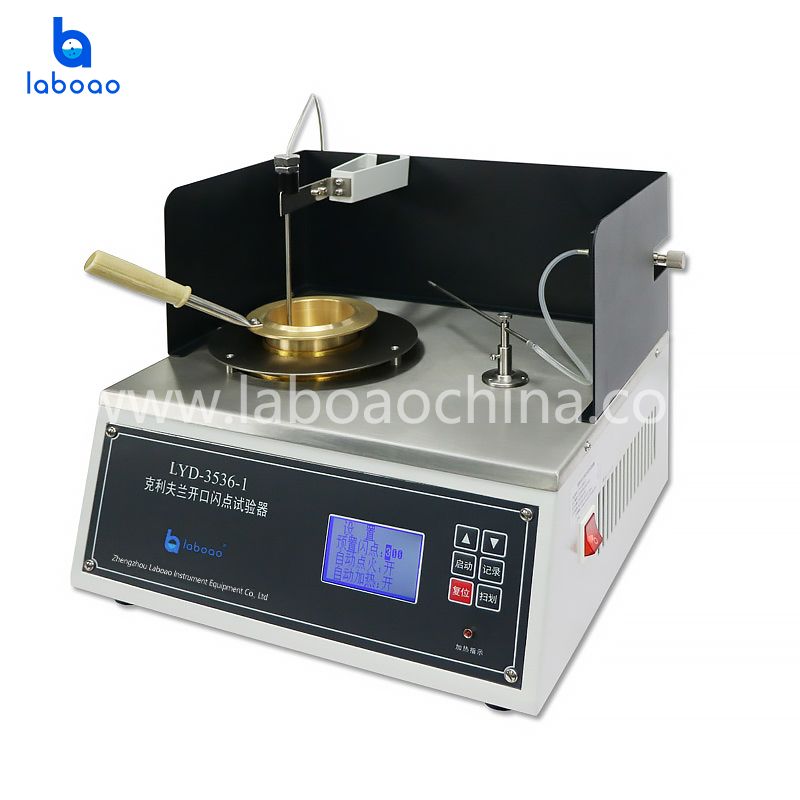

LCD Cleveland Petroleum Open-Cup Flash Point Tester

Determines flash and fire points by the Cleveland Open- Cup method. Consists of test flame applicator, brass test cup, thermometer support, heating plate and electric heater. Applicator is precisely aligned per specifications and pivots for test flame application at specified temperature intervals.
  • ModelLYD-3536-1
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat



This instrument is designed and made as per GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland open cup method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.


1. It adopts technology of single chip microcomputer and LCD screen. English man-machine interface. The heating device is continuously adjustable. Easy to set parameters.

2. The LCD screen has prompt menu, prompt type input for operation interface. It shows set parameters and real-time display sample temperature and other parameters. Press the record key when flash point appearing. The screen will display and save flash point value.

3. It is newly design and small structure. Stainless steel working table make it elegant and beautiful. The operator can do determination as long as connecting with coal gas or other civil gas. Easy to use and results are exact.

4. It is equipped with wind-shelter and flame extinguishing cover which are accord with requirements of test.

5. Accurate heating rate. The instrument can do test automatically.

Attention: Operator only need to observe the flash point appearing. The cost performance is high.




Power supply

AC( 220±10% )V, 50Hz

Maximum power consumption


Heating device

Electric furnace heating, no naked fire, explosion   prevented. The power is adjustable from 0W to 600W. The max heating temperature   can reach 400.

Temperature control

Single chip microcomputer. The heating rate can meet   requirements of standards GB/T 3536-2008 and ASTM D92.



LCD shows temperature parameters





Flash point detecting device

It applies the test flame automatically

Igniting device

Ignition source

coal gas (or civil gas)

Flame diameter


Temperature sensor

RTD, PT100

Suitable environment

Ambient temperature


Relative humidity



340mm×320mm×450mm (Temperature sensor is included)
