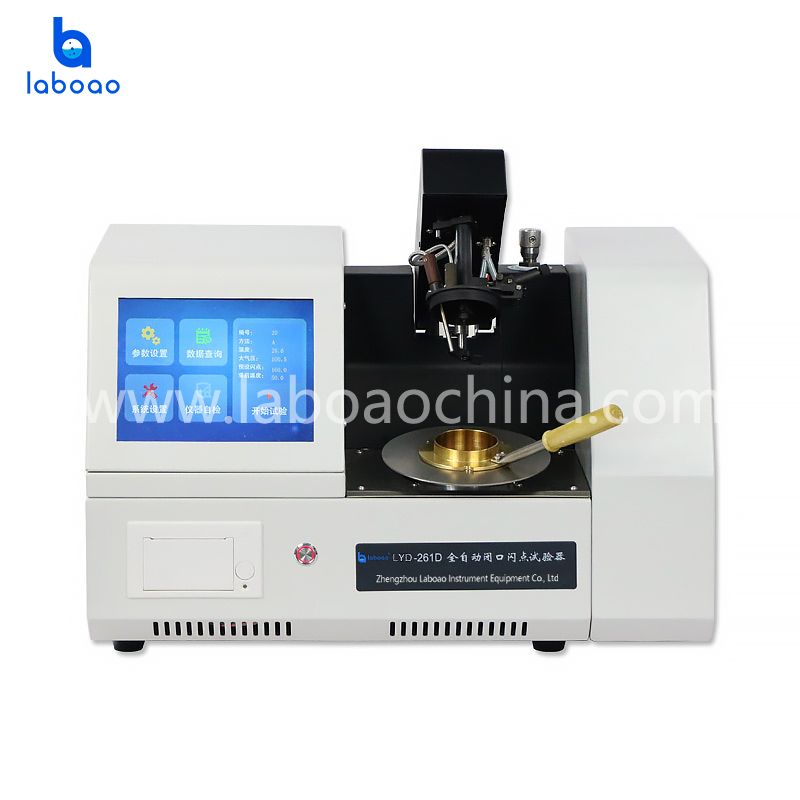

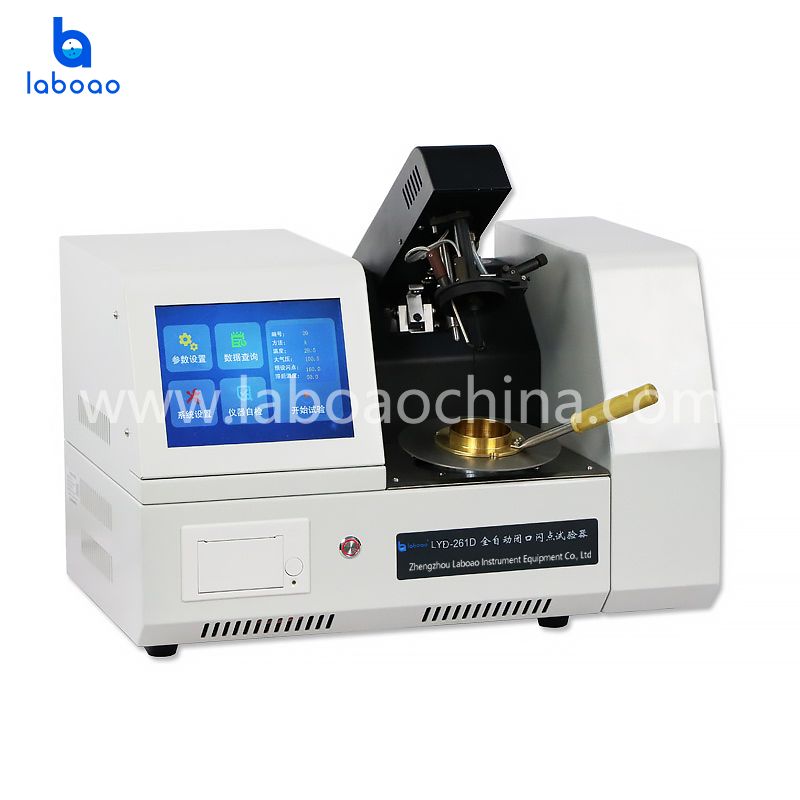

Automatic Closed Cup Flash Point Tester For Petroleum And Lubricating Oil
- ModelLYD-261D
- BrandLABOAO
- PortAny port in China
- PackagePlywood case package
DESCRIPTION
This instrument is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Method for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.
FEATURES
1. It adopts an 8-inch IPS high-definition capacitive screen.
2. Using 32-bit ARM processor and high-precision AD chip, the test data and parameters are recorded in real time and displayed by curve.
3. Equipped with Bluetooth interface. The user can query test data anytime.
4. Remote automatic upgrade to obtain the latest version, remote prediction, abnormal early warning, comprehensive evaluation and maintenance of instrument operation status.
5. Automatic measurement of atmospheric pressure, automatic correction of flash point value.
6. Temperature rise, cover opening, ignition, detection and printing data are completed automatically, and the test arm rises and falls automatically.
7. Electronic ignition, gas flame, automatic air cooling at the end of the test.
SPECIFICATIONS
Model | LYD-261D | ||
Power supply | AC( 220±10% )V, 50Hz | ||
Total power consumption | ≤600W | ||
Flash point temp. | Range | Ambient to 400℃ | |
Accuracy | 0.1℃ | ||
Stirring rate | Procedure A and C: (90~120)RPM, Procedure B: (250±10)RPM Automatic control and manually adjustable. | ||
Heating rate | Procedure A: (5~6)℃/min, Procedure B: (1~1.5)℃/min Procedure C: (3.0±0.5)℃/min | ||
Igniting mode | (1)Electric ignition. (2)Diameter of igniter:0.7mm~0.8mm | ||
Data transmission mode | Bluetooth | ||
Suitable environment | Ambient temperature | (15~35)℃ | |
Relative humidity | ≤85% | ||
Dimension | 510mm×320mm×330mm | ||
Net weight | 20kg |
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of flash point tester machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
