LHL Series Electric Thermostatic Drying Oven LHL Series Electric Thermostatic Drying Oven LHL Series Electric Thermostatic Drying Oven
LHL Series Electric Thermostatic Drying Oven LHL Series Electric Thermostatic Drying Oven LHL Series Electric Thermostatic Drying Oven

LHL Series Electric Thermostatic Drying Oven

It is suitable for drying, melting wax and sterilization in industrial and mining enterprises, laboratories and scientific research units
  • ModelLHL Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

VIDEO

5 Advantages Of LABOAO Electric Drying Oven

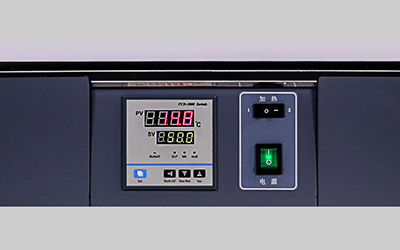

LHL Series Electric Thermostatic Drying Oven detail - Multi-function control panel
1. Multi-function control panel

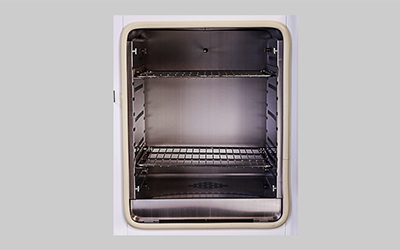

LHL Series Electric Thermostatic Drying Oven detail - Multi-layer and multi-space partition design
2. Multi-layer and multi-space partition design
LHL Series Electric Thermostatic Drying Oven detail - Vertical double wind channel design
3. Vertical double wind channel design

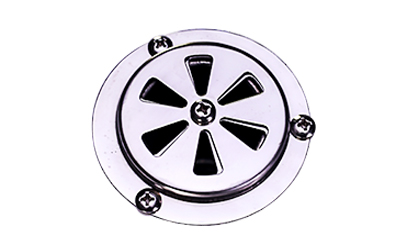

LHL Series Electric Thermostatic Drying Oven detail - Vent
4. Vent
LHL Series Electric Thermostatic Drying Oven detail - Heating curve
5. Heating curve

DESCRIPTION

The LHL series of electric heating constant temperature drying oven adopts LCD multi-data operation display, with power failure memory, compensation function, and overheating alarm and prevention function. The operating temperature is room temperature +10~300 degrees Celsius, the PID temperature is accurately controlled and the temperature distribution accuracy is extremely high at +-3.5%, and the volume is 30L, 45L, 60L, 125L, etc. to meet different needs.

FEATURES

1. High precision, high efficiency, safety and wide range.

2. Convenient operation, fixed value operation, timing operation and automatic stop.

3. Dedicated function keys realize temperature setting.

4. Auxiliary menu, realize overheating alarm, deviation correction, and menu lock.

5. LCD multi-data full-screen operation display, power failure memory, power failure compensation

6. overheating alarm, menu lock, overheating prevention.

SPECIFICATIONS

Model

LHL-30B

/LHLL-30BE

LHL-45B

/LHLL-45BE

LHL-65B

/LHLL-65BE

LHL-125B

/LHLL-125BE

Mode

Natural convection



Performance

Temp range

RT+10~300℃

Temp resolution

0.1℃

Temp fluctuation

+-1℃

Temp distribution

+-3.5%





Constitution

Interior

stainless steel plate

Exterior

cold-rolled steel plate, surface coating with chemical resistance

Thermal insulation material

aluminum silicate fiber

Heater

Ni-Cr alloy heating wire OCr27AL7Mo2

Rated power

0.8kw

1.0kw

1.5kw

2.5kw

Exhaust port

I.D. 28mm*1, top







Controller

Temp control mode

B-type: digital tube dual-row PID

BE-type:LCD dual row PID

Temp setting method

touch four buttons to set

Temp display method

B-type:

Measuring temp display: 4-digit digital upper;

C-Set temp display: 4-digit digital lower

BE-type:

Measuring temp display: LCD upper ;

Set temp display: LCD lower

Timer

0-9999 minutes ((with timing wait function)

Running function

fixed value running, timing running, automatic stop

Program mode

optional

Additional functions

deviation correction, menu button lock, power failure compensation, power   failure memory(BE-type:prevent overheating)

Sensor

Pt100

Safety device

overheating alarm

(BE-type:overheating prevention)







SPEC

Internal dimensions(W*L*Hmm)

310*310*310

350*350*350

400*360*450

500*450*550

External dimensions(W*L*Hmm)

445*487*671

485*527*722

534*538*822

634*628*922

Outer packaging size(W*L*Hmm)

570*570*820

600*600*857

670*620*960

760*700*1060

Internal volume

30L

45L

65L

125L

Partition bearing capacity

15kg

Partition layers

6 layers

7 layers

9 layers

13 layers

Space between partitions

35mm

Power supply(50/60Hz)

rated current

AC220/10.5A

AC220/5.5A

AC220/6.8A

AC220/11.4A

Net weight/Gross weight kg

37/32

37/43

43/49

60/66

Accessories

Partition

2 pieces

Shelves

4 pieces

Configuration that can be added

Partition, RS485 interface, printer, recorder, external communication,   remote control, program temperature controller, wireless SMS alarm, U disk   data storage
