LHL-DLT Series Electric Thermostatic Drying Oven

It is suitable for drying, melting wax and sterilization in industrial and mining enterprises, laboratories and scientific research units
  • ModelLHL-DLT Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

3 Advantages Of LABOAO Electric Drying Oven

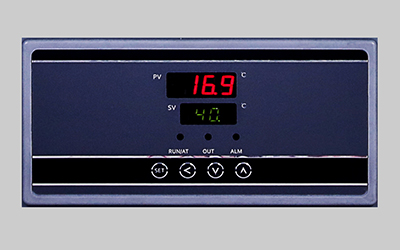

LHL-DLT Series Electric Thermostatic Drying Oven detail - LCD Multi-function control panel
1. LCD Multi-function control panel

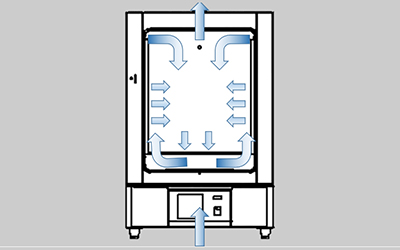

LHL-DLT Series Electric Thermostatic Drying Oven detail - Vertical double wind channel design
2. Vertical double wind channel design

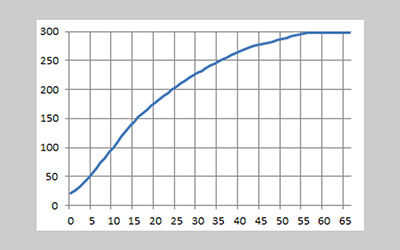

LHL-DLT Series Electric Thermostatic Drying Oven detail - Heating curve
3. Heating curve


DESCRIPTION

The LWL-DLT series of electric heating constant temperature drying oven adopts LCD multi-data operation display, with power failure memory, compensation function, and overheating alarm and prevention function. The operating temperature is room temperature +10~300 degrees Celsius, the PID temperature is accurately controlled and the temperature distribution accuracy is extremely high at +-3.0%, and T-type LCD touch screen program control can store 50 experimental programs, and single-stage temperature control and program temperature control can be mutually converted.

The volume is 30L, 45L, 65L,85L,125L, etc. to meet different needs.

FEATURES

1. High precision, high efficiency, safety and wide range.

2. Convenient operation, fixed value operation, timing operation and automatic stop.

3. Dedicated function keys realize temperature setting.

4.The auxiliary menu can realize over-rise alarm, deviation correction, and menu lock. ·

5.Insulated door technology, the outer door has low temperature and does not deform when used under high temperature conditions. ·

6.The pull-out tray partition design is convenient and quick to take and place samples.

7. L-type LCD multi-data full-screen operation display, power outage memory, power outage compensation; T-type LCD touch screen program controller, can store 50 experimental procedures, single-stage temperature control and program temperature control can be interchanged

8. The self-developed digital display over-rise preventer makes the temperature control more accurate, stable, safe and reliable.

9. overheating alarm, menu lock, overheating prevention.

SPECIFICATIONS


Model

Digital type(D)

LHL-30D

LHL-45D

LHL-65D

LHL-85D

LHL-125D

Liquid crystal type(L)

LHL-30L

LHL-45L

LHL-65L

LHL-85L

LHL-125L

Touch screen type(T)

LHL-30T

LHL-45T

LHL-65T

LHL-85T

LHL-125T

Mode

Natural convection



Performance

Temp. range

RT+10~300

Temp. resolution

0.1

Temp. fluctuation

+-1

Temp. distribution

+-3.0%





Constitution

Interior

mirror stainless steel plate

Exterior

cold-rolled steel plate, surface coating with chemical resistance

Thermal insulation material

aluminum silicate fiber

Heater

Ni-Cr alloy heating wire OCr27AL7Mo2

Rated power

0.8kw

1.0kw

1.5kw

2.0kw

2.5kw

Exhaust port

I.D. 28mm*1, top







Controller

Temp control mode

D-type: digital tube dual-row PID

L-type:LCD dual row PID

T-type:5 inch color touch screen fuzzy PID

Temp setting method

D/L-type: Tap four buttons to set

T-type:Touch screen setting

Temp display method

D-type:

Measuring temp display: 4-digit digital upper ;

Set temp display: 4-digit digital lower

L-type:

Measuring temp display: LCD upper;

Set temp display: LCD lower

T-type:

Measuring temp display: Touch screen upper;

Set temp display: Touch screen lower

Timer

0-9999 minutes ((with timing wait function)

Running function

fixed value running, timing running, automatic stop

Program mode

D/L-type:optional,T-type:Single-stage temp control and program temp   control can be interchanged; store 50 experimental programs, each program can   be set with 50 steps, each step can be set for 0-6000 minutes, adjustable

Additional functions

deviation correction, menu button lock, power failure compensation, power   failure memory(L/T-type:prevent overheating)

Sensor

Pt100

Safety device

over-rise prevention

(D-type:optional,L/T-type:standard)







SPEC

Internal dimensions(W*L*Hmm)

310*310*310

350*350*350

400*360*450

450*450*450

500*450*550

External dimensions(W*L*Hmm)

428*505*710

468*538*753

518*550*860

567*640*853

617*639*953

Outer packaging size(W*L*Hmm)

552*578*840

592*618*880

642*628*980

692*718*980

742*718*1080

Internal volume

30L

45L

65L

85L

125L

Partition bearing capacity

15kg


Partition layers

5 layers

6 layers

8 layers

8 layers

11 layers

Space between partitions

40mm


Power supply(50/60Hz)rated current

AC220/3.6A

AC220/5.5A

AC220/7.2A

AC220/8.2A

AC220/10.5A

Net weight/Gross weight kg

32/37

37/43

43/49

49/55

62/68

Accessories

Partition

2 pieces

Configuration that can be added

Partition, RS485 interface, printer, recorder, external communication,   remote control, program temperature controller, wireless SMS alarm, U disk   data storage
