LGL Series Vertical Forced Air Drying Oven

The electric blast drying box adopts electric heating method to carry out the blast cycle drying test. The blast drying box blows out hot air through a circulating fan to ensure the temperature balance in the box. This is a commonly used instrument and equipment, mainly used for drying samples, and can also provide the temperature environment required for the experiment. Dry ovens are used in various industries, such as chemical, pharmaceutical, foundry, automotive, food, machinery, etc.
  • ModelLGL Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

7 Advantages Of LABOAO Electric Drying Oven

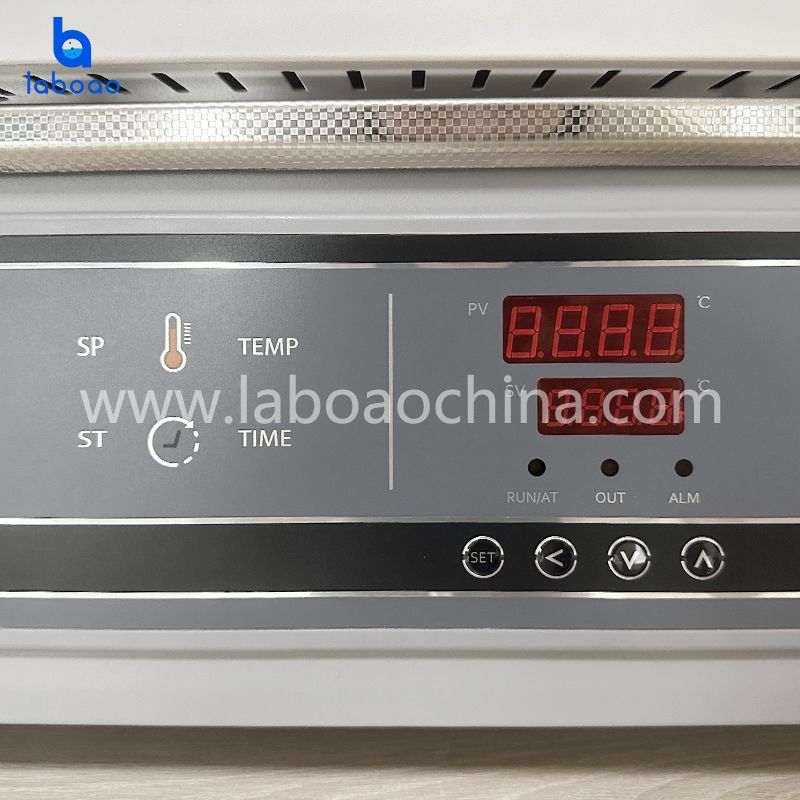

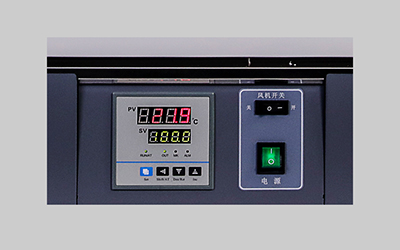

LGL Series Vertical Forced Air Drying Oven detail - Multi-function control panel
1. Multi-function control panel

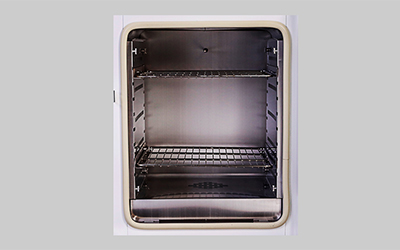

LGL Series Vertical Forced Air Drying Oven detail - Multi-layer and multi-space partition design
2. Multi-layer and multi-space partition design

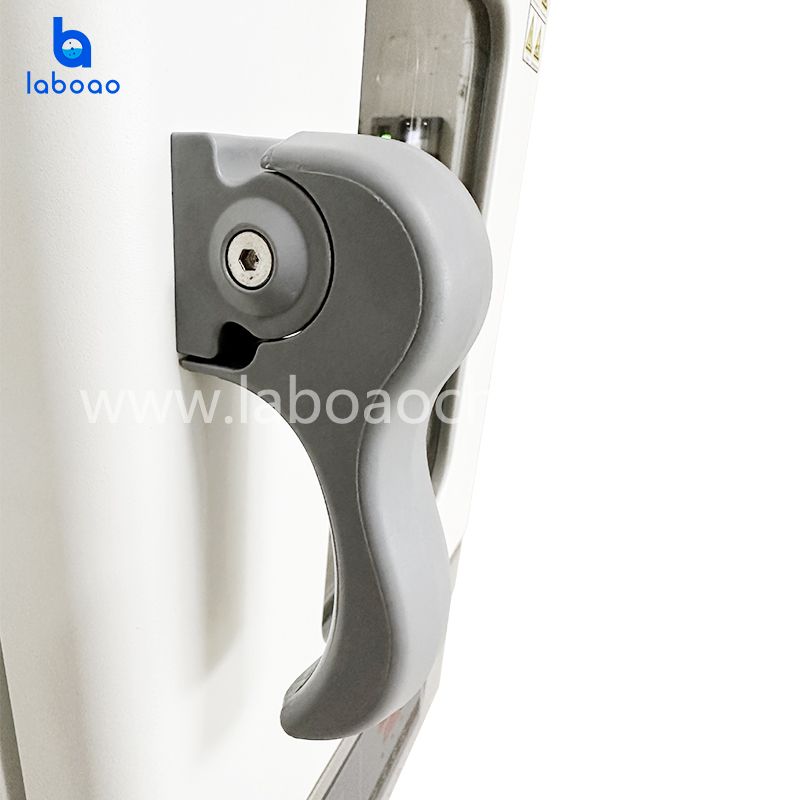

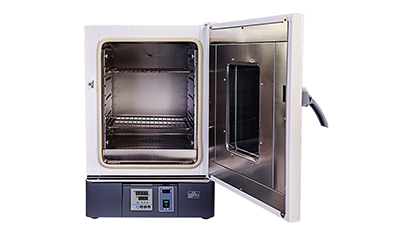

LGL Series Vertical Forced Air Drying Oven detail - Double-layer insulated door design
3. Double-layer insulated door design

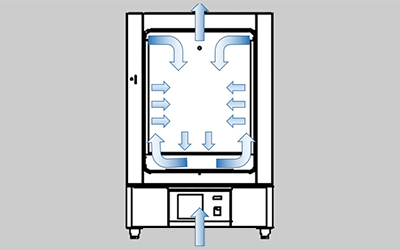

LGL Series Vertical Forced Air Drying Oven detail - Vertical double wind channel design
4. Vertical double wind channel design

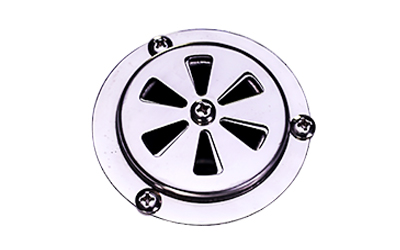

LGL Series Vertical Forced Air Drying Oven detail - Vent
5. Vent

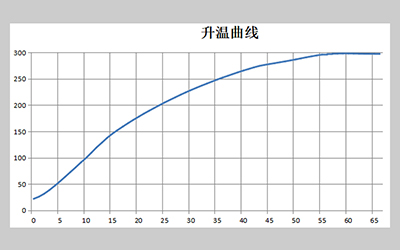

LGL Series Vertical Forced Air Drying Oven detail - Heating curve
6. Heating curve

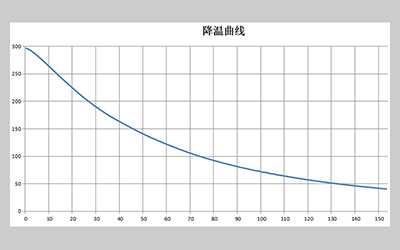

LGL Series Vertical Forced Air Drying Oven detail - Cooling curve
7. Cooling curve


DESCRIPTION

This equipment is composed of chamber body, heating system, electrical control system, air supply system, protection system, etc. The box body is made of high-quality cold-rolled steel plate, and the surface is electrostatically powder sprayed. The coating is hard and firm and has a strong anti-rust ability. The studio is made of high-quality stainless steel plates with rounded corners, smooth, smooth, and easy to clean. Between the box body and the working room, the insulation material is filled, which has a good heat preservation function, which effectively guarantees the stability and accuracy of the temperature in the box and the impact on the use environment.

FEATURES

1. High precision, high efficiency, safety, wide range;

2. Convenient operation, fixed temperature operation, timing function, automatic stop;

3. Dedicated function keys for temperature setting;

4. Auxiliary menu, realize over-rise alarm, deviation correction, and menu lock;

5. Vertical double air duct air jacket, turbo centrifugal forced air supply, more uniform temperature;

6. Adjustable speed fan enables light, small, powdery samples to be used;

7. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan is less than 50℃, and it can run for a long time and long life;

8. Insulated door technology, the outer door has low temperature and does not deform when used under high temperature conditions;

9. Pull-out tray shelf design, convenient and quick to take and place samples.

SPECIFICATIONS

Model

Digital type

LGL-30D

LGL-45D

LGL-65D

LGL-85D

LGL-125D

LGL-230D

LGL-625D

LCD type

LGL-30L

LGL-45L

LGL-65L

LGL-85L

LGL-125L

LGL-230L

LGL-625L

Touch screen Type

LGL-30T

LGL-45T

LGL-65T

LGL-85T

LGL-125T

LGL-230T

LGL-625T

Cycle Mode

Double duct forced   convection

Bottom duct   whirlwind

upper duct   whirlwind

Function

Temp. Range

RT+10-300

Temp. Resolution   Ratio

0.1

Temp. Motion

±1

Temp. Uniformity

±2.0%

Structure

Inner Chamber

Mirror stainless   steel;

Outer Shell

Cold rolling   steel electrostatic spraying exterior

Thermal   insulation material

Aluminum silicate   fiber

Heater

Stainless steel   heating tube

Nickel-chromium   alloy heating wire

Stainless steel   heating tube

Power rating

0.8kW

1.2kW

1.6kW

1.8KW

2.3kW

3.0KW

5.0KW

Exhaust hole

φ28mm*1 at the   top

φ28mm*2 at the   top

Controller

Temp. control   mode

D type: Two lines   LED display, PID;

L type: Two lines   LCD display, PID;

L type: 5 inch   color touch screen fuzzy PID

Temp. setting   mode

Touch button   setting

Temp. display   mode

D type: Two lines   4 digits LED Digital display:

measuring temp.   on the top and setting temp. on the bottom

L type: Two lines   LCD display:

measuring temp.   on the top and setting temp. on the bottom

T type: Two lines   touch screen display:

measuring temp.   on the top and setting temp. on the bottom

Timer

0-9999min(with   timing wait function)

Operation function

Fixed temperature   operation, timing function, auto stop.

Program mode

D/L type is   optional, T type single-stage temperature control and program temperature   control can be interchanged, 50 experimental programs can be stored, each   program can be set with 50 steps, and each step can be set for 0-6000   minutes, adjustable

Additional   function

Deviation   correction, menu button lock, power failure compensation, power-off parameter   memory; L&T type in addition: Over-rise preventer, adjustable speed fan

Sensor

Pt100

Specification

Inner Chamber   size(W*L*H)(mm)

310*310*310

350*350*350

400*360*450

500*450*550

500*450*550

600*500*750

660*760*1250

Exterior size   (W*L*H)(mm)

428*505*710

468*538*753

518*550*860

567*640*853

617*639*953

735*625*1220

900*960*1840

Packing size   (W*L*H)(mm)

552*578*840

592*618*880

642*628*980

692*718*980

742*718*1080

898*814*1347

1051*1060*1949

Volume

30L

45L

65L

85L

125L

230L

625L

Shelf number

5

6

8

8

11

17

7

Load per rack

15kg

Shelf space

40mm

35mm

150MM

(50/60HZ)Current   rating

AC220V/3.6A

AC220V/5.5A

AC220V/7.2A

AC220V/8.2A

AC220V/10.5A

AC220V/13.6A

AC380V/7.6A

optional   accessories

Shelf, RS485   interface, printer, recorder, external communication, remote control, program   temperature controller, wireless SMS alarm, U disk data storage
