L202 Series Electric Heating Constant Temperature Drying Oven
This product has been discontinued
This is a commonly used instrument and equipment. Drying ovens can be used in laboratory or industrial settings for a variety of tasks including evaporation, sterilization, temperature testing, and for incubating temperature sensitive experiments. Drying ovens provide a greater degree of evenness, control of temperature, rapid drying capabilities.
- ModelL202 Series
- BrandLABOAO
- PortAny port in China
- PackagePlywood case package
4 Advantages Of LABOAO Electric Drying Oven
![L202 Series Electric Heating Constant Temperature Drying Oven detail - Multi-function control panel]()

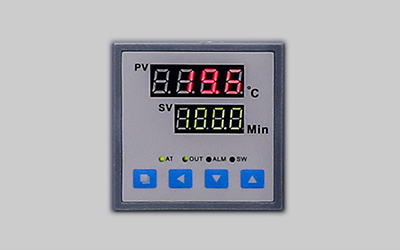

- 1. Multi-function control panel
![L202 Series Electric Heating Constant Temperature Drying Oven detail - Vent]()

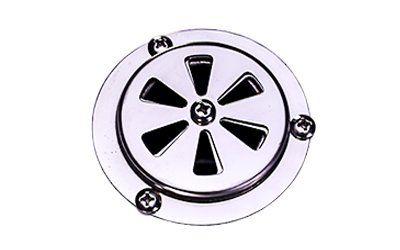

- 2. Vent
![L202 Series Electric Heating Constant Temperature Drying Oven detail - Drawer partition design]()

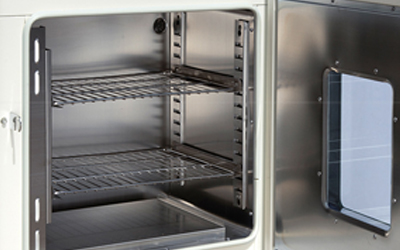

- 3. Drawer partition design
![L202 Series Electric Heating Constant Temperature Drying Oven detail - Heating curve]()

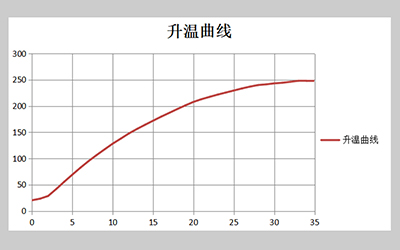

- 4. Heating curve
DESCRIPTION
This series of products adopts a horizontal box structure, which is small and easy to test and move. It is used for drying, baking, melting, disinfection and sterilization of non-flammable, non-explosive and non-volatile materials in industrial and mining enterprises, universities, biopharmaceuticals, food processing, scientific research, medical units and various laboratories. It is widely used for drying glassware, heat denaturation, heat hardening, heat softening, moisture removal of experimental samples, food and chemical substances, dry heat sterilization of utensils and utensils in bioengineering, and drying and aging of electronic components.
FEATURES
1. Klassieke natuurlijke convectie droogmethode;
2. Handige bediening, bediening met vaste temperatuur, timingfunctie, automatische stop;
3. Speciale functietoetsen voor temperatuurinstelling;
4. Hulpmenu, realiseer over-stijgingsalarm, afwijkingscorrectie, en menuslot;
SPECIFICATIONS
Model | L202-0AB | L202-1AB | L202-2AB | L202-3AB | |||
Cycle Mode | Natural convection | ||||||
Function | Temp. Range | RT+10-250℃ | |||||
Temp. Resolution Ratio | 0.1℃ | ||||||
Temp. Motion | ±1℃ | ||||||
Temp. Uniformity | ±3.5% | ||||||
Structure | Inner Chamber | High quality stainless steel | |||||
Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||||
Thermal insulation material | Aluminum silicate fiber | ||||||
Heater | Nickel-chromium alloy heating wire OCr27A17Mo2 | ||||||
Power rating | 1.2kW | 1.6kW | 2.0kW | 4.0kW | |||
Exhaust hole | φ28mm*2 at the back; Overhead test hole | ||||||
Controller | Temp. control mode | Two temperature section PID intelligent | |||||
Temp. setting mode | Touch button setting | ||||||
Temp. display mode | Two lines 4 digits LED Digital display: measuring temp. on the top and setting temp. on the bottom | ||||||
Timer | 0-9999min(with timing wait function) | ||||||
Operation function | Fixed temperature operation, timing function, auto stop. | ||||||
Program mode | Optional | ||||||
Additional function | Deviation correction, menu button lock, power failure compensation, power-off parameter memory | ||||||
Sensor | Pt100 | ||||||
Safety device | Over temperature sound-light alarm | ||||||
Specification | Inner Chamber size(W*L*H)(mm) | 350*350*350 | 450*350*450 | 550*450*550 | 600*500*750 | ||
Exterior size (W*L*H)(mm) | 652*528*580 | 752*520*676 | 852*572*776 | 861*669*995 | |||
Packing size (W*L*H)(mm) | 775*595*709 | 875*595*812 | 975*695*910 | 1020*804*1102 | |||
Volume | 43L | 71L | 136L | 225L | |||
Shelf number | 9 | 13 | 17 | 21 | |||
Load per rack | 15kg | ||||||
Shelf space | 25mm | ||||||
(50/60HZ)Current rating | AC220V/5.5A | AC220V/7.3A | AC220V/9.1A | AC220V/18.2A | |||
NW/GW (kg） | 33/43 | 40/50 | 53/68 | 77/95 | |||
Accessory | Shelf | 2 | |||||
Shelf frame | 4 | ||||||
optional accessories | Shelf, RS485 interface, printer, recorder, external communication, remote control, program temperature controller, wireless SMS alarm, U disk data storage | ||||||
