L101 Series Electric Forced Air Drying Oven

This product has been discontinued
Electric thermostatic drying oven adopts electric heating method to carry out blast cycle drying test. The blast drying oven is to blow out hot air through a circulating fan to ensure the temperature balance in the box. This is a commonly used instrument and equipment, mainly used to dry samples, and can also provide the temperature environment required for the experiment. Dry oven is used in various industries such as chemical, pharmaceutical, foundry, automobile, food, machinery and so on.
  • ModelL101 Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

3 Advantages Of LABOAO Electric Drying Oven

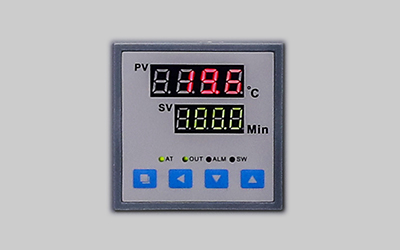

L101 Series Electric Forced Air Drying Oven detail - Multi-function control panel
1. Multi-function control panel
L101 Series Electric Forced Air Drying Oven detail - Vent
2. Vent

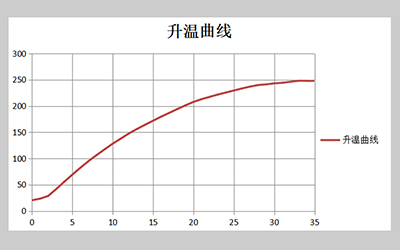

L101 Series Electric Forced Air Drying Oven detail - Heating curve
3. Heating curve

DESCRIPTION

This series of products adopts a horizontal box structure, which is small and easy to test and move. It is used for drying, baking, melting, disinfection and sterilization of non-flammable, non-explosive and non-volatile materials in industrial and mining enterprises, universities, biopharmaceuticals, food processing, scientific research, medical units and various laboratories. The desktop blast drying oven adopts a hot air circulation system composed of a fan that can continuously operate at high temperatures and a special air duct, and the temperature in the working room is uniform. It is widely used for drying glassware, heat denaturation, heat hardening, heat softening, moisture removal of experimental samples, food and chemical substances, dry heat sterilization of utensils and utensils in bioengineering, and drying and aging of electronic components.

FEATURES

1. The horizontal air circulation structure is conducive to air mixing, high space utilization, and fast drying rate;

2. Convenient operation, fixed temperature operation, timing function, automatic stop;

3. Dedicated function keys for temperature setting;

4. Auxiliary menu, realize over-rise alarm, deviation correction, and menu lock;

5. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan is less than 50℃, and it can run for a long time and long life.

SPECIFICATIONS

Model

L101-0AB

L101-1AB

L101-2AB

L101-3AB

Cycle Mode

Forced convection

Function

Temp. Range

RT+10-250

Temp. Resolution   Ratio

0.1

Temp. Motion

±1

Temp. Uniformity

±2.5%

Structure

Inner Chamber

High   quality stainless steel

Outer Shell

Cold rolling   steel electrostatic spraying exterior

Thermal   insulation material

Aluminum silicate   fiber

Heater

Stainless steel   heating tube;

Nickel-chromium   alloy heating wire

Power rating

1.2kW

1.6kW

2.0kW

4.0kW

Exhaust hole

φ28mm*2 at the   back; Overhead test hole

Controller

Temp. control   mode

Two temperature   section PID intelligent

Temp. setting   mode

Touch button   setting

Temp. display   mode

Two lines 4   digits LED Digital display:

measuring temp.   on the top and setting temp. on the bottom

Timer

0-9999min(with   timing wait function)

Operation   function

Fixed temperature   operation, timing function, auto stop.

Program mode

Optional

Additional   function

Deviation   correction, menu button lock, power failure compensation, power-off parameter   memory

Sensor

Pt100

Safety device

Over temperature   sound-light alarm

Specification

Inner Chamber   size(W*L*H)(mm)

350*350*350

450*350*450

550*450*550

600*500*750

Exterior size   (W*L*H)(mm)

652*528*580

752*520*676

852*572*776

861*669*995

Packing size   (W*L*H)(mm)

775*595*709

875*595*812

975*695*910

1020*804*1102

Volume

43L

71L

136L

225L

Shelf number

9

13

17

21

Load per rack

15kg

Shelf space

25mm

(50/60HZ)Current   rating

AC220V/5.5A

AC220V/7.3A

AC220V/9.1A

AC220V/18.2A

NW/GW (kg

33/43

40/50

53/68

77/95

Accessory

Shelf

2

Shelf frame

4

optional   accessories

Shelf, RS485   interface, printer, recorder, external communication, remote control, program   temperature controller, wireless SMS alarm, U disk data storage
