Electric thermostatic drying oven adopts electric heating method to carry out blast cycle drying test. The blast drying oven is to blow out hot air through a circulating fan to ensure the temperature balance in the box. This is a commonly used instrument and equipment, mainly used to dry samples, and can also provide the temperature environment required for the experiment. Dry oven is used in various industries such as chemical, pharmaceutical, foundry, automobile, food, machinery and so on.
This series of products adopts a horizontal box structure, which is small and easy to test and move. It is used for drying, baking, melting, disinfection and sterilization of non-flammable, non-explosive and non-volatile materials in industrial and mining enterprises, universities, biopharmaceuticals, food processing, scientific research, medical units and various laboratories. The desktop blast drying oven adopts a hot air circulation system composed of a fan that can continuously operate at high temperatures and a special air duct, and the temperature in the working room is uniform. It is widely used for drying glassware, heat denaturation, heat hardening, heat softening, moisture removal of experimental samples, food and chemical substances, dry heat sterilization of utensils and utensils in bioengineering, and drying and aging of electronic components.
1. The horizontal air circulation structure is conducive to air mixing, high space utilization, and fast drying rate;
2. Convenient operation, fixed temperature operation, timing function, automatic stop;
3. Dedicated function keys for temperature setting;
4. Auxiliary menu, realize over-rise alarm, deviation correction, and menu lock;
5. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan is less than 50℃, and it can run for a long time and long life;
6. Anti-pinching door handle, convenient and flexible to open the door;
7. Tray-type partition design, convenient and quick to take and place samples;
8. Embossed stainless steel door bottom strip, easy to clean.
Temp Resolution Ratio
DB model: High quality stainless steel;
Cold rolling steel electrostatic spraying exterior
Thermal insulation material
Aluminum silicate fiber
Stainless steel heating tube
φ28mm*1; Overhead test hole
Temp control mode
Two temperature section PID intelligent
Temp. setting mode
Touch button setting

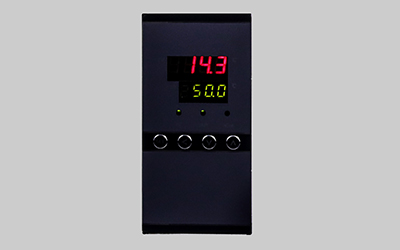

Temp display mode
Two lines 4 digits LED Digital display: measuring temp. on the top and setting temp. on the bottom
0-9999min(with timing wait function)
Fixed temperature operation, timing function, auto stop.
Deviation correction, menu button lock, power failure compensation, power-off parameter memory
Over temperature sound-light alarm
Inner Chamber size(W*L*H) (mm)
Exterior size (W*L*H)(mm)
Packing size (W*L*H)(mm)
Load per rack
Shelf, RS485 interface, printer, recorder, external communication, remote control, program temperature controller, wireless SMS alarm, U disk data storage
