LGP Series Laboratory Dry Oven & Incubator Dual-use Box

It mainly destroys the cell protoplasts by oxidation and kills the microorganisms, so it can kill all microorganisms within a certain heating time.
  • ModelLGP Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

2 Advantages Of LABOAO Drying Oven/Incubator(Dual-use)

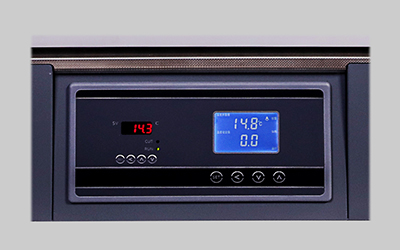

LGP Series Laboratory Dry Oven & Incubator Dual-use Box detail - Multi-function control panel
1. Multi-function control panel

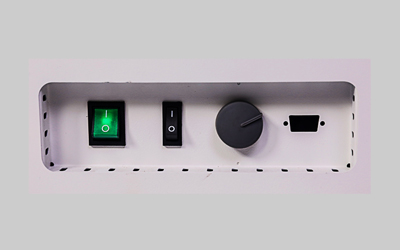

LGP Series Laboratory Dry Oven & Incubator Dual-use Box detail - Multi-function button settings
2. Multi-function button settings


DESCRIPTION

The culture/drying (dual-use) box has the characteristics of high quality, reliability and safety, and the cover is used for air forced convection. Widely applicable to universities, research and production units.

FEATURES

1. High precision, high efficiency, safety, wide range

2. Vertical double duct air sleeve

3. Convenient operation, constant value operation, regular operation and automatic stop

4. Special function key to realize temperature setting

5. Auxiliary menu, realize over rising alarm, deviation correction and menu locking

6. Forced air supply by centrifugal turbine makes the temperature more uniform

7. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan <50 ℃, long-term and long-life operation

8. Speed-regulating fan enables the use of light, small and powdery samples

SPECIFICATIONS

Model

LGP-30B/

LGP-30BE

LGP-45B/

LGP-45BE

LGP-65B/

LGP-65BE

LGP-125B/

LGP-125BE

Mode

Double duct   forced convection

Performance

Temperature   control range

Dry oven:RT+5-80; incubator:80-250

Temperature   resolution

0.1

Constant   temperature fluctuation

Dry oven:±0.5  ; incubator:±1

Temperature   uniformity

Dry oven:±1  ;   incubator:±2.5%

Constitute

Interior   Material

stainless steel


Exterior   Material

Cold rolled   steel sheet, surface coating


Thermal   insulation material

Polyurethane


Heater

Stainless steel   heating pipe


Rated power Dry   oven

0.8kw

1.2kw

1.6kw

2.3kw


Rated power   incubator

0.3kw

0.3kw

0.4kw

0.6kw


Exhaust vent

Inner diameter   28mm*1, located at the top

Controller

Temperature   control mode

B: Digital tube   dual-row PID;   BE: LCD

Temperature   setting mode

Touch four-button   setting

Temperature   representation

Measuring   temperature display: Four-digit digital upper display; Setting temperature   display:Four-digit digital lower display

Measuring   temperature display: LCD upper position; Setting temperature display: LCD   bottom position

Timer

0~9999min (with   timing waiting function)

Operation   function

fixed value   operation, timing operation, automatic stop

Program mode

Optional

Additional   functions

Deviation   correction, menu key locking, power failure compensation, power failure   memory BE:Overrise preventer

Sensor

Pt100

Safety device

Overload   protection, BE:Overrise preventer

Specifications

Internal   dimensions (mm)

310*310*310

350*350*350

400*360*450

500*450*550

External   Dimensions (mm)

445*487*671

485*527*722

534*538*822

634*628*922

Package size

560*560*830

600*600*857

670*620*960

760*700*1060

Internal volume

30L

45L

65L

125L

Diaphragm   bearing

15kg

Number of   shelves

6

7

9

13

Shelf spacing

35mm

Rated current

AC220V/3.6A

AC220V/5.5A

AC220V/7.2A

AC220V/10.5A

Net / gross   weight

37/32

37/43

43/49

60/66

Accessories

Partition frame

4

Shelf

2

Configuration   can be increased

Shelf, RS485   interface, printer, recorder, external communication, remote control, Program   temperature controller, wireless SMS alarm, U disk data storage
