It mainly destroys the cell protoplasts by oxidation and kills the microorganisms, so it can kill all microorganisms within a certain heating time.
  • ModelLGP-DLT Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

3 Advantages Of LABOAO Drying Oven/Incubator(Dual-use)

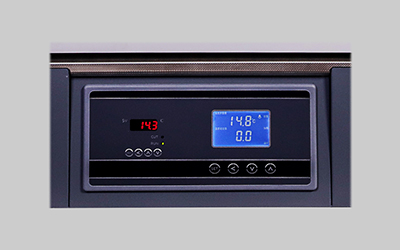

LGP-DLT Series Laboratory Dry Oven & Incubator Dual-use Box For University detail - Multi-function control panel
1. Multi-function control panel

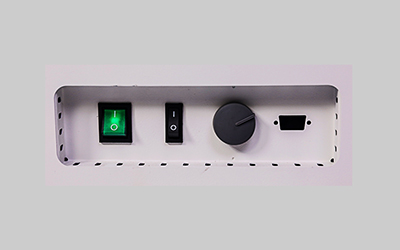

LGP-DLT Series Laboratory Dry Oven & Incubator Dual-use Box For University detail - Multi-function button settings
2. Multi-function button settings

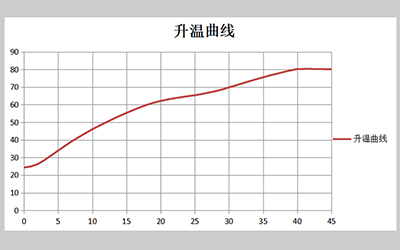

LGP-DLT Series Laboratory Dry Oven & Incubator Dual-use Box For University detail - Heating curve
3. Heating curve


DESCRIPTION

The culture/drying (dual-use) box has the characteristics of high quality, reliability and safety, and the cover is used for air forced convection. Widely applicable to universities, research and production units.

FEATURES

1. High precision, high efficiency, safety, wide range

2. Vertical double duct air sleeve

3. Convenient operation, constant value operation, regular operation and automatic stop

4. Special function key to realize temperature setting

5. Auxiliary menu, realize over rising alarm, deviation correction and menu locking

6. Forced air supply by centrifugal turbine makes the temperature more uniform

7. Forced fan cooling air intake structure, so that the maximum operating temperature of the fan <50 ℃, long-term and long-life operation

8. Speed-regulating fan enables the use of light, small and powdery samples

9. Insulated door technology, the outer door has low temperature and does not deform when used under high temperature conditions

10. Pull-out tray partition design scheme, convenient and quick to take samples

SPECIFICATIONS

Model

Digital Liquid

LGP30D

LGP45D

LGP65D

LGP85D

LGP125D

LGP230D

Crystal type

LGP30L

LGP45L

LGP65L

LGP85L

LGP125L

LGP230L

Touch screen   type

LGP30T

LGP45T

LGP65T

LGP85T

LGP125T

LGP230T

Internal   circulation method

Dry   oven:RT+10-80;   incubator:RT+80-250

Performance

Temperature   control range

0.1

Temperature   resolution

Dry oven:±0.5  ; incubator:±1

Constant temperature   fluctuation

Dry   oven:±1%  ; incubator:±2.5%

Constitute

Interior   Material

stainless steel

Exterior   Material

Cold rolled   steel sheet, surface coating

Thermal   insulation material

Aluminum   silicate fiber

Heater

Stainless steel heating   pipe

Nickel-chromium   alloy heating wire

Rated power Dry   oven

0.8kw

1.2kw

1.6kw

1.8kw

2.3kw

3.0kw

Rated power   incubator

0.3kw

0.3kw

0.4kw

0.6kw

0.6kw

0.7kw

Exhaust vent

Inner diameter   28mm*1, located at the top

Controller

Temperature   control mode

D: Digital tube   dual-row PID; L: LCD dual-row PID; T: 5-inch color touch screen fuzzy PID

Temperature   setting mode

D/L: Touch   four-button setting and touch screen input setting; T: touch screen setting

Temperature representation

T:Measurement   temperature display:Upper display on touch screen, set temperature   display:lower display on touch screen

D: Measurement   temperature display: 4-digit upper display; set temperature display: 4-digit   lower display

L: Measurement   temperature display: LCD upper display; set temperature display: LCD lower   display

Timer

0~9999min (with   timing waiting function)

Operation   function

fixed value   operation, timing operation, automatic stop

Program mode

D/L is optional,   T single-stage temperature control and program temperature control can be   interchanged, 50 experimental programs can be stored, each program can be set   with 50 steps, and each step can be set for 0-6000 minutes, adjustable

Additional functions

Deviation   correction, menu key locking, power failure compensation, power failure   memory( L,T:

Safety device

Sensor

Pt100

Specifications


Over rise alarm   ,type D optional,LT standard

Internal   dimensions (mm)

310*310*310

350*350*350

400*360*450

450*450*450

500*450*550

600*500*750

External   Dimensions (mm)

428*505*710

468*538*753

518*550*860

567*640*853

617*639*953

735*625*1220

Package size

552*578*840

592*618*880

642*628*980

692*718*980

742*718*1080

898*814*1347

Internal volume

30L

45L

65L

85L

125L

230L

Diaphragm   bearing

15kg

Number of   shelves

5

6

8

8

11

17

Shelf spacing

40mm

Rated current

AC220V/3.6A

AC220V/5.5A

AC220V/7.2A

AC220V/8.2A

AC220V/10.5A

AC220V/13.6A

Configuration   can be increased


Shelf, RS485   interface, printer, recorder, external communication, remote control, Program   temperature controller, wireless SMS alarm, U disk data storage
