6 Advantages Of LABOAO Automatic Lifting Rotary Evaporator

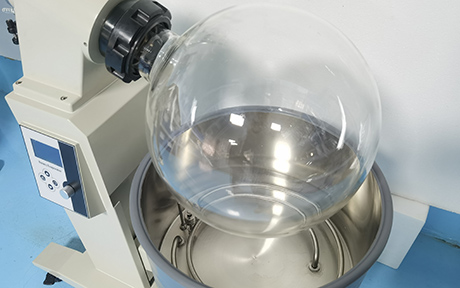

1. Heating bath, with lifting automatically.

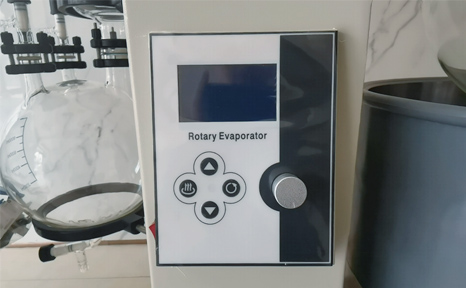

2. Controller, digital display for temperature and speed.

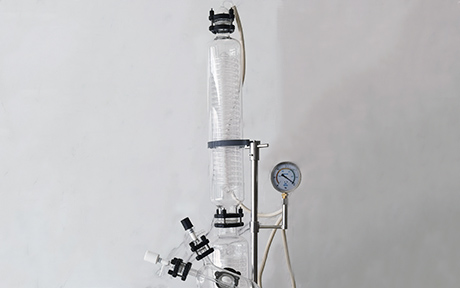

3. Main and vice condenser, increase high surface area.

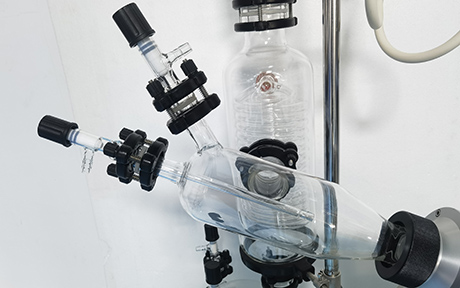

4. Feeding tank with tube.

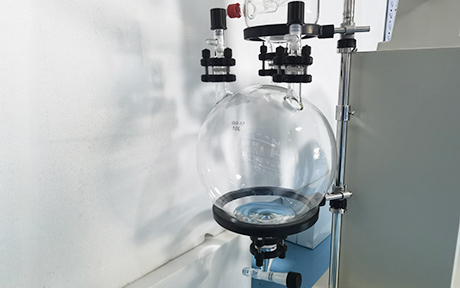

5. Receiving flask with discharge valve and air release valve.
6. Oil vacuum meter, anti-vibration during operation.
Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.
1. The main body of the use of stainless steel + aluminum alloy, reasonable structure, materials stress.
2. Glass parts are all high borosilicate glass (GG-17), high temperature, anti-corrosion.
3. Sealing system imported fluorine rubber and Teflon two-way combination of sealed, corrosion-resistant long life, to maintain high vacuum.
5. Vertical three-tier serpentine coil condenser, the main cold + cold dual condenser to ensure high recovery rate.
6. Can be continuous feeding for customers to use, valve-type feeding valve sets of tetrafluoroethylene tube.
7. Collection of bottles with a discharge material to facilitate the evaporation of the collection of extract, discharge.
8. Check valve control, continuous discharge, the machine in the working state, can be vacuum switch.
9. All valves with the latest one hand wheel valve, good sealing, the operation is more simple and convenient
10. Microcomputer power switch control.
11. LCD full screen display, temperature, speed double digital display, bath pot thermostat control, PT100 sensor fast and accurate delivery temperature.
12. DC brushless motor, rotating stability, no spark, slow increase force.
13. Bath electric lift, lift part of the use of slowdown power motor, lifting process more smoothly.
14. pot gallbladder with high quality 304 stainless steel, corrosion and durable, pot gallbladder outer layer of silicone layer, high temperature use more secure.
15. Over-temperature safety protection function, when the actual temperature exceeds the set temperature of 5 ℃, the machine will automatically turn off the power.
16. anti-dry function, heating pot water level below the heating pipe, the machine will automatically power off.
17. If the machine is suddenly powered off and the power is turned on again, the machine will automatically stop heating.
Rotary flask volume
20L,Φ355mm/Φ95 Flange port
Receiving flask volume
10L,Φ280mm/ upper with Φ60 *Φ35 flange port*2*down with Φ50 flange port
room temperature -180℃
Flask lifting distance
The main condensor Φ130*700H(mm) upper with Φ60 flange port * down with Φ80 flange port The assisted condensor Φ160*530H(mm) upper with Φ80 flange port* down with Φ60 flange port*side with Φ60 flange port
Air guide bottle
Left with Φ35 flange，upper with Φ35flange，side with Φ60 flange，right with Φ60 flange
