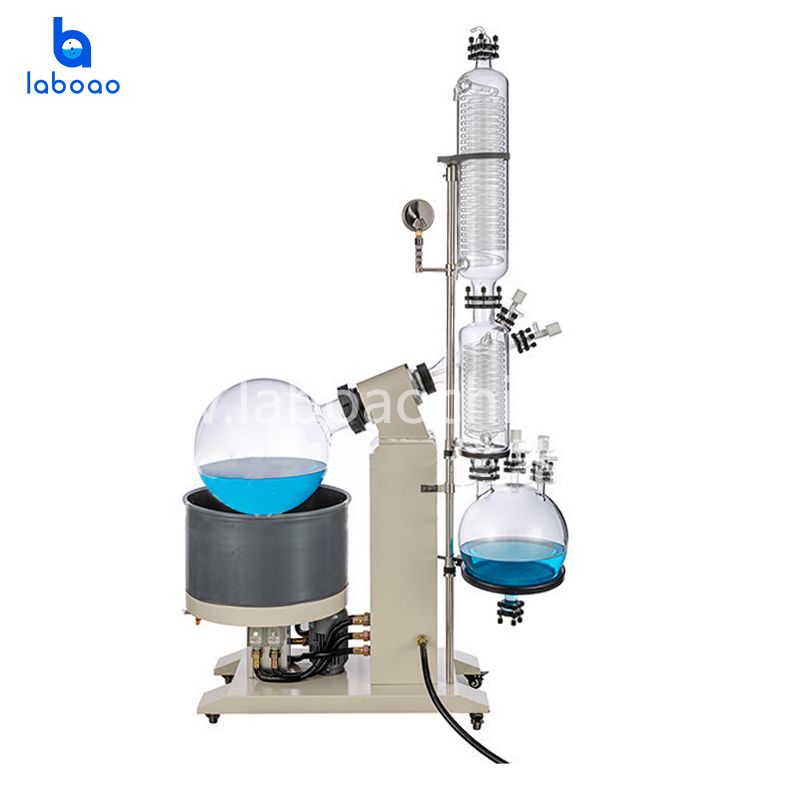

10L-50L Explosion Proof Auto Lifting Rotary Evaporator

The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries.
  • ModelLRE-10EX/LRE-20EX/LRE-50EX
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

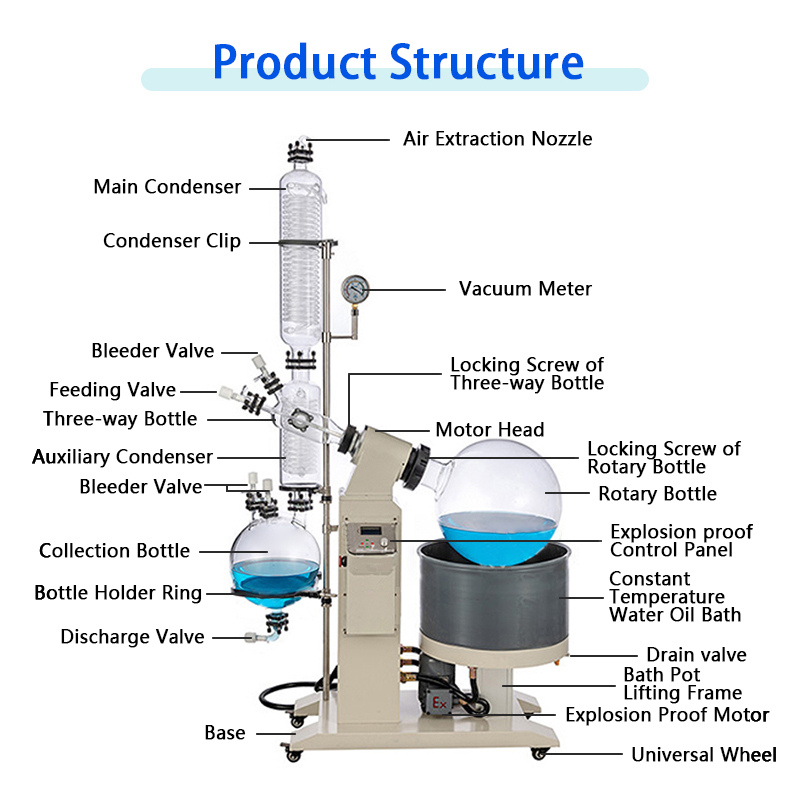

The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries. The principle is to heat the rotating bottle at a constant speed under vacuum conditions, and the material forms a large-area film on the bottle wall, which evaporates efficiently. The solvent vapor is cooled by a high-efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency. It is especially suitable for the concentration and purification of biological products that are easily decomposed and denatured at high temperature.

FEATURES

1. All of the high boric silicon glass (expansion coefficient 3.3) and PTFE material are all used in contact with the material contact portion, and the performance is stable, and it is not easy to chemically react with materials.

2. The main bracket uses cold plate anti-corrosion spray + aluminum alloy material, and has strong anti-corrosion characteristics. Pot bile adopts stainless steel quality, compact structure, durable, beautiful appearance;

3. The sealing system uses the PTFE + fluoro rubber combination seal to maintain high vacuum;

4. Oil-based vacuum pressure gauge displays real-time vacuum degree, pointer type;

5. The piston feeding valve sleeve piratifores lengthen tubes, which can be continuously fed to evaporation bottles in a vacuum state, which is convenient for customers.

6. Vertical three-layer serpentine coil condenser, main condenser + double secondary condenser, to ensure high recovery rate;

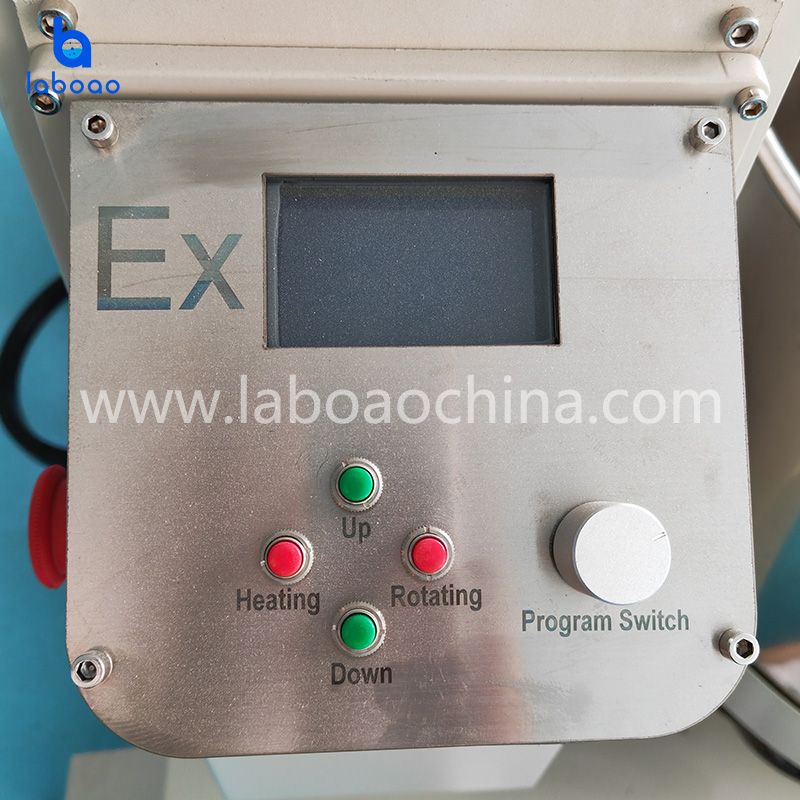

7. The large LCD screen controls rotation, heating and lifting at the same time. Convenient operation, large viewing angle, clear viewing;

8. Brushless deceleration booster motor, no spark, low noise;

9. The bath pot is electric lifted, and the outside is equipped with a silicone cover, heat insulation and anti-scalding;

10. Rotating and heating double fuses have high protection performance;

11. The collection bottle has a discharge port and is connected to a glass + PTFE discharge valve, so that the solution can be recovered quickly;

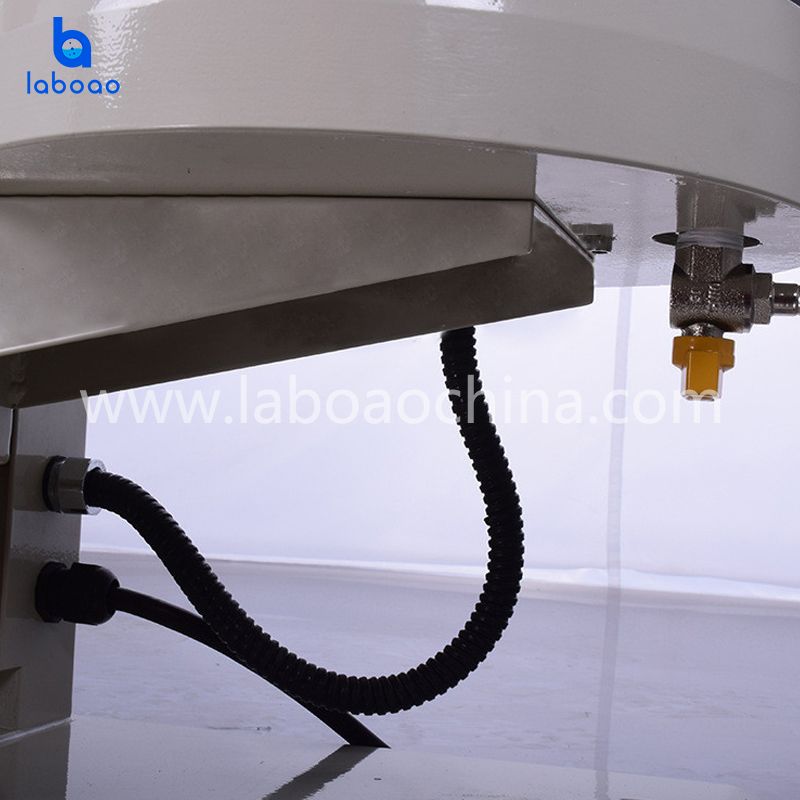

12. There is a water drain valve at the bottom of the bath, which is convenient for draining liquid;

13. Vacuum switching valve can continuously collect and discharge materials without affecting the system vacuum and solution distillation;

14. Over-temperature protection function: When the actual temperature exceeds the set temperature by 5°C, the machine will automatically cut off the heating, and the maintenance is simple and reliable;

15. Anti-dry function: When the water level in the heating pot is lower than the heating tube, the machine will automatically cut off the power;

16. If there is a sudden power failure when the machine is working, when the power is restored again, the machine will automatically stop heating, saving energy and reducing consumption

17. Electric explosion-proof, variable frequency speed aluminum shell explosion-proof, control plate aluminum shell explosion-proof, cable wear explosion pipe.

SPECIFICATIONS

Model

LRE-10EX

LRE-20EX

LRE-50EX

Voltage/Frequency

220V/50HZ

220V/50HZ

220V/50HZ

Whole power

3180W

5180W

6780W

Rotary power

60W 1/5

60W 1/5

100W 1/5

Lifting power

EX120W

EX120W

EX180W

Heating power

3000W

5000W

6500W

Vacuum degree

0.0095Mpa

0.0095Mpa

0.0095Mpa

Rotary flask volume

10L,Φ280mm/Φ95 flange port

20L,Φ355mm/Φ95 flange port

50L,Φ470mm/Φ125 flange port

Receiving flask volume

5L,Φ230mm/ upper with Φ60 flange port *Φ35 flange port *2   *down Φ50flange port flange port

10L,Φ280mm/ upper with Φ60 flange port *Φ35 flange port *2   *down Φ50flange port flange port

20L,Φ355mm/ upper with Φ60 flange port *Φ35 flange port *2   *down Φ50flange port flange port

Rotary speed

0-120rpm/min

0-120rpm/min

0-120rpm/min

Temp.cotrolling range

room temperature -180

room temperature -180

room temperature -180

Temp. accuracy

±1

±1

±1

Flask lifting distance

190mm

150mm

215mm

Condenser size

The main condensor Φ120*620H(mm) , upper with Φ60 flange prot   * down with Φ80 flange
  The assisted condensor Φ135*475H(mm) ,upper with Φ80 flange port*down with   Φ60 flange port * side with Φ60 flange port

The main condensor Φ130*700H(mm) , upper with Φ60 flange port   * down with Φ80 flange port
  The assisted condensor Φ160*530H(mm), upper with Φ80 flange port* down with   Φ60 flange port* side with Φ60 flange port

The main condensor Φ160*835H(mm) , upper with Φ60 flange   port* down with Φ80 flange port
  The assisted condensor Φ160*530H(mm) ,upper with Φ80 flange port * down with   Φ60 flange port* side with Φ60 flange port

Condensation area

0.51(0.33+0.18)

0.94(0.46+0.48)

1.44(0.95+0.49)

Air guide bottle

Left with Φ35 flange portupper with Φ35 flange portside with Φ60 flange portright with Φ60 flange port

Left with Φ35 flange portupper with Φ35 flange portside with Φ60 flange portright with Φ60 flange port

Left with Φ35 flange portupper with Φ35 flange portside with Φ60 flange portright with Φ60 flange port

Charging valve

Φ35 flange port, glass+PTFE valve,  feed nozzle ( Pagoda-shape connectors),   outer diameter 12mm

Φ35 flange port, glass+PTFE valve,  feed nozzle ( Pagoda-shape connectors),   outer diameter 12mm

Φ35 flange port, glass+PTFE valve,  feed nozzle ( Pagoda-shape connectors),   outer diameter 12mm

Multi-function port

Φ35 flange port, glass+PTFE valve, glass nozzle (   Pagoda-shape connectors), outer diameter 12mm

Φ35 flange port, glass+PTFE valve, glass nozzle ( Pagoda-shape   connectors), outer diameter 12mm

Φ35 flange port, glass+PTFE valve, glass nozzle (   Pagoda-shape connectors), outer diameter 12mm

Vacuum suction nozzle

Φ60 flange glass exhaustor, suction nozzle (Pagoda-shape   connectors), outer diameter 10mm

Φ60 flange glass exhaustor, suction nozzle (Pagoda-shape   connectors), outer diameter 10mm

Φ60 flange glass exhaustor, suction nozzle (Pagoda-shape   connectors), outer diameter 10mm

Condensing coil in and out circuation nozzle

Pagoda-shape connectors, outer diameter 16mm

Pagoda-shape connectors, outer diameter 16mm

Pagoda-shape connectors, outer diameter 16mm

Vent valve

Φ35 flange port *2, glass+PTFE valve,  vent nozzle(Pagoda-shape connectors), outer   diameter 12mm

Φ35 flange port *2, glass+PTFE valve,  vent nozzle(Pagoda-shape connectors), outer   diameter 12mm

Φ35 flange port *2, glass+PTFE valve,  vent nozzle(Pagoda-shape connectors), outer   diameter 12mm

Baiting valve

Φ50 flange portSide discharging nozzle (pagoda-shape connectors), outer   diameter 20mm, 210 from the floor

Φ50 flange portSide discharging nozzle (pagoda-shape connectors), outer   diameter 20mm, 210 from the floor

Φ50 flange portSide discharging nozzle (pagoda-shape connectors), outer   diameter 20mm, 300 from the floor

Pot bravery size

Φ350*220H(mm)  about   21L

Φ450*560Hmm)  about 41L

Φ550*320Hmm)  about 76L

Overall dimensions (W*L*H)

1130*470*1940mm

1210*610*2170

1390*700*2300mm

Net weight

70kg

84kg

103kg

Packing dimensions

980*520*1190 ,0.61m³

1050*530*1210 , 0.68m³

1230*630*1420 , 1.1m³

Packing weight

107kg

116kg

148kg
