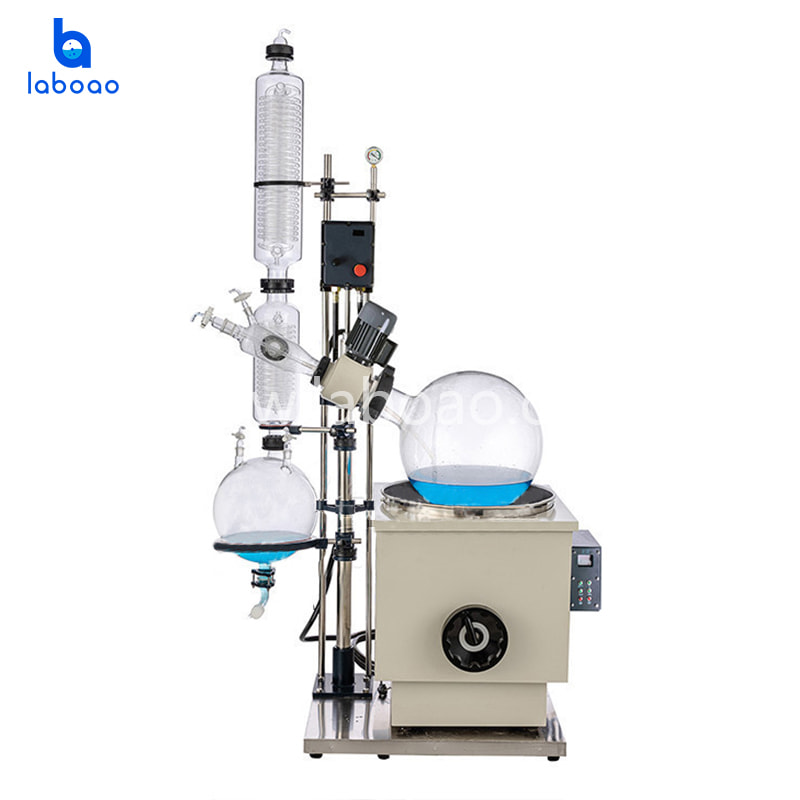

10L-50L Explosion Proof Rotary Evaporator

The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries.
  • ModelLRE-1002EX/LRE-2002EX/LRE-5002EX
  • BrandLABOAO
  • StockIn Stock
  • CustomizedOEM/ODM
  • CertificationCE
  • Min. Order1 unit
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries. The principle is to heat the rotating bottle at a constant speed under vacuum conditions, and the material forms a large-area film on the bottle wall, which evaporates efficiently. The solvent vapor is cooled by a high-efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency. It is especially suitable for the concentration and purification of biological products that are easily decomposed and denatured at high temperature.


FEATURES

1. All of the high boric silicon glass (expansion coefficient 3.3) and polytetrafluoride material are all used in contact with the material contact portion, and the performance is stable, and it is not easy to chemically react with materials.

2. The main bracket uses cold plate anti-corrosion spray + aluminum alloy material, and has strong anti-corrosion characteristics. Pot bile adopts stainless steel quality, compact structure, durable, beautiful appearance;

3. The sealing system uses the polytetrafluoroethylene + fluororubber combination seal to maintain high vacuum;

4. Vacuum pressure gauge display real-time vacuum, pointer display;

5. The piston feeding valve sleeve piratifores lengthen tubes, which can be continuously fed to evaporation bottles in a vacuum state, which is convenient for customers.

6. Integrated condenser, upright double-layer snake-shaped coil to ensure high recovery;

7. Variable frequency speed, explosion-proof switch. The knob is fine-tuning, the number of revolutions is displayed;

8. Constant temperature bath temperature digital display, K-type sensor + stainless steel probe, fast transmission temperature

9. Bath pot hand wheel rises, easy to operate;

10. Electric explosion-proof, variable frequency speed aluminum shell explosion-proof, control plate aluminum shell explosion-proof, cable wear explosion pipe.

SPECIFICATIONS

Model

LRE-1002EX

LRE-2002EX

LRE-5002EX

Voltage/Frequency

220V/50HZ

220V/50HZ

Rotation 220V/50HZ;    Heating pot 380V/50HZ

Whole power

3120W

5120W

8180W

Rotary power

EX120W

EX120W

EX180W

Heating power

3000W

5000W

8000W

Vacuum degree

0.0095Mpa

0.0095Mpa

0.0095Mpa

Rotary flask volume

10L Φ280mm/Φ95 flange port

20L Φ355mm/Φ95 flange port

50L Φ470mm/Φ125 flange port

Receiving flask volume

5L Φ230mm/ upper with Φ60 flange port*24# standard port* down   with Φ50 flange port

10L Φ280mm/ upper with Φ60 flange port *24# standard port*   down with Φ50 flange port

20L Φ355mm/ upper with Φ60 flange port *24# standard port*   down with tΦ50 flange port

Rotary speed

0-120rpm/min

0-120rpm/min

0-120rpm/min

Temp.cotrolling range

room temperature -180

room temperature -180

room temperature -180

Temp. accuracy

±1

±1

±1

Flask lifting distance

180mm

180mm

180mm

Condenser size

The main condensor Φ120*620H(mm) ,upper with Φ60 flange port*   down with Φ80 flange port
  The assisted condensor Φ135*475H(mm) , upper with  Φ80 standard port * down with Φ60 flange   port* side with Φ60 flange port

The main condensor Φ130*700H(mm) , upper with Φ60 flange   prot* down with Φ80 flange port
  The assited condensor Φ160*530H(mm) ,upper with Φ80 flange port * down with   Φ60 flange port* side with Φ60 flange port

The main condensor Φ160*835H(mm) ,upper with Φ60 flange port*   down with Φ80 flange port
  The assisted condensor Φ160*530H(mm) ,upper with Φ80 flange port* down with   Φ60 flange port*side with Φ60 flange port

Condensation area

0.51(0.33+0.18)

0.95(0.46+0.49)

1.44(0.95+0.49)

Air guide bottle

left with Φ34 standar port , upper with 19# standard port,   side with Φ60 flange port, right with Φ60 flange port

left with Φ34 standar port , upper with 19# standard port,   side with Φ60 flange port, right with Φ60 flange port

left with Φ40 standard port, upper with 19# standard port,   side with Φ60 flange port, right with Φ70 flange port

Charging valve

34# standard plug valve, feed nozzle ( Pagoda-shape   connectors), outer diameter 12mm

34# standard plug valve, feed nozzle ( Pagoda-shape   connectors), outer diameter 12mm

40# standard plug valve, feed nozzle ( Pagoda-shape   connectors), outer diameter 12mm

Multi-function port

19# standard plug valve, glass nozzle (Pagoda-shape   connectors), outer diameter 12mm

19# standard plug valve, glass nozzle (Pagoda-shape   connectors), outer diameter 12mm

19# standard plug valve, glass nozzle (Pagoda-shape   connectors), outer diameter 12mm

Vacuum suction nozzle

Φ60 flange glass exhaustor, suction nozzle (Pagoda-shape connectors),   outer diameter 10mm

Φ60 flange glass exhaustor, suction nozzle (Pagoda-shape   connectors), outer diameter 10mm

Φ60 flange glass exhaustor, suction nozzle (Pagoda-shape   connectors), outer diameter 10mm

Condensing coil in and out circuation nozzle

Pagoda-shape connectors, outer diameter 16mm

Pagoda-shape connectors, outer diameter 16mm

Pagoda-shape connectors, outer diameter 16mm

Vent valve

24# standard plug valve*2 vent nozzle(Pagoda-shape   connectors), outer diameter 12mm

24# standard plug valve*2 vent nozzle(Pagoda-shape   connectors), outer diameter 12mm

24# standard plug valve*2 vent nozzle(Pagoda-shape   connectors), outer diameter 12mm

Baiting valve

Φ50 flange portSide discharging nozzle (pagoda-shape connectors), outer   diameter 20mm, 200 from the floor

Φ50 flange portSide discharging nozzle (pagoda-shape connectors), outer   diameter 20mm, 200 from the floor

Φ50 flange portSide discharging nozzle (pagoda-shape connectors), outer   diameter 20mm, 320 from the floor

Pot bravery size

Φ350*220Hmm)  about 21L

Φ450*260Hmm)  about 41L

Φ550*320Hmm) about 76L

Overall dimensions (W*L*H)

930*560*1910mm

1000*600*2130mm

1330*730*2340mm

Net weight

83kg(52.5+30.5)

97kg(60.5+36.5)

128kg(85.5+42.5)

Packing dimensions

1320*780*755mm, 0.78m³

1350*670*720mm; 680*680*790mm,1.02m³

1420*820*720mm; 830*730*910mm,  1.39m³

Packing weight

116kg

143kg88+55

195kg(103+92)
