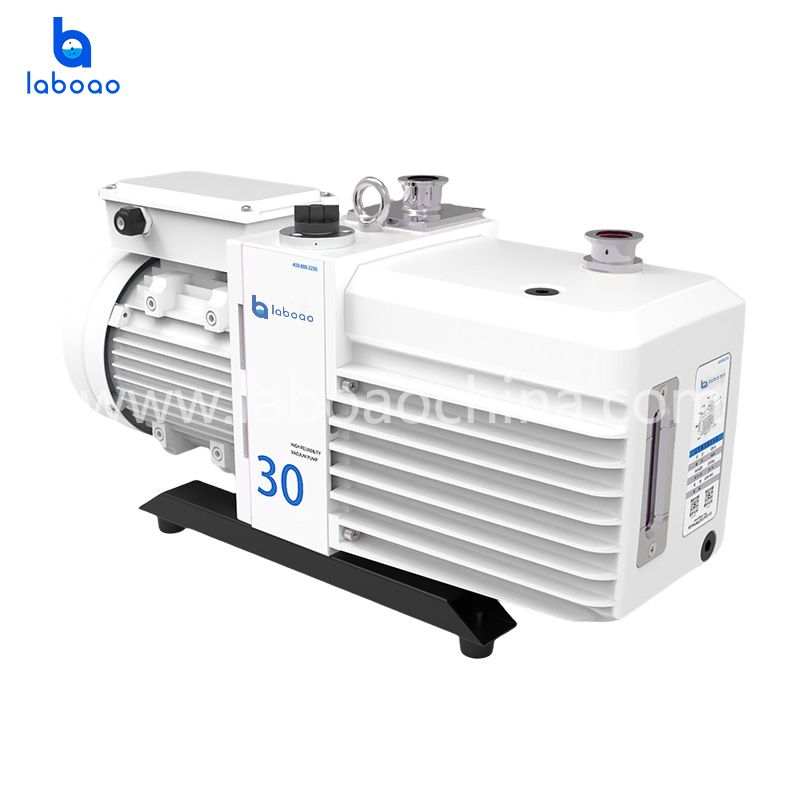

Two Stage Rotary Vane Corrosion Resistant Vacuum Pump

Two Stage Rotary Vane Corrosion Resistant Vacuum Pump

2024 September Sale ends in

The two stage rotary vane corrosion resistant vacuum pump is a basic device used to extract the gas in a specific sealed container to obtain a certain vacuum in the container. It has high vacuum degree and stable performance. It can be used alone or connected with ultra-high vacuum pumps such as booster pumps, diffusion pumps, molecular pumps, etc. as a fore-stage pump. It is widely used in electronic device manufacturing, vacuum drying, filtration, impregnation, coating, welding, smelting and laboratory equipment.

ModelLDV-C Series
BrandLABOAO
PortAny port in China
PackagePlywood case package

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

DESCRIPTION

The two stage rotary vane corrosion resistant vacuum pump is made of wear-resistant and corrosion-resistant materials for key components on the basis of the two-stage rotary vane vacuum pump. It can resist the erosion of corrosive media such as acids, alkalis, and salts. It also has the characteristics of high temperature resistance, high vacuum, and large exhaust volume. It can withstand long-term operation and wear, ensuring that the pump can still operate stably when facing corrosive gases. It is widely used in various industries, such as distillation, evaporation, drying and other process links in the chemical production process, to meet the requirements for vacuum and ensure the smooth progress of the production process.

Application area

Analysis (spectrometer, mass spectrometry, electron microscopy, etc.)

Coating technology (in the fields of surface protection, decorative layers, displays, screens, etc.)

Medical/pharmaceutical technology (plasma sterilization, freeze-drying)

Vacuum metallurgy (vacuum brazing, vacuum sintering, vacuum alloying, furnace manufacturing)

Leak detection technology (vacuum equipment, car fuel tank, airbag box, packaging)

Research equipment (elementary particle physics, fusion research, laser applications)

Lighting industry (lamp manufacturing)

Pre stage pump used (as Roots pump, molecular pump, vacuum system maintenance)

FEATURES

1. Automatic anti-oil return valve. Double anti-oil-return structure and automatic anti-oil-return valve protect your vacuum system more reliably from oil contamination after shutdown.

2. ntegral cylinder structure with higher precision and proven rotary vane technology for more stable performance.

3. Adjustable gas ballast, multi-speed gas ballast design to meet customer's vacuum requirement and water vapor handling capacity

4. Gear pump forced lubrication, built-in gear pump and constant pressure oil supply mechanism forced oil supply, high suction pressure can also be stable and reliable operation.

5. High vacuum degree: It can achieve a higher vacuum degree and is suitable for occasions with high vacuum requirements.

6. Fast pumping speed: It has a faster pumping speed and can quickly extract the gas in the container.

7. Stable operation: It adopts a bipolar rotary vane structure, which runs smoothly, has low noise and low vibration.

8. Easy to maintain: It has a simple structure, is easy to maintain and maintain, and has a long service life.

9. Wide range of applications: It can be used for various vacuum equipment, such as vacuum coating, vacuum drying, vacuum distillation, etc.

SPECIFICATIONS

Model		LDV-4C	LDV-8C	LDV-16C	LDV-24C	LDV-30C	LDV-48C	LDV-65C	LDV-90C
Pull speed	50Hz	4m³/h	8m³/h	16m³/h	24m³/h	30m³/h	48m³/h	65m³/h	90m³/h
Pull speed	60Hz	4.8m³/h	9.6m³/h	19.2m³/h	28.8m³/h	36m³/h	57.6m³/h	78m³/h	108m³/h
Guanqi Town Extreme Limit Pressure		4x10^-2Pa	4x10^-2Pa	4x10^-2Pa	4x10^-2Pa	4x10²Pa	4x10^-2Pa	4x10^-2Pa	4x10^-2Pa
Guanqi Town Extreme - Limit Full Pressure		4x10^-1 Pa	4x10^-1Pa	4x10^-1Pa	4x10^-1Pa	4x10^-1Pa	4x10^-1Pa	4x10^-1Pa	4x10^-1Pa
Open the gas to limit the full pressure		10Pa	10Pa	8Pa	8Pa	3Pa	3Pa	3Pa	3Pa
Motor speed	50Hz	1440r/min
Motor speed	60Hz	1720 r/min
Motor power single-phase/three-phase		0.4/0.37kW	0.4/0.37kW	0.75/0.55 kW	1.1kW	1.1kW	1.5kW	2.2kW	3kW
Protection level		IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54
Air intake and exhaust interface		KF16/25	KF16/25	KF25	KF25/40	KF25/40	KF40	KF40	KF40
Oil quantity		0.6-1.0L	0.6-1.0L	0.9-1.5L	1.3-2.0L	1.3-2.0L	3.3-4.5L	3.3-4.5L	3.3-4.5L
Working environment temperature		10-40℃	10-40℃	10-40℃	10-40℃	10-40℃	10-40℃	10-40℃	10-40℃
Noise		≤53dB	≤53dB	≤58dB	≤58dB	≤58dB	≤62dB	≤62dB	≤65dB
Weight		19kg	21kg	30kg	35kg	43kg	62kg	65kg	68kg
Size (L * W * H)		440x144x217 mm	440x144x217 mm	530x188x272 mm	567x188x272 mm	567x188x272 mm	730x234x358 mm	730x234x358 mm	730x234x358 mm
