Advanced Open Type 1200°C Vacuum Atmosphere Tube Furnace

Provide a vacuum, controlled atmosphere and high temperature experimental environment, applied in semiconductor, nanotechnology, fiber and other fields.
  • ModelLTF-1200
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

4 Advantages Of LABOAO Vacuum Atmosphere Tube Furnace

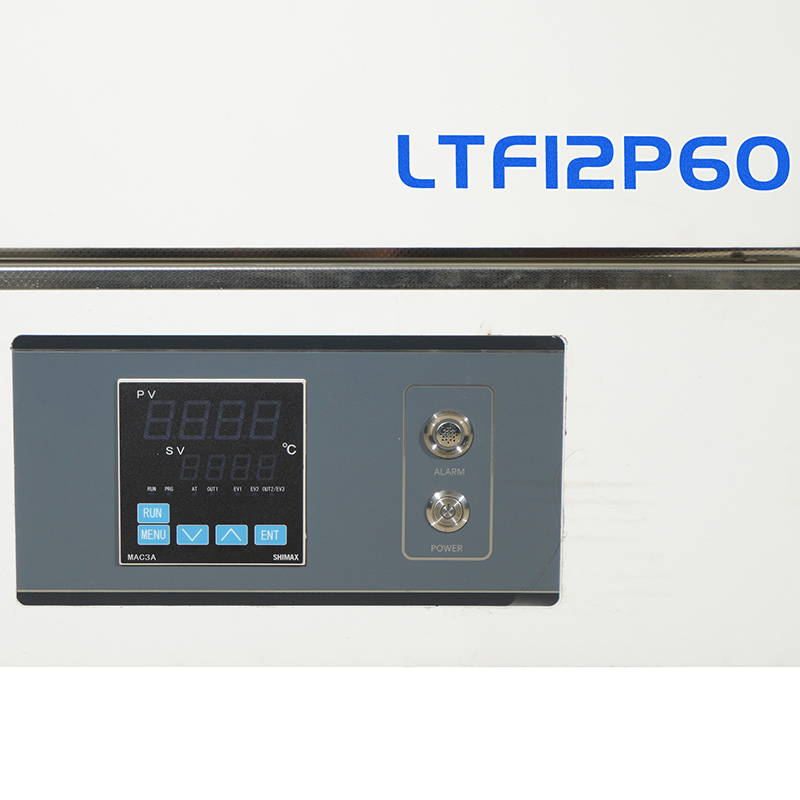

Advanced Open Type 1200°C Vacuum Atmosphere Tube Furnace detail - Slightly touch five buttons, double row LED digital display.
1. Slightly touch five buttons, double row LED digital display.

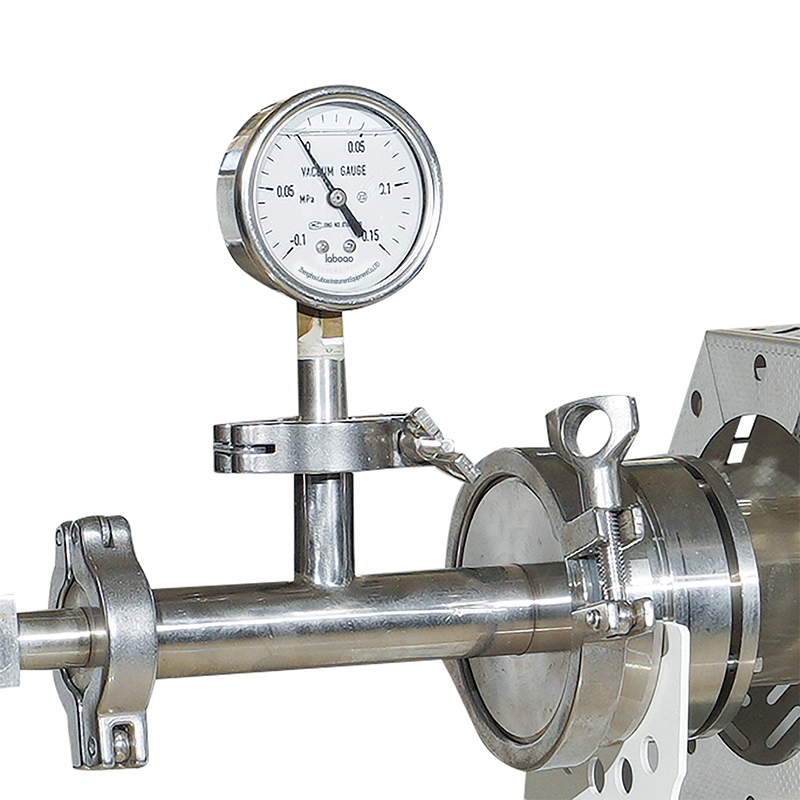

Advanced Open Type 1200°C Vacuum Atmosphere Tube Furnace detail - Intake valve, air route made of 316 stainless steel.
2. Intake valve, air route made of 316 stainless steel.

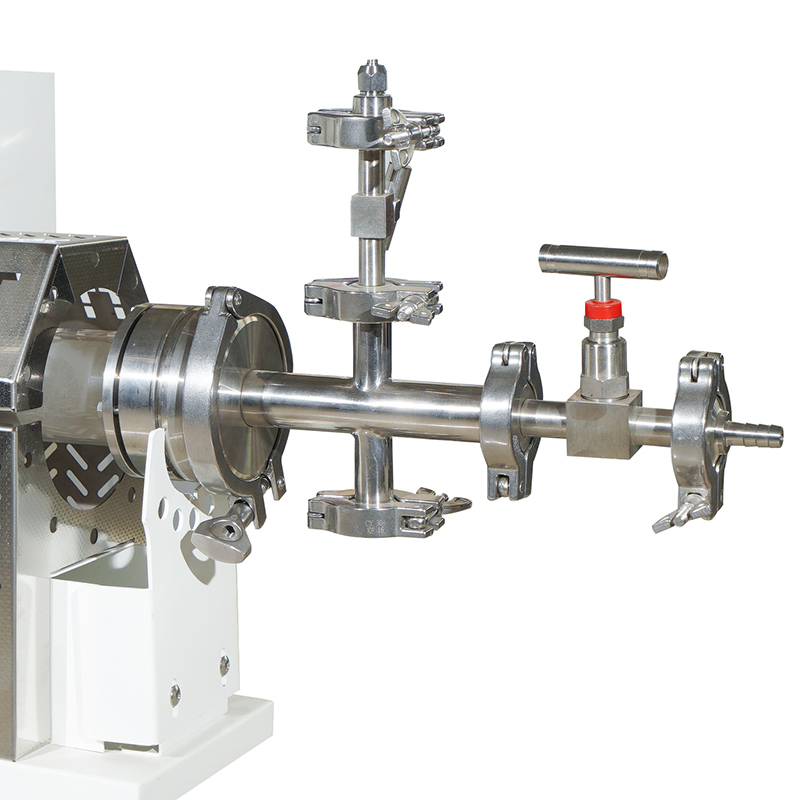

Advanced Open Type 1200°C Vacuum Atmosphere Tube Furnace detail - Intake valve, air route made of 316 stainless steel.
3. Intake valve, air route made of 316 stainless steel.

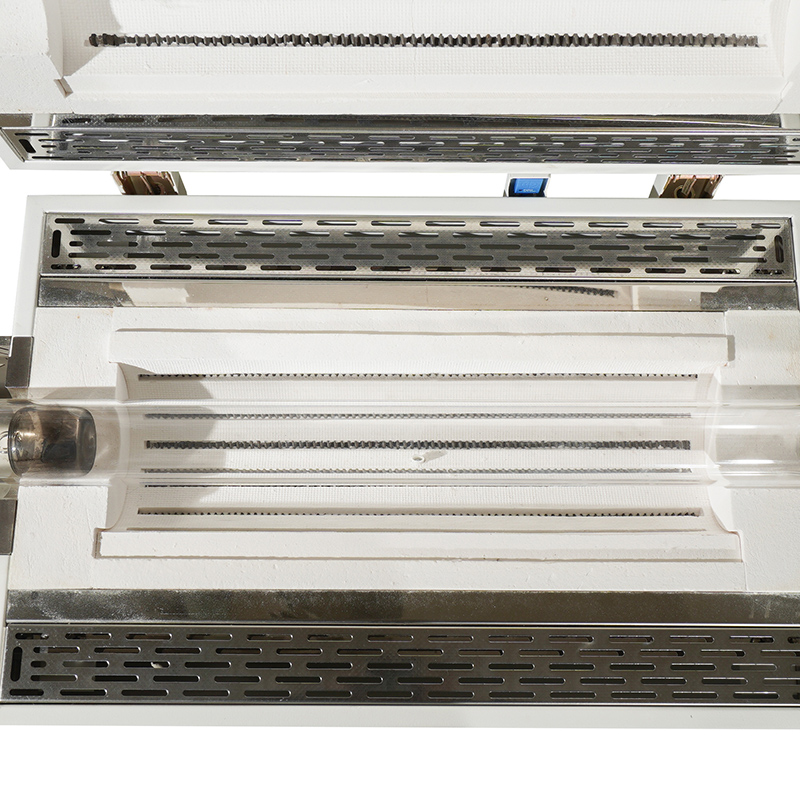

Advanced Open Type 1200°C Vacuum Atmosphere Tube Furnace detail - Inner of the furnace, furnace tube material, quartz tube, heater, 0Cr27AI7Mo2.
4. Inner of the furnace, furnace tube material, quartz tube, heater, 0Cr27AI7Mo2.


DESCRIPTION

Vacuum or atmosphere tube furnace provide a vacuum, controlled atmosphere and high temperature experimental environment, applied in semiconductor, nanotechnology, fiber and other fields.

FEATURES

1. Quick connection flange structure is adopted for gas path connection, which is convenient for loading and unloading, and can be completed with only one clamp.

2. The furnace is divided into upper and lower parts. The upper part of the furnace can be turned back 1000, which is convenient for taking, placing and observing materials.

3. The furnace is made of polycrystalline mullite fiber by vacuum adsorption, with uniform temperature field and energy saving of more than 50%.

4. Independently developed air diversion heat insulation technology ensures the service life and constant temperature effect of all parts in the box.

5. Start the electric furnace, and the exhaust fan will run automatically at the same time. After the test, the exhaust fan will continue to run until the temperature of the furnace body is lower than 60 ℃, and the exhaust fan will stop automatically, effectively protecting the surface of the furnace body.

6. Automatic power-off, overtemperature protection and leakage protection when the furnace door is opened to ensure the safety of use.

7. Imported program temperature control system, 4 curves, programmable 40 segment program temperature control, touch screen is large screen, built-in 50 formulas and 50 programs, formula name can be set by users, formula can be added, deleted and transferred at will.

8. The circuit adopts continuous heating output mode, double circuit power supply, strong and weak current wiring separately, which improves the stability of the system.

9. The heating module adopts DC signal to adjust the output power, so as to avoid the interference of induction current to the control signal

10. Low pressure metal button with status indicator is selected for operation.The operation is safe and intuitive.

11. The upper and lower furnace bodies are connected by aviation plug, which is safe, reliable and convenient

12. The gas circuit assembly is made of 316 stainless steel of food grade, with corrosion resistance, atmospheric corrosion resistance, high temperature resistance, good strength and no magnetism.

SPECIFICATIONS

Model

LTF12P50

LTF12T50

LTF12P60

LTF12T60

LTF12P80

LTF12T80

LTF12P100

LTF12T100

LTF12P50S

LTF12T50S

LTF12P60S

LTF12T60S

LTF12P80S

LTF12T80S

LTF12P100S

LTF12T100S

Temp. Range

300~1200

Temp. Resolution

1℃

Temp. Uniformity

±1℃

Heating rate

0-20 ℃ / min

heating zone

420mm length

Constant   temp. zone

Single zone:210   mm length /Double zone:280mm

Maximum   vacuum

- 0.1MPa

Heating time   of empty furnace

15min; Below500℃≤5/min,500~800℃≤10/min,800-1000℃≤5/min,1000~1200℃≤2/min

Shell

cold rolled   steel plate, surface temperature treatment

Chamber   materials

polycrystalline   mullite fiber

Chamber size

External   dimension: φ 240 * 550mm inner size: φ 120*420mm

Tube

quartz tube

Tube size

Φ50/43

*1000

Φ50/43

*1000

Φ60/53

*1000

Φ60/53

*1000

Φ80/72

*1000

Φ80/72

*1000

Φ100/92

*1000

Φ100/92

*1000

Thermal   insulation layer

double-layer   forced wind diversion

Heating   element

Ni Cr Al   alloy wire OCr27AL7Mo2

Heating   Power

Single   zone:3kw /Double zone:3.2kw

Open Mode

flip back   (about 100 degrees)

Controller

P:Imported   program controlled temperature digital display; T:Seven inch color touch   screen program temperature control

Control Mode

Microcomputer   PID control /S type Separate temp control in double heating zone

Setting Mode

P: Slightly   touch five buttons, digital setting mode; T: Touch setting mode

Display Mode

P:Double row   LED digital display; T: Color LCD display

Timing

0~999.9   hours

Operation   Function

Set value   run, program run

Program mode

P:Program   operation, four curves, a total of 40 steps; T:Maximum 50 steps, adjustable   storage program

Sensor

K-type   thermocouple

Auxiliary   Function

P:correction   function; T: correction function, Real-time curve recording, U disk data   export

Safety   Device

over current   and leakage protection switch

Dimensions

1531*440*600(mm)

Package size

1120*580*945(mm)

Weight

85kg

Power Supply

AC220V 50Hz

Standard   Configuration

A set of gas   circuit assembly (including vacuum gauge),A pair of high temperature gloves. 1   quartz tube, 2 quartz plugs, 2 quartz boats, 1 hook
