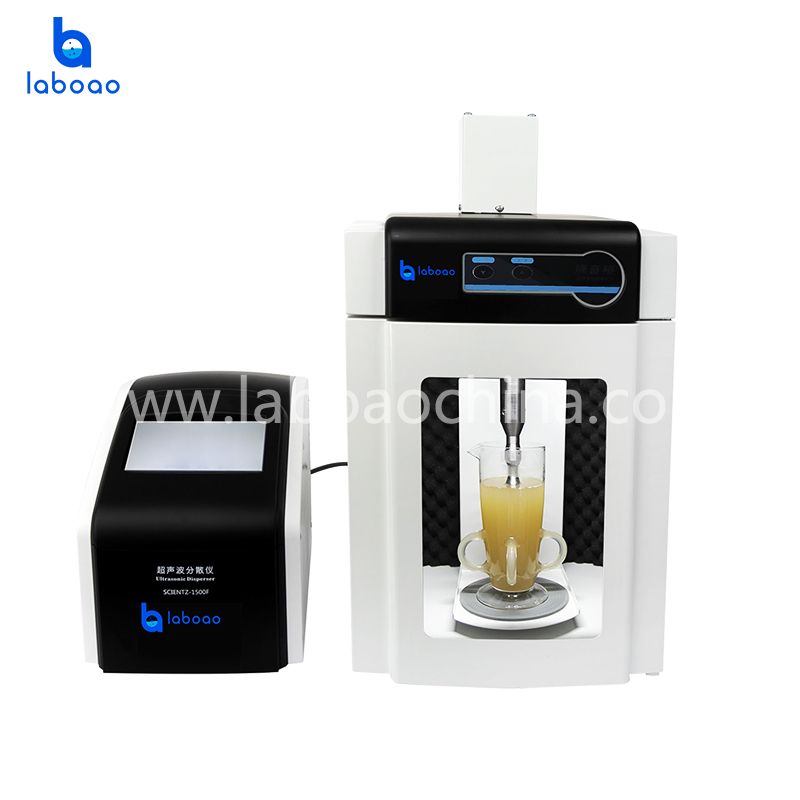

Ultrasonic Material Emulsifying Disperser Machine For Lab
Ultrasonic disperser is an ultrasonic processing equipment specially developed for material dispersion, which has the characteristics of strong power output and good dispersion effect.
- ModelLUD-F Series
- BrandLABOAO
- PortAny port in China
- PackagePlywood case package
FEATURES
1. Adopt new software and centralized control by central microcomputer
2. Backlight and LCD Large Screen Display
3. The ultrasonic power stepping is continuously and finely adjustable at 1%
4. With pulse and continuous operation and testing function
5. The ultrasonic time, gap time and total time can be accurate to 0.1 second
SPECIFICATIONS
Model | LUD-750F | LUD-1500F | LUD-2400F |
Power adjustable range | 1500W（20%-99%） | 2400W（20%-99%） | |
Dispersed capacity | 5-700ml | 50-1200ml | 100-2000ml |
Display Mode | LCD Display | ||
Random dispersion head | 10mm | 18mm | 25mm |
Alarm | Temperature, overload, time | ||
Frequency | 19.5-20.5KHz | ||
Duty ratio | 0.1-99.9% | ||
Power chassis size | 400*280*220mm | ||
Temperature alarm | Yes | ||
Standard configuration | One mainframe, one dispersing head and one sound isolating box | ||
