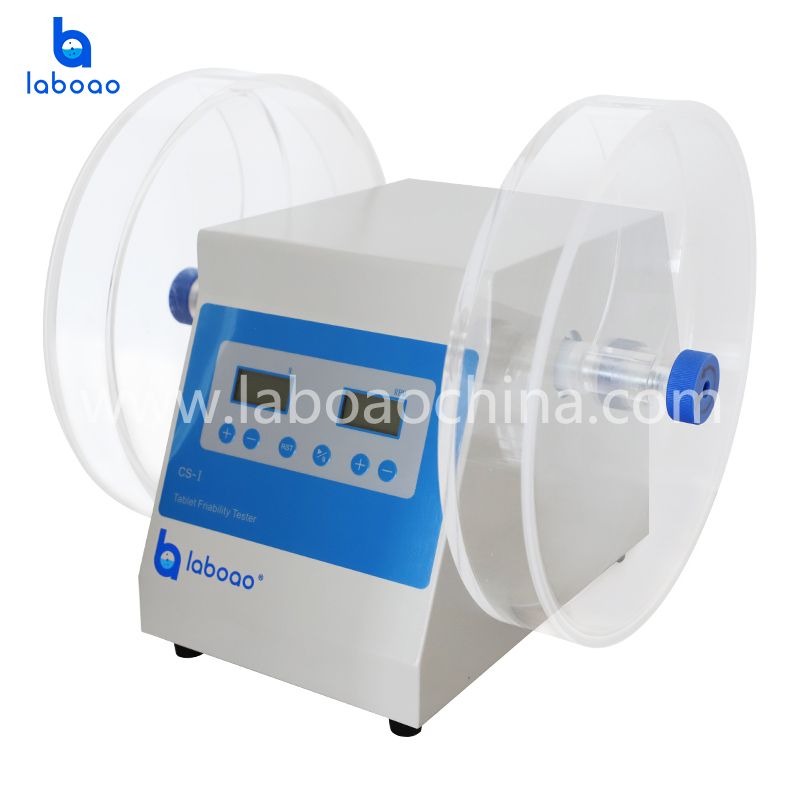

CS-1 tablet friability tester

8% OFF Discount ends in

Give a $100 coupon(only for the next order, valid for one year)

Friability testing is used to test the durability of tablets during packing processes and transit. This involves repeatedly dropping a sample of tablets over a fixed time, using a rotating drum with a baffle. The result is inspected for broken tablets, and the percentage of tablet mass lost through chipping.
  • BrandLABOAO
  • ModelCS-1
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

DESCRIPTION

CS series of instruments are used for detecting friability/ abrasion of tablet.



Applicable standards:

National standard (Chinese codex) / 2015

 Industry standard (Tablet friability tester)

FEATURES

1. Two drums run synchronously. Auto stop at timing point.

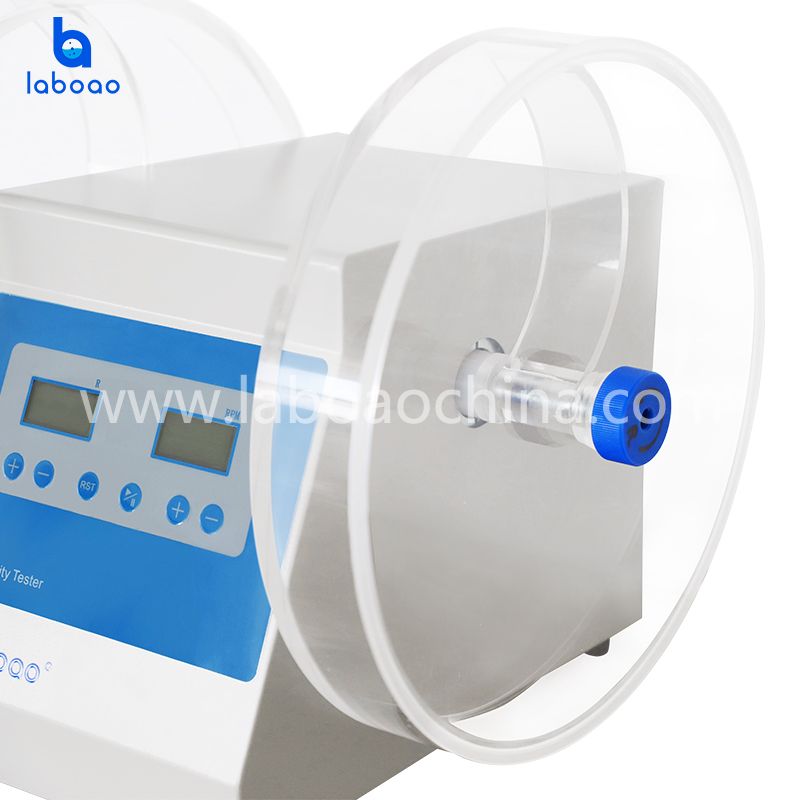

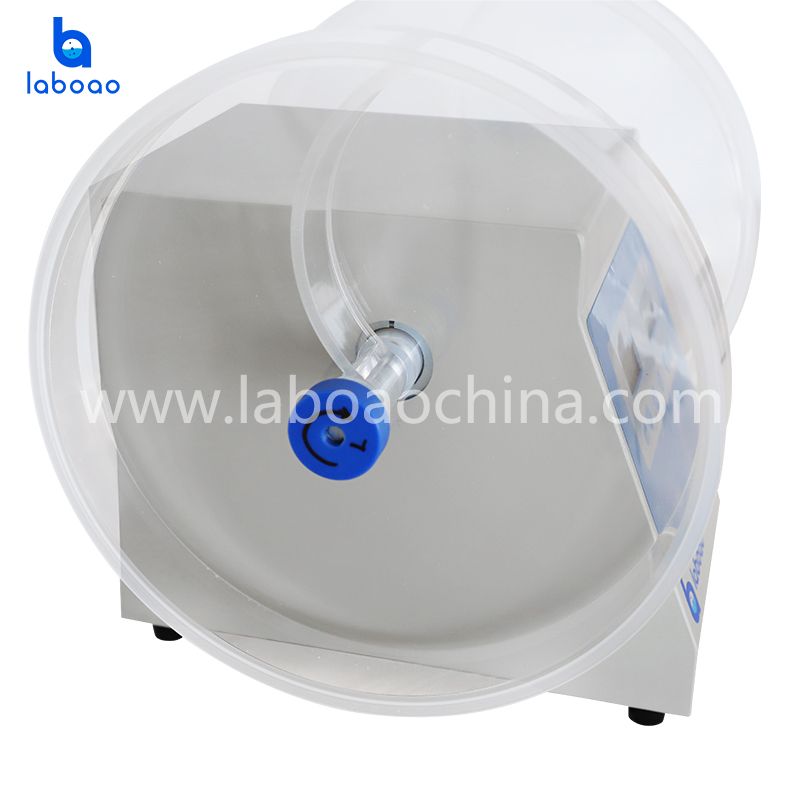

2. The drum is made of high quality hyaline acryl.

3. The speed and revolution of the drum can be preset at any time, either preset or real data is displayed on the LED.

4. A MPU is used to control all operations, high accuracy is achieved in testing rotary speed and circle number.

5. Automation: auto-test, auto-diagnose, auto-alarm.

SPECIFICATIONS

Cylinder number

2

Cylinder radius

Φ286mm

Cylinder depth

39mm

Tablet fall   height

156mm

Rotation speed

 (20-90)rpm

Rotation Speed   accuracy

±1rpm

Rotation count

(10900)r

Rotation count   accuracy

±1r

Power

220V/ 50Hz/ 60W or   110V/ 60Hz/ 60W

Dimension

 360×300×340mm
