LGX Series Hot Air Sterilization Box

The use of high temperature and dry heat has the effects of oxidation and protein denaturation on microorganisms, and poisoning caused by dielectric concentration.
  • ModelLGX Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

4 Advantages Of LABOAO Sterilizing Oven

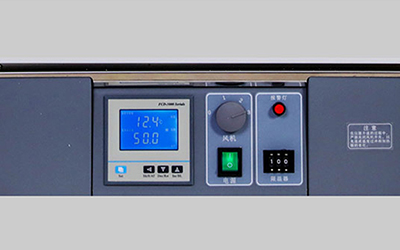

LGX Series Hot Air Sterilization Box detail - Multi-function control panel
1. Multi-function control panel

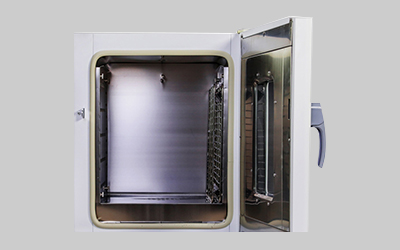

LGX Series Hot Air Sterilization Box detail - Insulated safety door
2. Insulated safety door

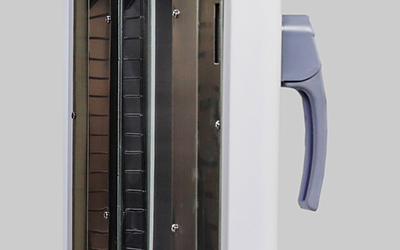

LGX Series Hot Air Sterilization Box detail - Multifunctional safety lock
3. Multifunctional safety lock

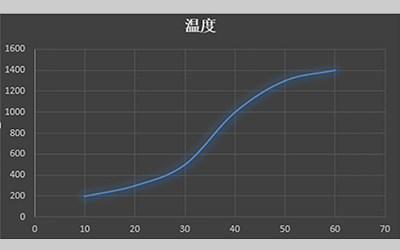

LGX Series Hot Air Sterilization Box detail - Heating curve
4. Heating curve


DESCRIPTION

This equipment mainly destroys cell protoplasm through oxidation and causes the death of microorganisms, so all microorganisms can be killed within a certain heating time.

FEATURES

1. Rapid, safe and reliable sterilization.

2. Convenient operation, fixed value operation, timing operation and automatic stop.

3. Dedicated function keys realize temperature setting.

4. Auxiliary menu, realize over-rise alarm, deviation correction, and menu lock.

5. Vertical double air duct air jacket, turbo centrifugal forced air supply, more uniform temperature.

6. Forced fan cooling air intake structure, so that the maximum working temperature of the fan is less than 50℃, and it can run for a long time and long life.

7. Patent number: ZL201230310211.7/201320059701.3

8. LCD multi-data full-screen operation display, power failure memory, power failure compensation

9. Over-rise prevention

SPECIFICATIONS

Model

LGX30B/LGX30BE

LGX45B/LGX45BE

LGX65B/LGX65BE

LGX125B/LGX125BE

Method

double air duct forced convection

Performance

Operating temperature range

RT+10-300

Temperature resolution

0.1

Temperature fluctuation

±1

Temperature distribution accuracy

±2.5

Composition

Interior

stainless steel

Exterior

cold-rolled steel plate, surface   chemical-resistant coating

Thermal insulation material

aluminum silicate fiber

Heater

stainless steel heating tube

Rated power

0.8kw

1.2kw

1.6kw

2.3kw

Exhaust port

inner diameter 28mm*1, top

Controller

Temperature control mode

B Type: digital tube dual-row PID
  BE Type: LCD dual-column PID

Temperature setting method

touch four buttons to set

Temperature display method

B Type: measured temperature display:   4-digit digital upper display; set temperature display: 4-digit digital lower   display
  BE Type: measured temperature display: LCD upper display; set temperature   display: LCD lower display

Timer

0-9999 minutes (with timing waiting   function)

Operation function

fixed value running, timing running,   automatic stop

Program mode

optional

Additional functions

deviation correction, menu button lock,   power failure compensation, power failure memory, speed control fanBE   Type: over-rise preventer)

Sensor

Pt100

Safety device

over-rise alarm (BE Type: over-rise   preventer)

Specifications

Internal dimensions (W * D * H)(MM)

310*310*310

350*350*350

400*360*450

500*450*550

External dimensions (W * D * H)(MM)

445*487*671

485*527*722

534*538*822

634*628*922

Outer packaging size (W * D * H)(MM)

560*560*830

600*600*857

670*620*960

760*700*1060

Inner volume

30L

45L

65L

125L

Shelf load-bearing capacity

15 kg

Number of clapboard layers

6

7

9

13

Space between partitions

35mm

Power supply (50/60Hz) rated current

AC220V/3.6A

AC220V/5.5A

AC220V/7.2A

AC220V/10.5A

Net weight/Gross weight

37/32kg

37/43kg

43/49kg

60/66kg

Accessories

Partitions

2 pieces

Partition shelf

4 pieces

Configurations can be added(BE Type)

partition, RS485 interface, printer,   recorder, external communication, remote control, program temperature   controller, unlimited SMS alarm, U disk data storage.
