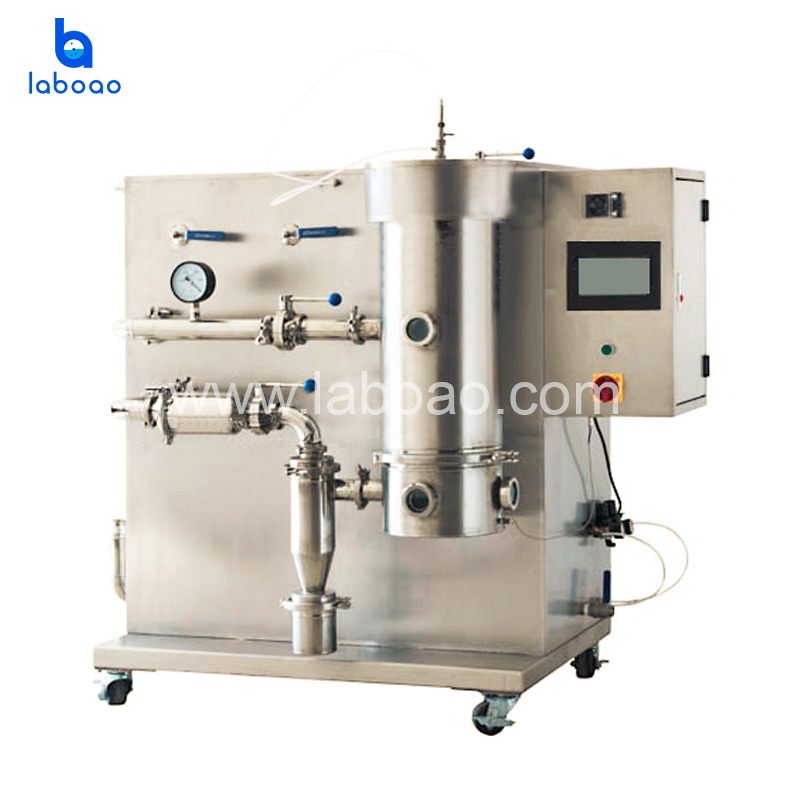

Vacuum Spray Freeze Drying Machine
Vacuum Spray Freeze Drying Machine

Vacuum Spray Freeze Drying Machine

Spray-freeze-drying (SFD) is an unconventional freeze drying technique that produces uniquely powdered products whilst still including the benefits of conventionally freeze dried products.
  • ModelSFD-3000
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat



SFD-3000 laboratory freeze spray dryer is suitable for low temperature drying of heat sensitive, viscous, active materials and materials with high sugar content, such as Chinese herbal medicine natural product extract, dairy products, biological preparations, enzyme preparations, fruit juice, Polymer materials, etc.



1. SFD-3000 experimental type freeze spray dryer combines spray drying and vacuum freeze-drying organically. The required drying time is extremely short, which greatly shortens the traditional vacuum freeze-drying time and the dried materials. As a powdery solid, the original biological and chemical properties of the frozen-dried articles are basically unchanged, easy to preserve for a long time, and can be restored to the form before lyophilization after adding water, and can maintain its original biochemical characteristics;

2. This machine adopts air-cooled condensing type totally enclosed compressor refrigeration system, with rapid cooling, low temperature of icing device, strong ability to absorb water, and temperature and vacuum display are all digital, accurate and intuitive;

3. The frozen spray-dried article is naturally sublimated by air to maintain the safety of the sample;

4, the main machine is equipped with a vacuum pump power plug, no need to connect another power supply, easy to use;

5. Vacuum connection adopts international common standard clamp, which is convenient and reliable;

6. stable performance, easy operation, low noise;

7. Fast freezing spray drying Compared with traditional freeze-drying machine: it can quickly freeze-dry (liquid juice, traditional Chinese medicine extract, etc.) on liquid materials with easy-to-stick wall and organic matter, and the finished product in dry state is in a granular state with good fluidity. The particle size can be adjusted within a certain range.






LCD touch screen

Display data

Drying chamber temp., peristaltic pump   speed, fan frequency, needle frequency, drying chamber pressure



Spray freezing temp.


Trap temp.


Vacuum pump power


Vacuum pressure

<20Pa   (No load)

Spraying pressure

2-5BAR   (adjustable)

Compressor air flow volume


Cool air volume







  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of small spray dryer machine.
laboao certification


We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory


Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping


Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

laboao customer cases


Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
