Stainless Steel Wiped Film Molecular Distillation
Stainless Steel Wiped Film Molecular Distillation

Stainless Steel Wiped Film Molecular Distillation

Wiped Film/Molecular distillation is the best thermal separation method for heat-sensitive material because it is the gentlest type, causing the least amount of thermal degradation of product. Our wiped film evaporation and distillation system are widely used for plant oil, garlic oil, cod liver oil and chemical and pharmaceutical industries. Shorter residence time, lower separation temperature, capability of continuous and unattended operation makes wiped film molecular (short path) evaporation and distillation system standing out.
  • ModelLSMD Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

6 Advantages Of LABOAO Molecular Distillation System

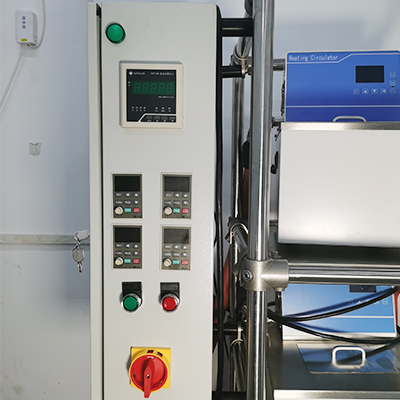

Stainless Steel Wiped Film Molecular Distillation detail - The control box controls the oil pump, the main evaporation chamber, automatic feeding, automatic discharging, imported materials, durable
1. The control box controls the oil pump, the main evaporation chamber, automatic feeding, automatic discharging, imported materials, durable

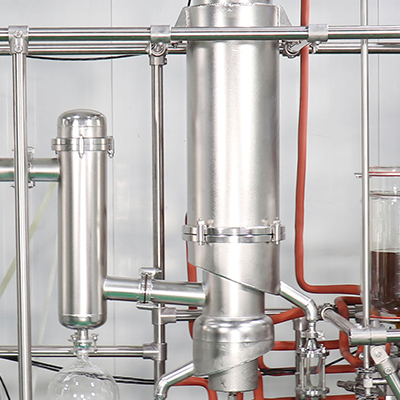

Stainless Steel Wiped Film Molecular Distillation detail - Main evaporator, SUS material, better thermal conductivity, good evaporation effect and not easy damage
2. Main evaporator, SUS material, better thermal conductivity, good evaporation effect and not easy damage

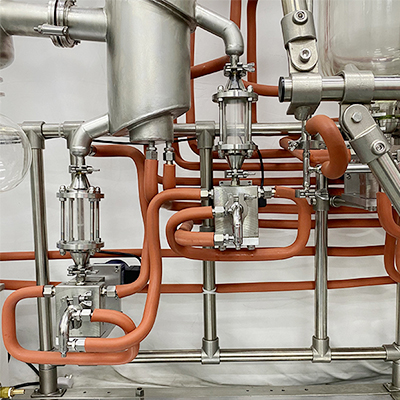

Stainless Steel Wiped Film Molecular Distillation detail - The use of gear pumps to drive automatic feeding and automatic discharging, for small pilot-level molecular distillation, to increase productivity
3. The use of gear pumps to drive automatic feeding and automatic discharging, for small pilot-level molecular distillation, to increase productivity

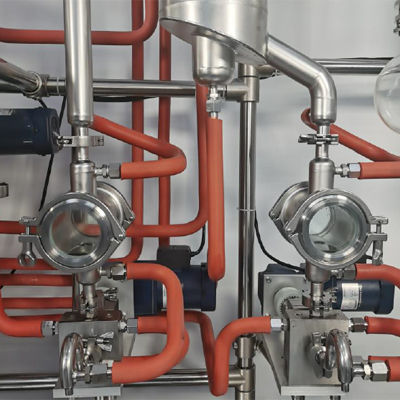

Stainless Steel Wiped Film Molecular Distillation detail - Automatic light component and heavy component discharging and external condenser + cold trap with window for easy observation
4. Automatic light component and heavy component discharging and external condenser + cold trap with window for easy observation

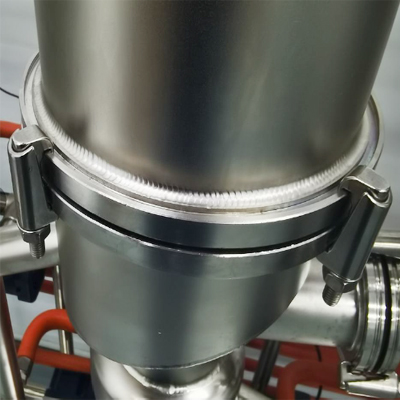

Stainless Steel Wiped Film Molecular Distillation detail - Using swing welding process, fish-scale welding point, in line with Japan and Germany welding process
5. Using swing welding process, fish-scale welding point, in line with Japan and Germany welding process

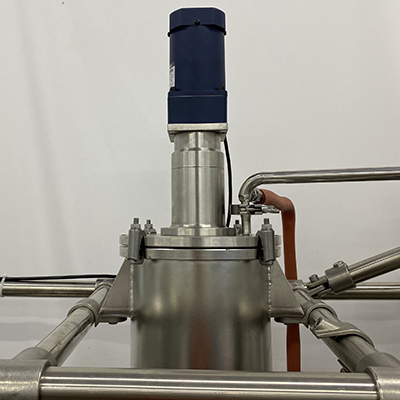

Stainless Steel Wiped Film Molecular Distillation detail - Magnetic seal, high vacuum special seal, the ultimate vacuum can be within 1Pa(Conventional glass reactors use mechanical seals, which cannot reach the ultimate vacuum).
6. Magnetic seal, high vacuum special seal, the ultimate vacuum can be within 1Pa(Conventional glass reactors use mechanical seals, which cannot reach the ultimate vacuum).

DESCRIPTION

Molecular distillation is a special liquid-liquid separation equipment. Unlike traditional distillation, it relies on the boiling point difference separation principle, but on the difference of the average free path of different substances. When the liquid mixture flows along the inner wall of the main evaporator and is heated, light and heavy molecules will escape from the liquid level and enter the gas phase. Due to the different free paths of light and heavy molecules, the molecules of different substances move different distances after escaping from the liquid level. After passing through the built-in condensate pipe of the main evaporator, the light molecules reach the condensate pipe and are discharged, while the heavy molecules cannot reach the condensate pipe and are discharged along the mixed liquid, So as to achieve the purpose of material separation.


Working Principle

The materials are transported from the feed tank to the jacketed main evaporator. The main evaporator is continuously heated. The built-in scraper evenly scrapes the materials into a layer of flowing liquid film for instant evaporation. The light component materials begin to vaporize and adsorb on the built-in condensing coil, flow into the receiving bottle along the outer wall of the condensing pipe, and the heavy component materials flow into the receiving bottle along the inner wall of the main evaporator.


Application



Extraction of deep sea fish oil


Extraction of CBD oil


Pharmaceuticals


Concentration of plant essential oil


Separation of vitamin / nutritional   essential oil


Chemical Research

FEATURES

1. Modularized design for flexible options

2. Continuous feeding & collection modules design, saving labor cost and working time

3. Fully jacketed design, wide applications for different materials

4. SUS316L stainless steel, safe and reliable

5. Sight glass and quick connect design, easy to disassemble and clean

6. The unique design of the plate heating method can better heat and keep the materials and protect the materials from being oxidized.

7. Gear pump automatic feeding, stable speed, long service life, no air leakage

SPECIFICATIONS

Model

LSMD-0.1

LSMD-0.15

LSMD-0.25

LSMD-0.35

LSMD-0.5

LSMD-1

LSMD-1.5

LSMD-2

LSMD-3

LSMD-5

Condenser   area ()

0.17

0.3

0.4

0.7

1.7

2.7

3.5

4.9

6.5

8

Effective   evaporation area ()

0.1

0.15

0.25

0.35

0.5

1

1.5

2

3

5

Feeding rate   (LH)

5~12

6~15

10~25

15~30

20~60

50~120

60~180

100~200

100 ~300

200 ~500

RPM (r/min)

30~350

Stainless   steel material

304/316

Feeding   method

Gear pump   automatic continuous feeding

Discharge   method

Gear pump   automatic continuous discharge

Work   temperature

Within 350

Voltage

200V 50Hz (can   be customized)
